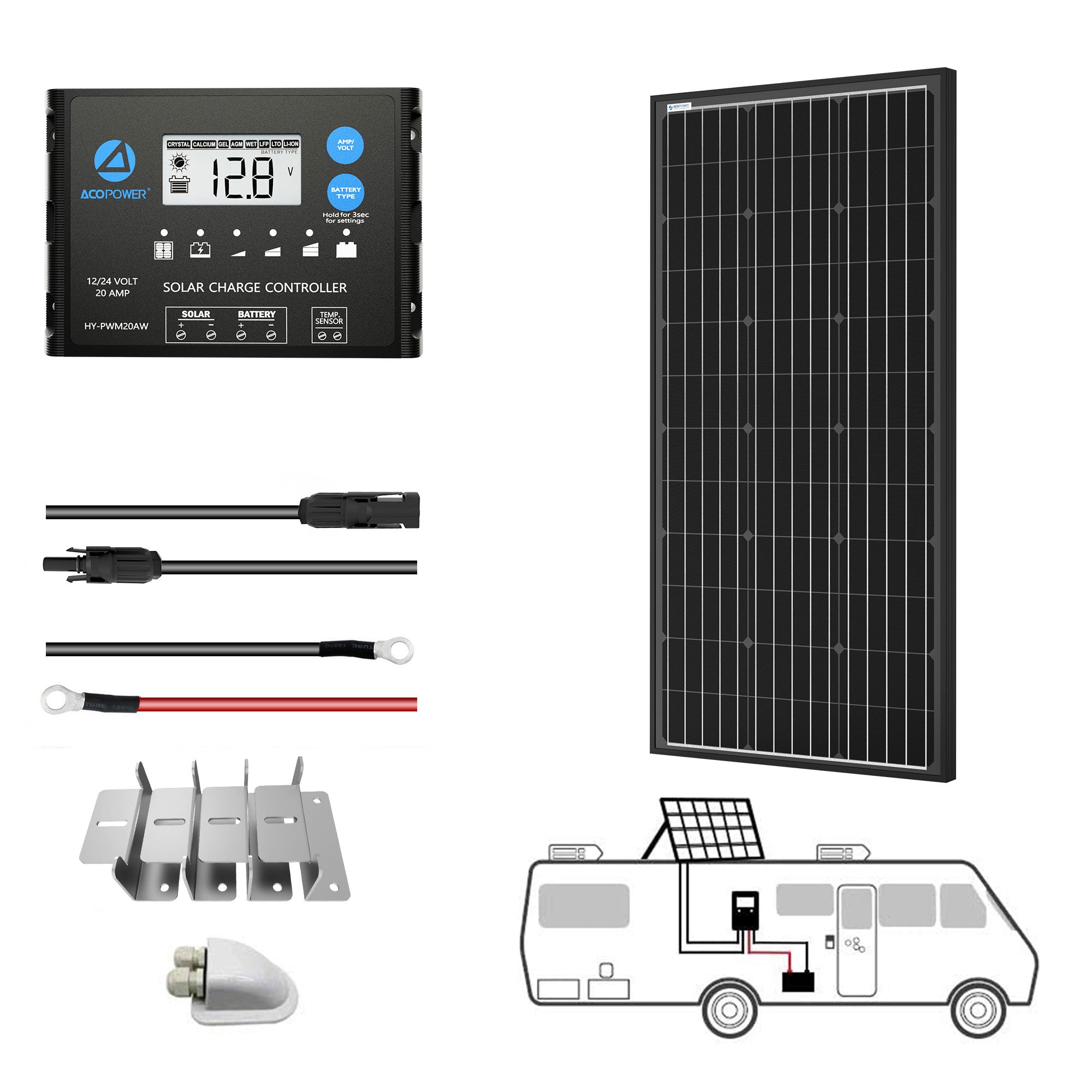

ACOPOWER Mono Solar RV Kits + MPPT / PWM Charge Controller
Choose options
DESCRIPTION
KEY FEATURES

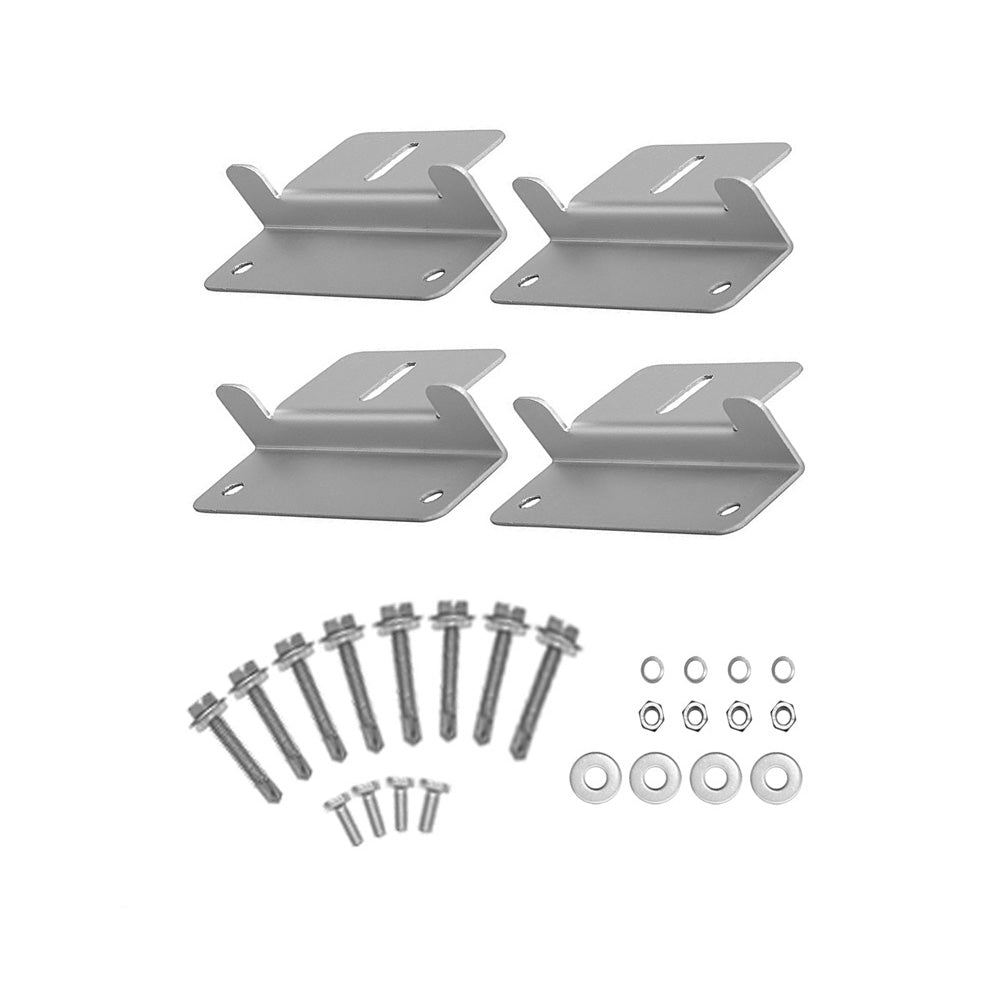

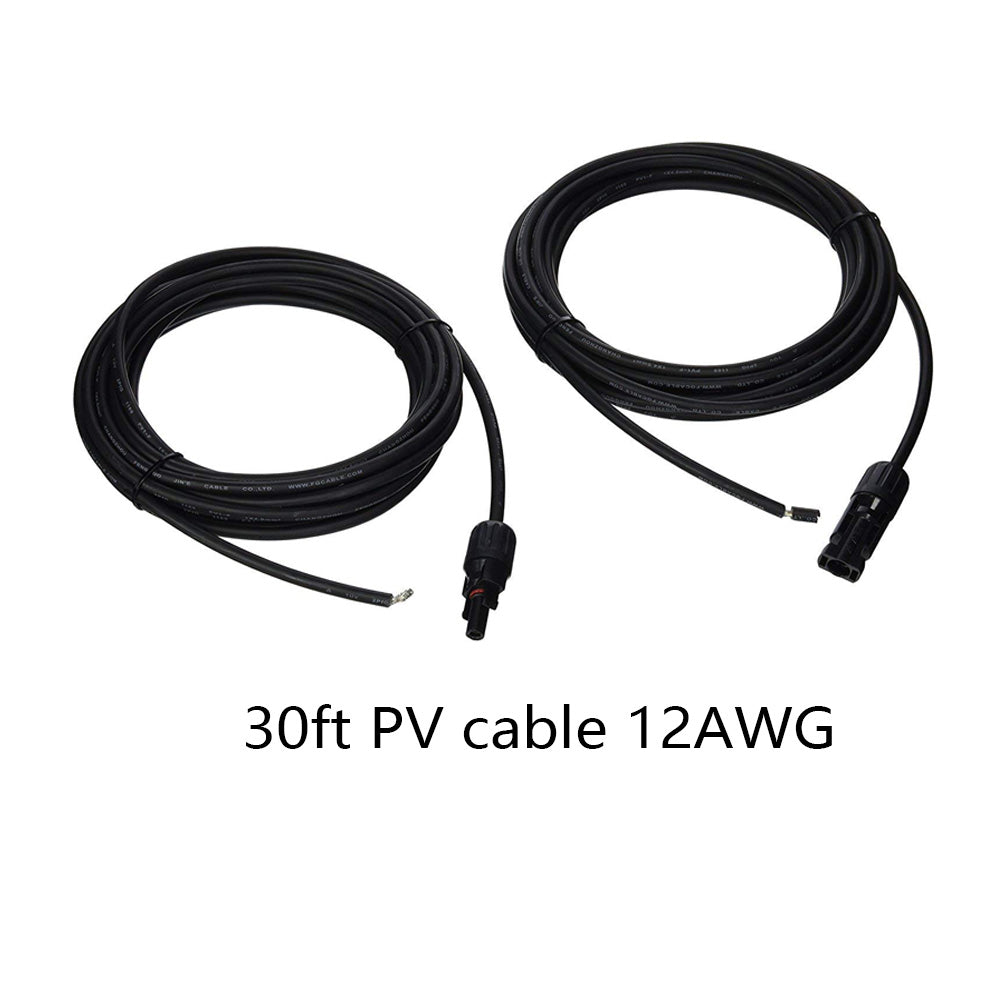

- Easy installation: With pre-drilled holes; each solar panel comes with a 12AWG cable with MC4 male/female quick connectors, Can be connected in parallel via branch connectors or in series without any connectors
- High Efficiency: 1PCS Monocrystalline solar Module efficiency: 19.22%;
- Sturdy: High transparent low-iron, tempered glass. , Rugged design to withstand high wind pressure, hail, and snow load.
- 20A PWM Charge Controller: 8 Battery Type Compatible -Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal, and Calcium. 20 amps 12V/ 24v auto continuous charging capacity, enables use of up to 12V/360watts, 24V/720watts.
- Safe Operation: The ACOPower is equipped with multiple electronic protections; overcharge, overload, short-circuit and reverse polarity protections.
- Reliable Performance: Electroluminescence-tested solar modules for quality assurance. Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments. Corrosion-resistant aluminum frame for extended outdoor use.TPT back sheet dissipates excess heat, ensuring smooth output
- Warranty: 25-year transferable power output warranty on panels and 1-year warranty on the rest of the kit components

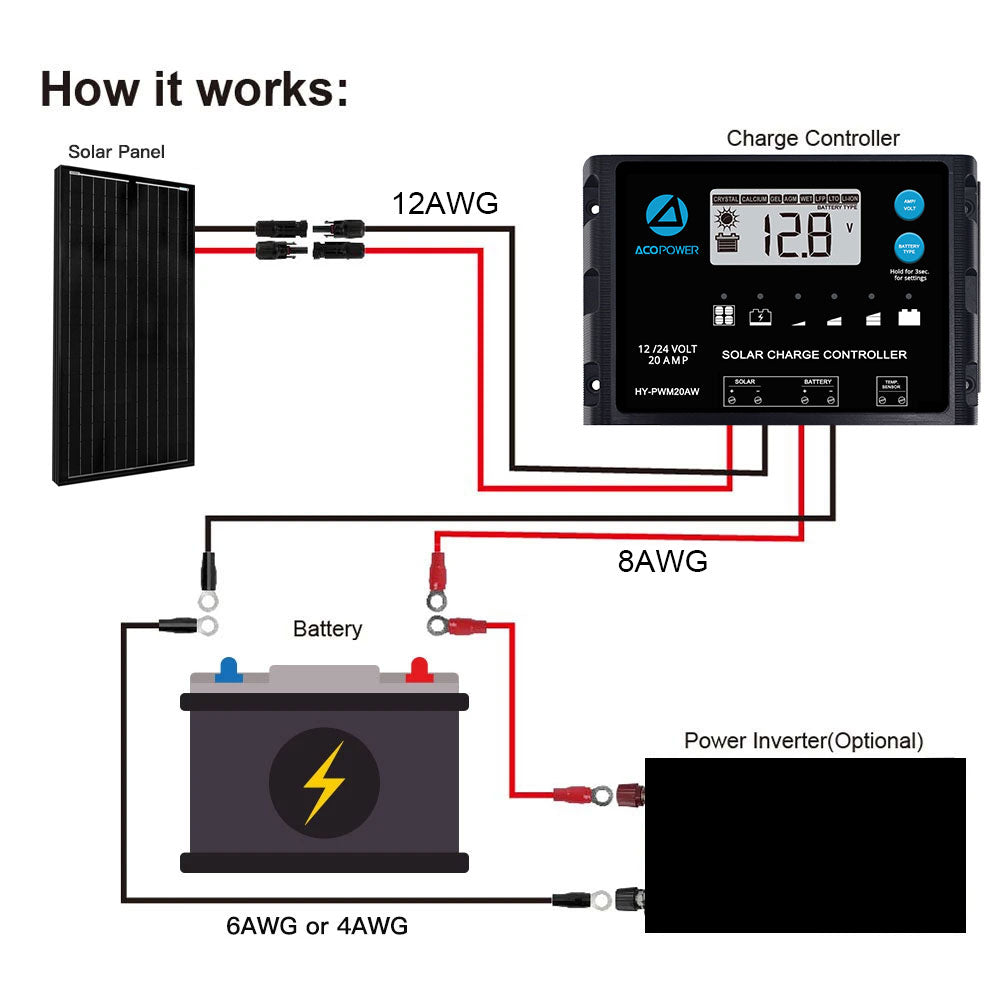

- Green Solar System: Designed for RVs, cabins, homes, boats, backup and remote power use. The two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging
ACOPOWER 200 WATTS ALL BLACK MONO SOLAR PANEL
- Peak Power (Pmax):200W
- Max Power Voltage(Vmp):20.4V
- Max Power Current(Imp):9.8A
- Weight:26.5 lb/12kg
- Peak Circuit Voltage(Voc):24.3V
- Short Circuit Current(Isc): 10.2A
- Wind resistance:2400pa
- Dimension: 54.72 x 27.56x 1.3 Inch
ACOPOWER 100 WATTS ALL BLACK MONO SOLAR PANEL
- Maximum Power at STC (Pmax): 100W
- Maximum Operating Voltage (Vmp): 17.48V
- Maximum Operating Current (Imp): 5.71A
- Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
- Open-Circuit Voltage (Voc): 22V
- Short-Circuit Current (Isc): 6.14A
- Operating Temperature: -40ºC to 85ºC
- Weight: 9.5kg / 20.9 lbs
ACOPOWER 60A MPPT SOLAR CHARGE CONTROLLER
- Nominal System Voltage: 12v/24v/36v/48v DC auto work
- Rated Charge Current: 60A
- Max. PV Open Circuit Voltage: 150V/138V
- Max. PV input power: 1125W/12V, 2250W/24V, 2812.5W/36V ,4500W/48V
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- Dimension:261*216*119mm
- Grounding: Common negative
- Battery Input Voltage Range: 8V~32V
- MPP voltage range:V(BAT)+2V~108V
- Rated Charge Power : 750W/12V, 1500W/24V, 2250W/36V ,3000W/48V
- RS485 Interface: 5VDC/200mA(RJ45)
- Installion Notes:First connect the battery;Then connect the load; Finally connect the solar panel.
ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER
- Nominal System Voltage: 12v/24v/36v/48v DC Auto
- Rated Charge Current: 50A
- Max. PV Open Circuit Voltage: 150V/138V
- MPP Voltage Range: V(BAT)+2V~108V
- Working temperature: -25„ƒï½ž+50„ƒ
- RS485 Interface: RS485(RJ45)
- Dimension: 261*216*119mm
- Grounding: Common negative Design
- Battery Input Voltage Range: 8V~68V
- Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
- Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
- Storage temperature: -20„ƒï½ž+70„ƒ
- Enclosure: IP33
- Terminals: 16mm2/6AWG
ACOPOWER MIDAS 40A MPPT SOLAR CHARGE CONTROLLER
- Nominal System Voltage: 12/24VDC Auto
- Rated Charge Current: 40A
- Max. PV Open Circuit Voltage: 100V (1) 92V (2)
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- Working temperature: -25„ƒï½ž+50„ƒ
- Terminals: Up to 6 AWG
- Dimension: 10x7.28x2.67 in / 255×185×67.8mm
- Grounding: Common negative
- Battery Input Voltage Range: 8V~32V
- Rated charge Power: 520W/12V 1040W/24V
- RS485 Interface: 5VDC/200mA(RJ45)
- Storage temperature: -20„ƒï½ž+70„ƒ
- Enclosure: IP33
- Weight: 3.75lbs / 1.7kg
ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER
- Nominal system voltage: 12/24VDC Auto
- Battery input voltage range: 8V~32V
- Max.PV input power: 12V/390W, 24V/780W
- Working environment temperature: -25„ƒï½ž+50„ƒ
- Grounding: Common negative
- Power Terminals: 6AWG(16mm2)
- Dimensions: 228x164x55mm
- Rated charge current: 30A
- Max.PV open circuit voltage: 100VDC
- MPP voltage range: V(BAT+2V)~72V
- Storage temperature range: -35„ƒï½ž+80„ƒ
- Communication: RS485
- Enclosure: IP30
- Weight: 1.2kg

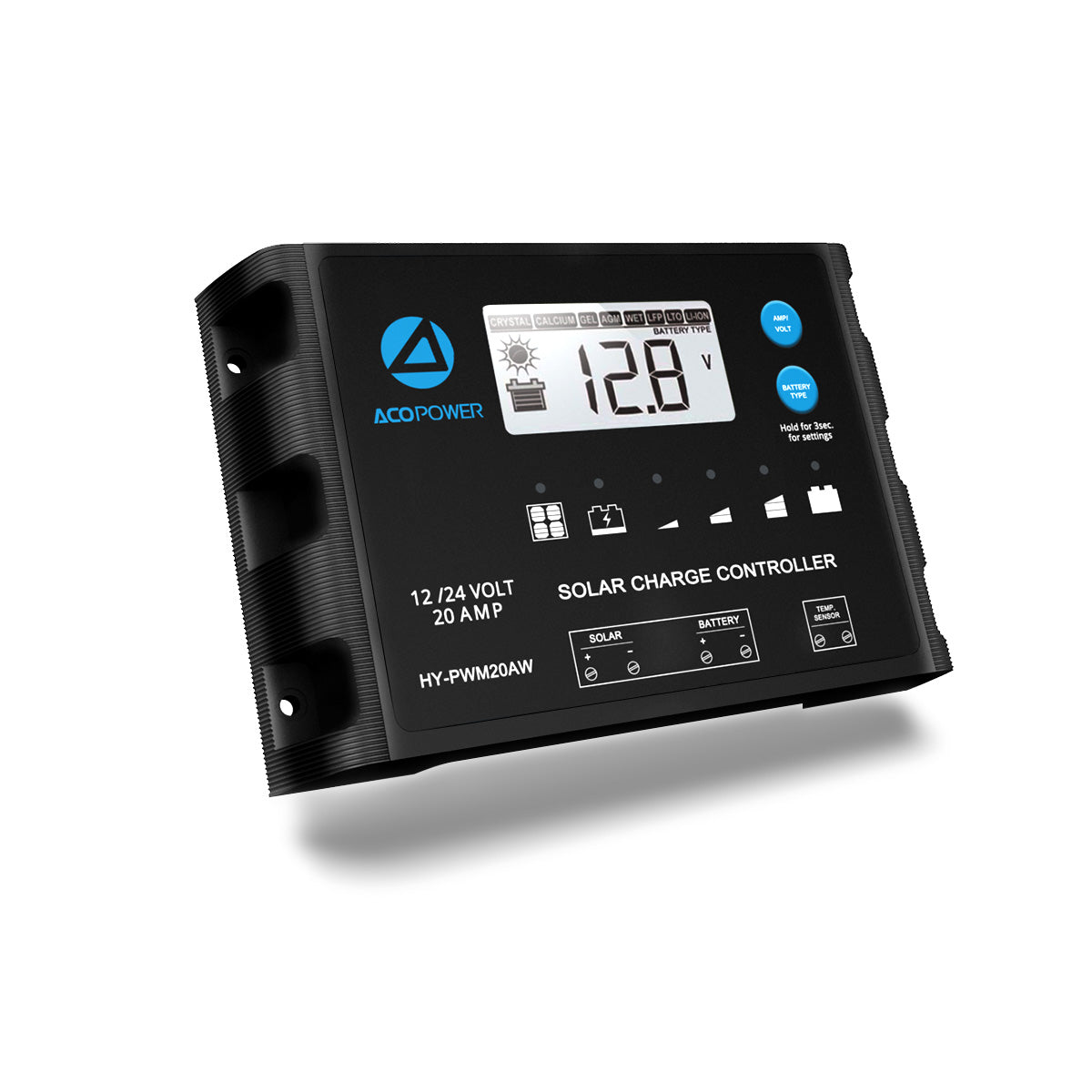

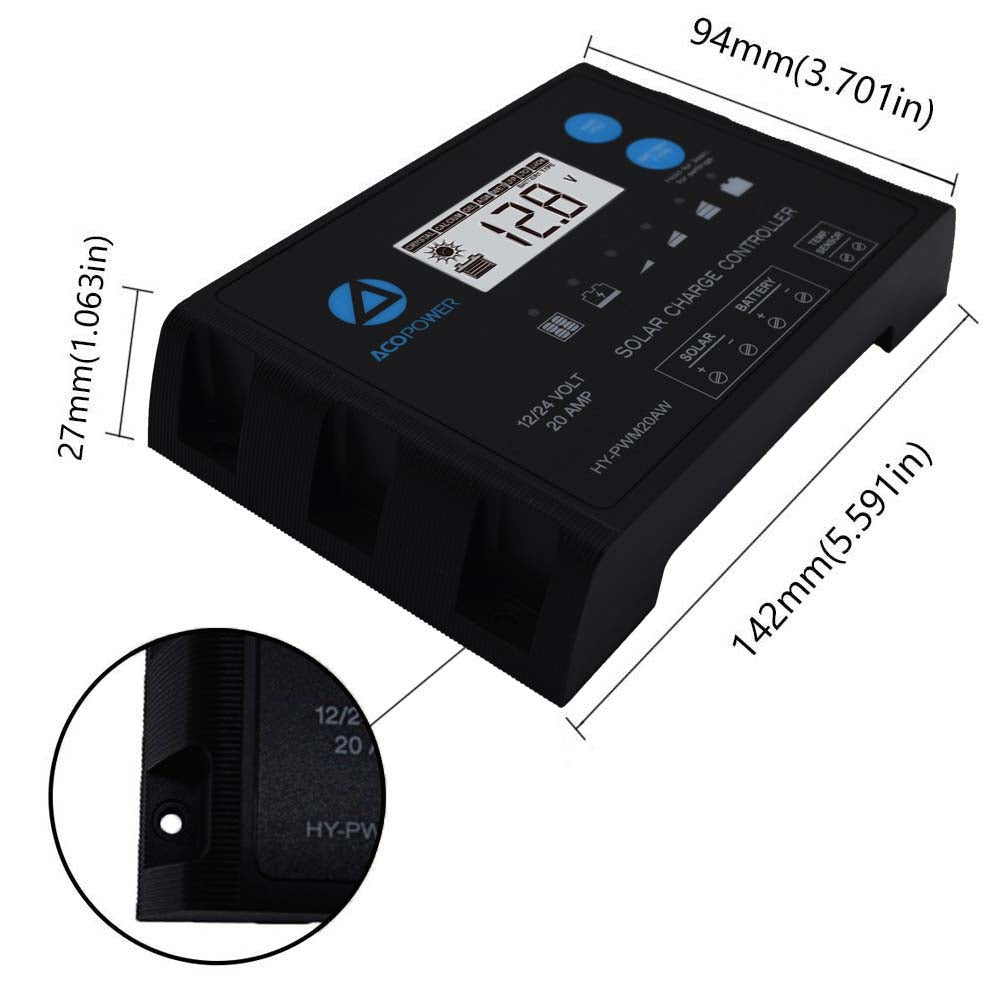

ACOPOWER 20A PWM CHARGE CONTROLLER
- Nominal Voltage: 12V/24V DC
- Rated Charge Current: 20A
- Battery Start Charging Voltage: 3V
- Operating Temperature: -40°F to 140°F
- Terminals: Up to 10 AWG
- Dimensions: 5.59x 3.7x 1.06 inches
- Grounding: Common Negative
- Max. PV Input Voltage: 50V
- Temperature Compensation Coefficient: -24mV/°C
- Storage Temperature: -40°F to 185°F
- Enclosure: IP65
- Weight: 1.1 lbs
WARRANTY INFORMATION
- Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
- Solar Charge Controllers: The controller itself comes with a 1-year warranty.
- Accessories: 1-year material warranty
