ACOPOWER Deep Cycle GEL Battery Mono Solar Power Complete System with Battery and Inverter for RV Boat 12V Off Grid Kit

$1,585.03
No reviews
No reviews
Title:200Ah 1.5Kw 300W
Quantity:
    • Solar charging will provide about 960 Watt Hours (Wh) or 80 Amp hours of charge per day (depends on sunlight availability)
    • Perfect kit for having an off-grid 12 volt battery system. 1500 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use; Designed for RVs, cabins, homes, boats, back-up and remote power use
    • Bundle and save! Purchase all the components together and save time and money!
    • Complete kit includes: 2pcs 100 Watt Monocrystalline Solar Panel, 1pc 100Ah Gel(Maintenance Free) Deep Cycle Battery,1500W 1500 Watt DC to AC Power Inverter, 30-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets;
    • California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business.

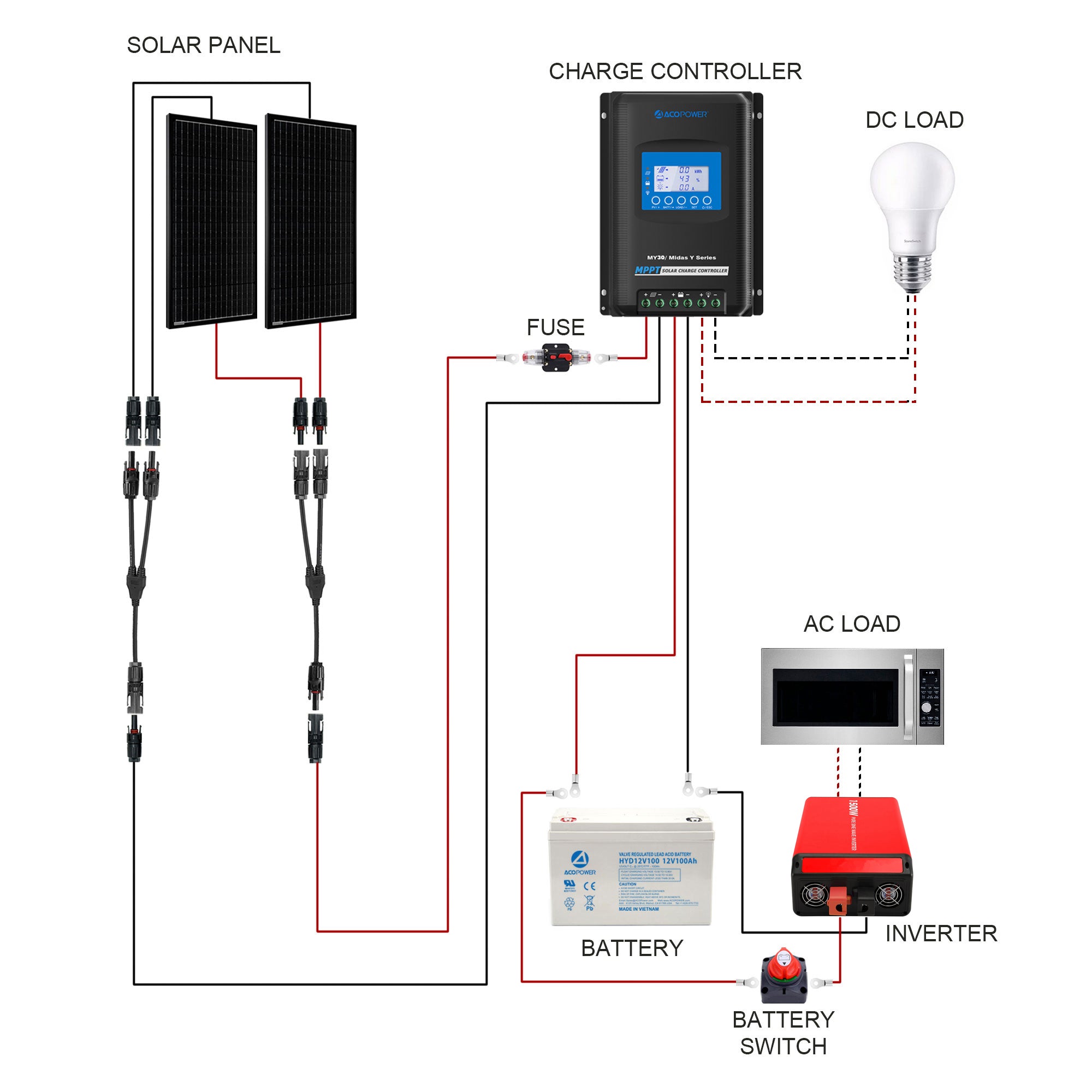

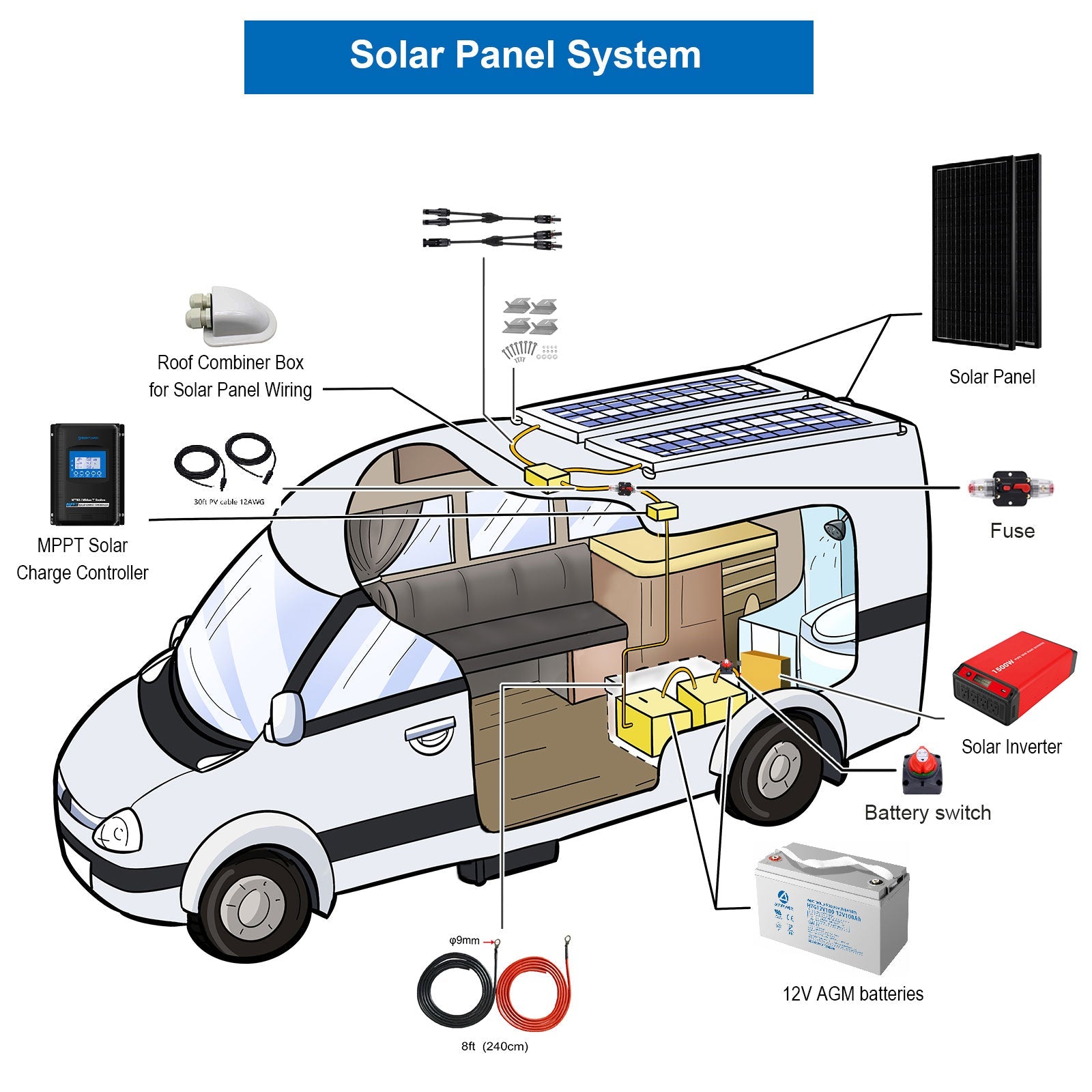

    ACOPOWER 200 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER's 200 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 2pcs 100 Watt Monocrystalline Solar Panels, 1500W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 1pc 100Ah Gel Deep Cycle Battery, 30-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.

    Specification:

    100W Monocrystalline Solar Panel

  • Nominal for 12V battery charger
  • Peak Power (Pmax):100W
  • Peak Circuit Voltage(Voc):22V

  • Max Power Voltage(Vmp):17.48V

  • Short Circuit Current(Isc):6.14A

  • Max Power Current(Imp):5.71A

  • Weight:12.8 lb
  • Dimension:40.2*20.1*1.4 Inch
  • Application Class: Class A

    • 1500W Inverter 12VDC to 120VAC

  •
    • Continuous output 1500W
  •  Surge Power 3000W
  •  Wave Form: Pure Sine Wave
  •  Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
  •  Weight: 7.79lb
  •  dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

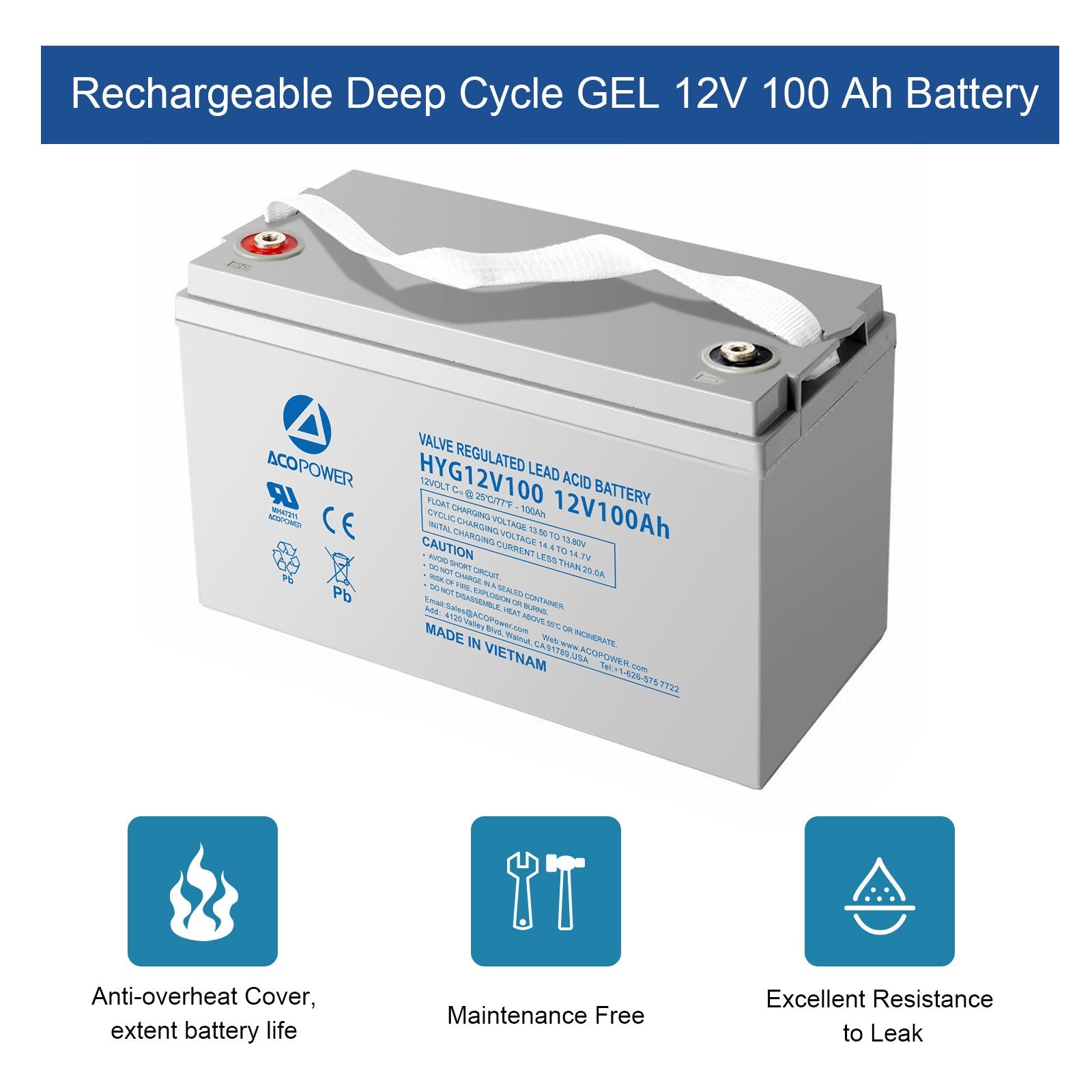

  • 12V 100 Ah Rechargeable Deep Cycle GEL Battery

  •
    • Nominal Voltage 12V
  •
    • Rated capacity (10 hour rate): 100Ah
  •
    • dimension(inch):12.99 x 6.73 (W) x 8.43 (H) inch; Total Height: 8.66inch
  •
    • Approx. Weight: 30.5kg(67.2lbs)±3%

  • MPPT 30A Charge Controller

  • Rated charge current: 30A
  • Battery voltage range: 8V~32V
  • Max.PV open circuit voltage: 100VDC
  • Max.PV input power: 12V/390W,24V/780W
  • Common positive grounding design
  • Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

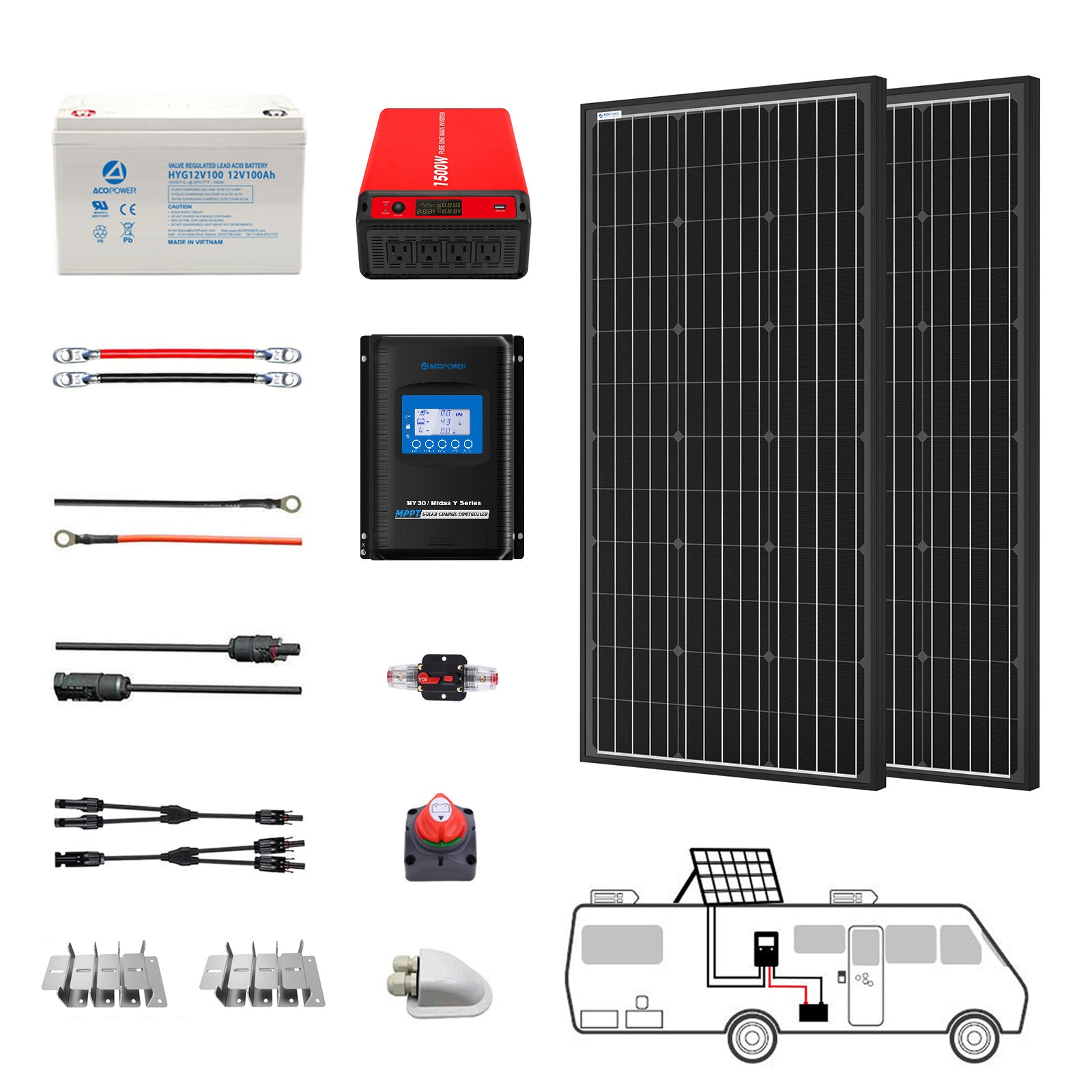

    Package List:
  • 2PCS 100W Mono Solar Panel
  • 1PC 1500W Inverter
  • 1PC 100Ah Gel Battery
  • 1PC 30A MPPT Charge Controller
  • 1PC 50A Fuse
  • 1PC Battery Switch
  • 2 Sets Mounting Z Bracket
  • 1Pair 30ft 12AWG PV Cable
  • 1 Pair 1Ft 4AWG Battery Cable
  • 1 Pair 8FT 8AWG Tray Cable
  • 1PC Cable Entry Housing
  • 1 Pair y branch solar panel connectors


    12V 100Ah LiFePO4 Deep Cycle Lithium Battery

    • Rated voltage 12.8V
    • Charge voltage: 14.2 - 14.6V
    • Battery Capacity:1280WH
    • Depth of Discharge (DoD): 100%
    • Standard charge current: 20A
    • Max continuous charge current: 50A
    • Max continuous discharge current: 100A
    • dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch
    • Approx. Weight: 23.8lb

    12V 200Ah LiFePO4 Deep Cycle Lithium Battery

    • Rated voltage 12.8V
    • Charge voltage: 14.2 - 14.6V
    • Battery Capacity:2560WH
    • Depth of Discharge (DoD): 100%
    • Standard charge current: 50A
    • Max continuous charge current: 100A
    • Max continuous discharge current: 200A
    • dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch
    • Approx. Weight: 48.94lb

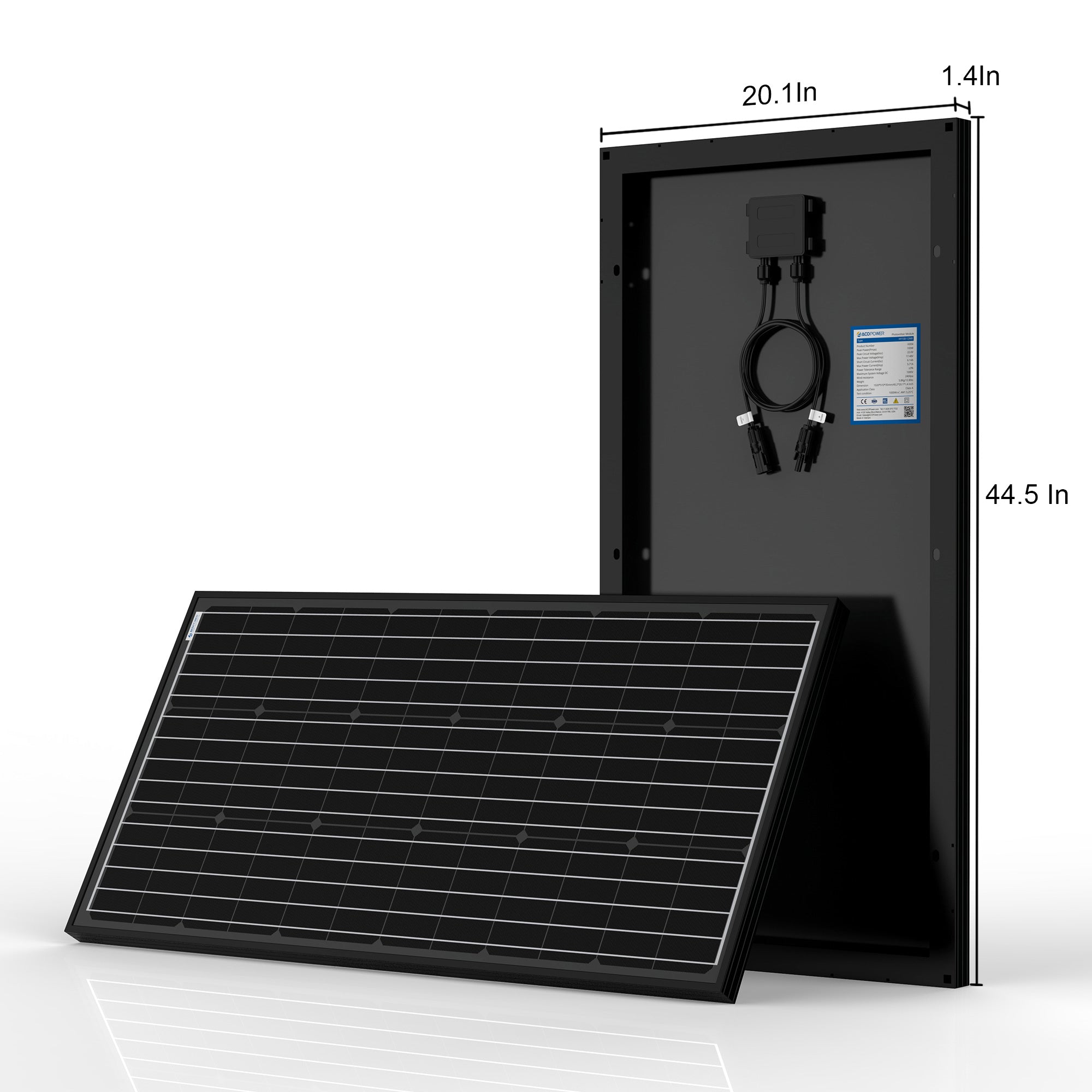

    ACOPOWER 100 WATTS MONO SOLAR PANEL

    • Nominal for 12V battery charger
    • Peak Power (Pmax):100W
    • Peak Circuit Voltage(Voc):22.5V
    • Max Power Voltage(Vmp):17.48V
    • Short Circuit Current(Isc):6.14A
    • Max Power Current(Imp):5.71A
    • Weight:12.8lb
    • Dimension:40.2*20.1*1.4 Inch
    • Application Class: Class A

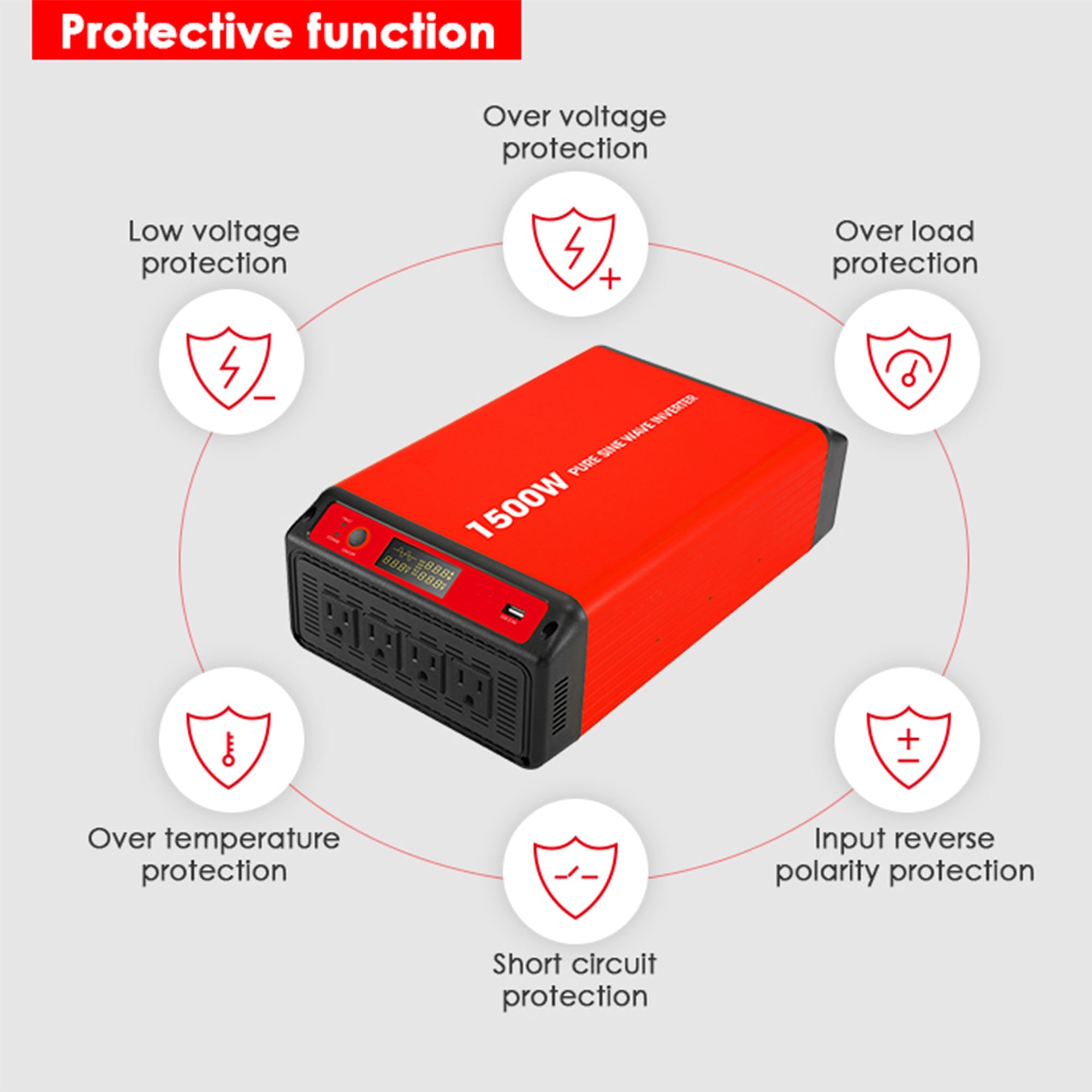

    1500W Pure Sine Wave Inverter

    • Continuous output 1500W
    • Surge Power 3000W
    • Wave Form: Pure Sine Wave
    • Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
    • Weight: 7.79lb
    • Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

    3000W Pure Sine Wave Inverter

    • Continuous output 3000W
    • Surge Power 6000W
    • Wave Form: Pure Sine Wave
    • Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
    • Weight: 12.1lb
    • Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

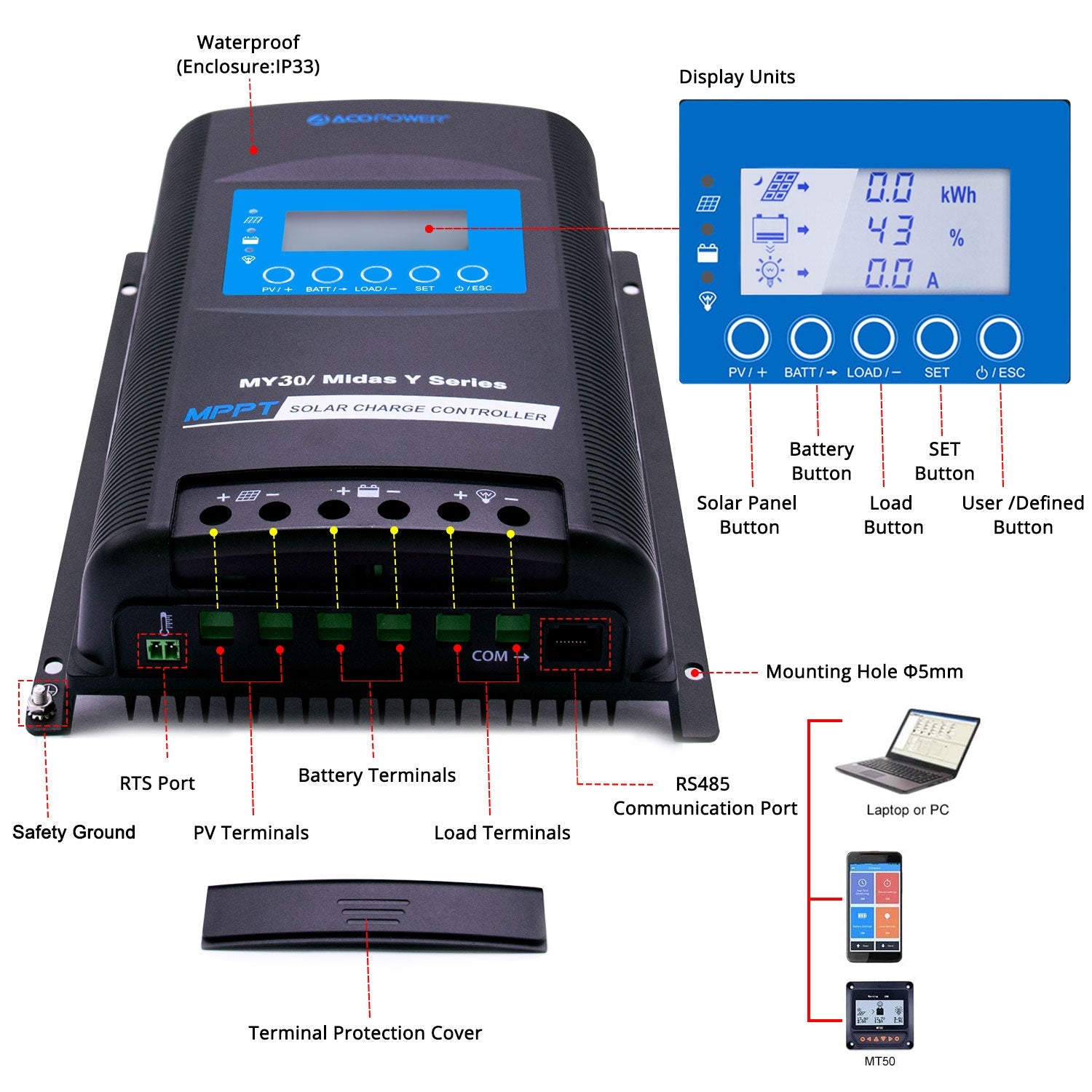

    MPPT Solar Charge Controller 30A

    • Rated charge current: 30A
    • Battery voltage range: 8V~32V
    • Max.PV open circuit voltage: 100VDC
    • Max.PV input power: 12V/390W,24V/780W
    • Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method

    MPPT Solar Charge Controller 40A

    • Rated charge current: 40A
    • Battery voltage range: 8V~32V
    • Max.PV open circuit voltage: 100VDC
    • Max.PV input power: 12V/520W,24V/1040W
    • Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method

    MPPT Solar Charge Controller 50A

    • Rated charge current: 50A
    • Battery voltage range: 8V~68V
    • Max.PV open circuit voltage: 150V
    • Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
    • Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

    MPPT Solar Charge Controller 60A

    • Rated charge current: 60A
    • Battery voltage range: 8V~68V
    • Max.PV open circuit voltage: 150V
    • Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
    • Compatible with Various Deep Cycle Battery options:Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

    WARRANTY INFORMATION

    • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
    • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
    • Accessories: 1-year material warranty


    Ships From: United States

    Shipping Lead Time: 2 - 14 Business Days
