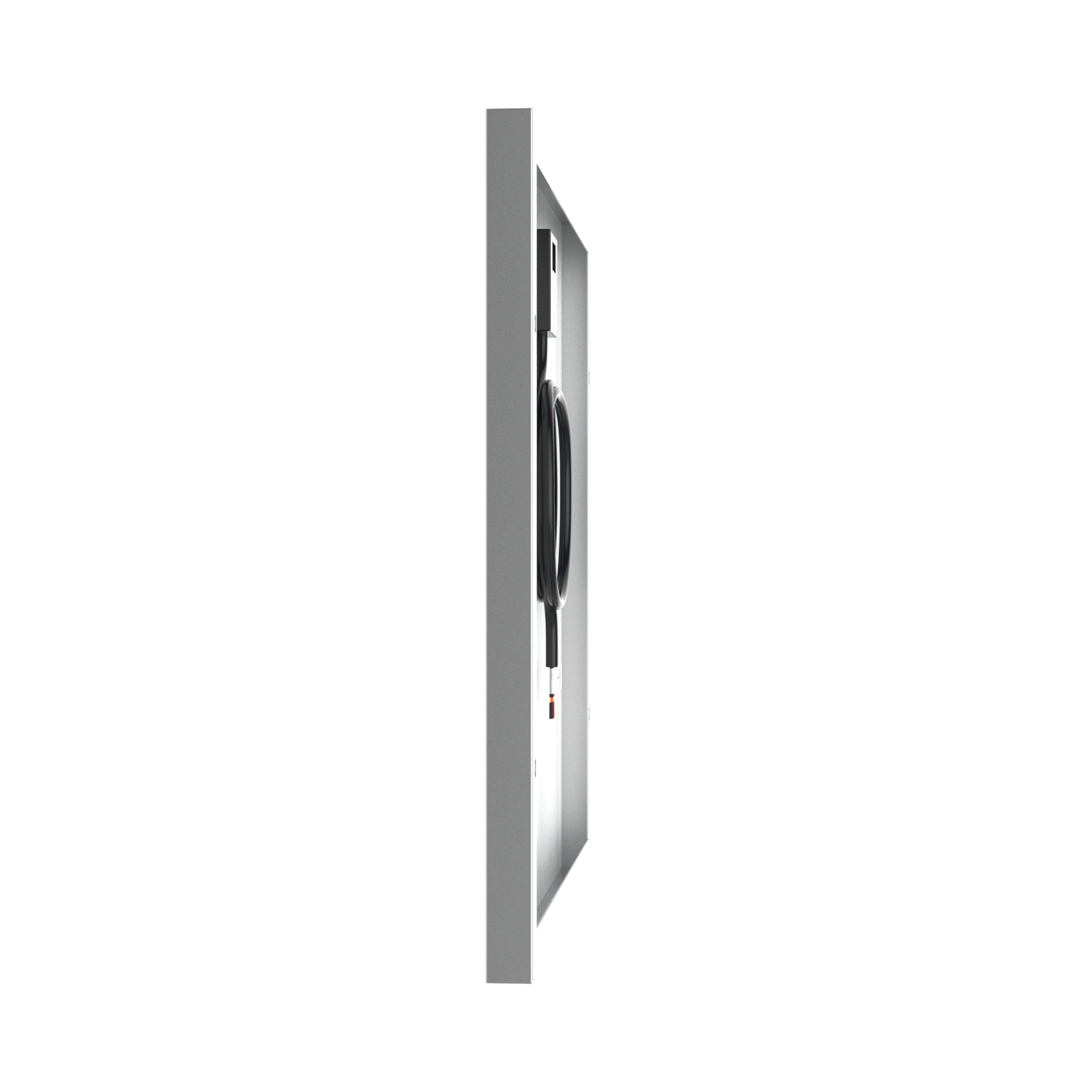

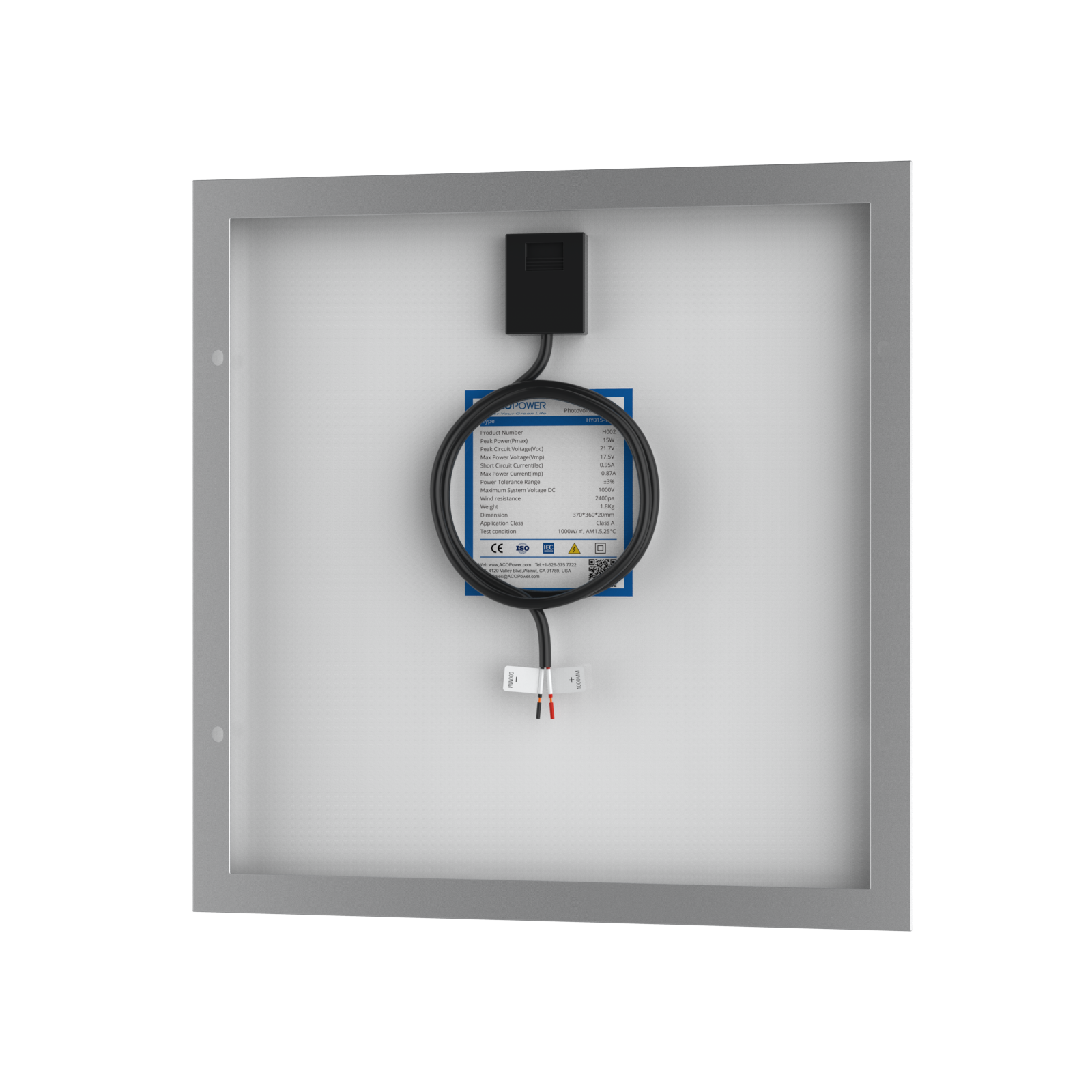

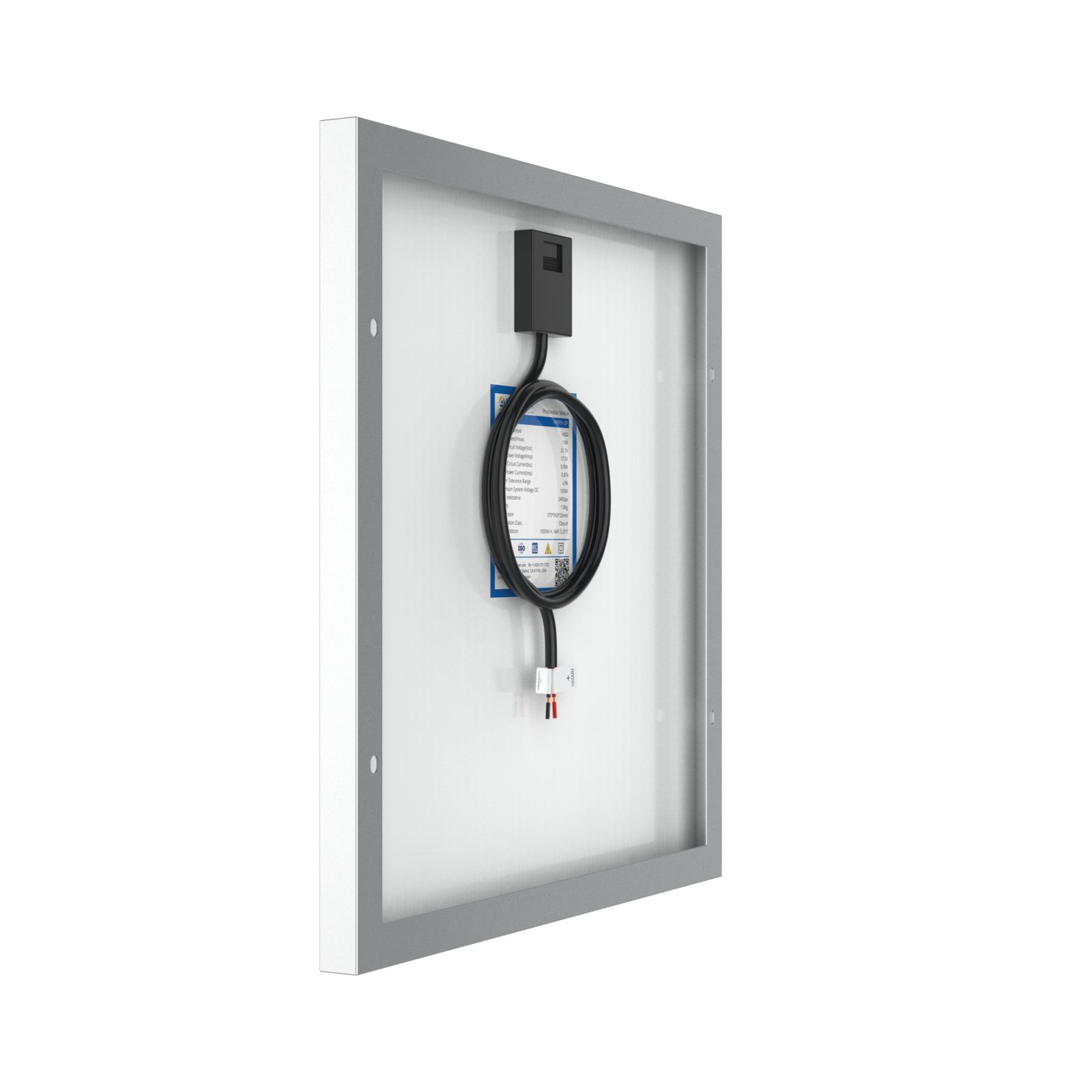

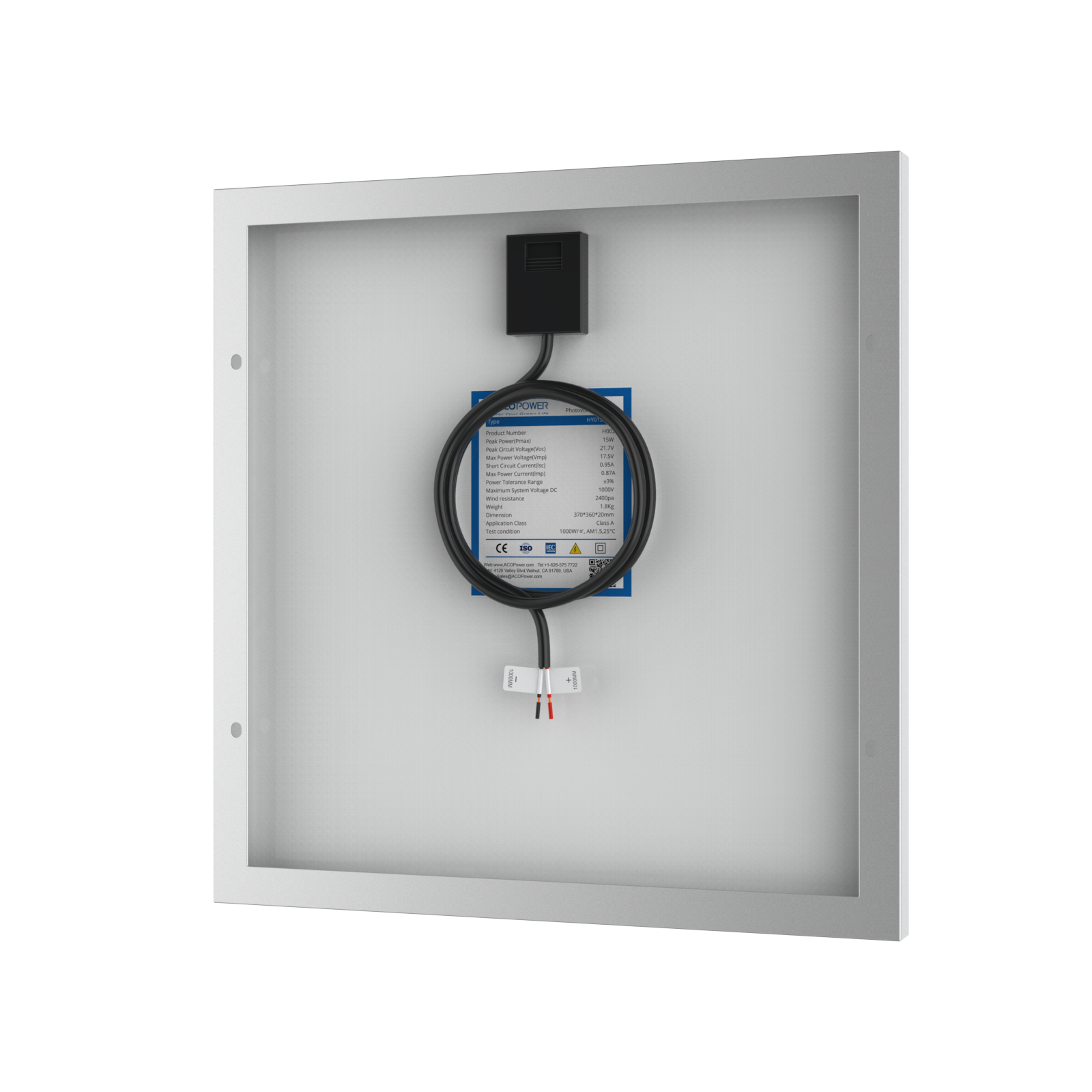

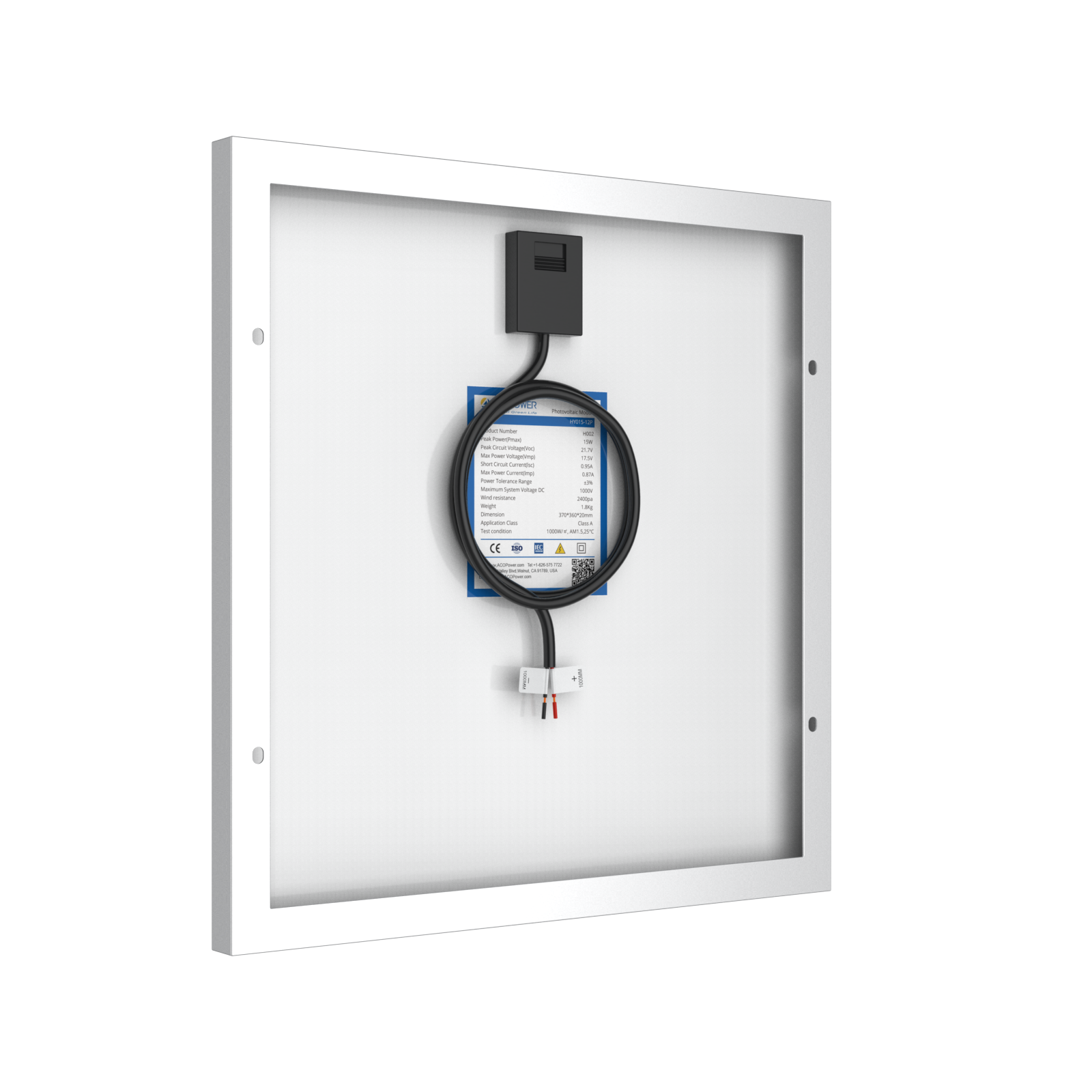

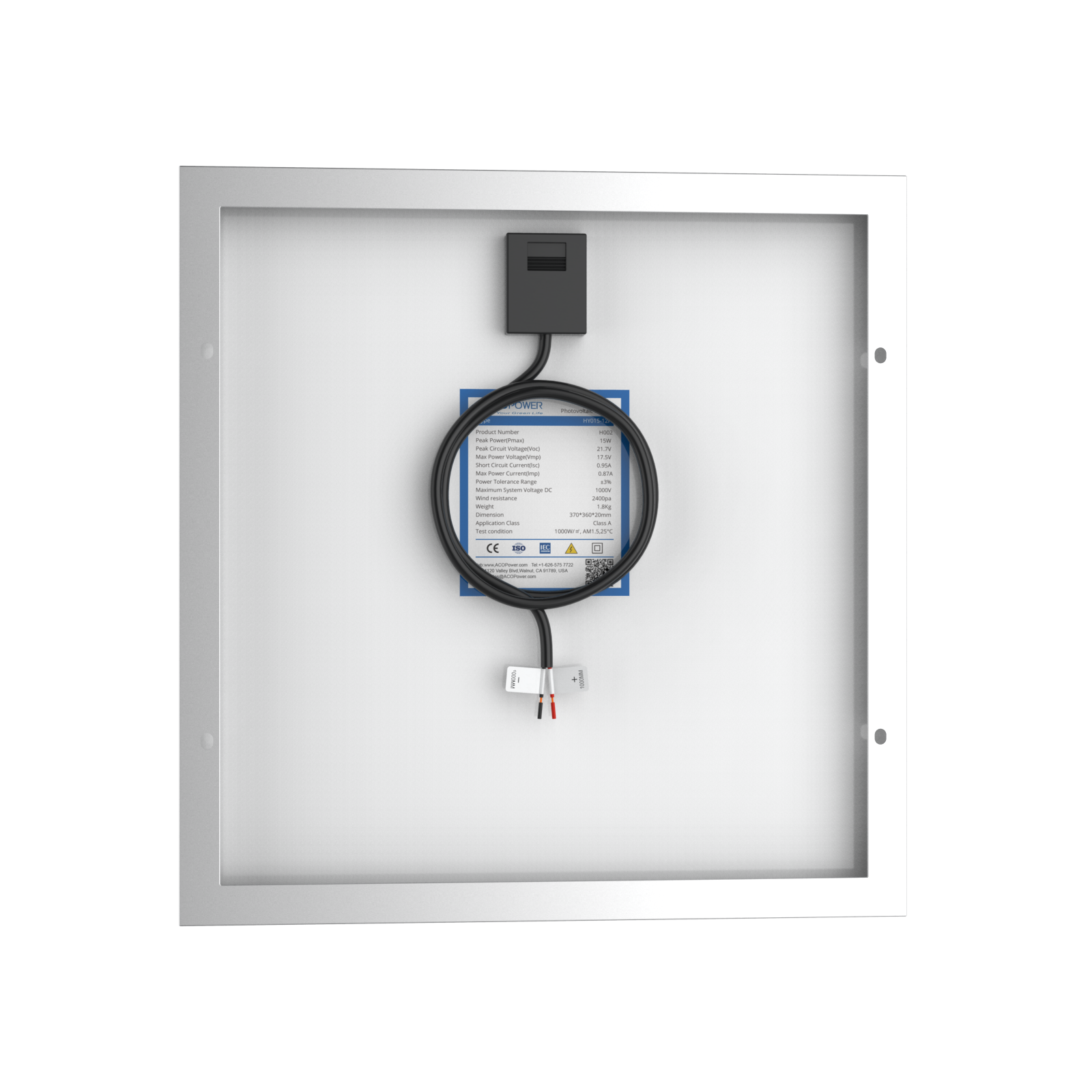

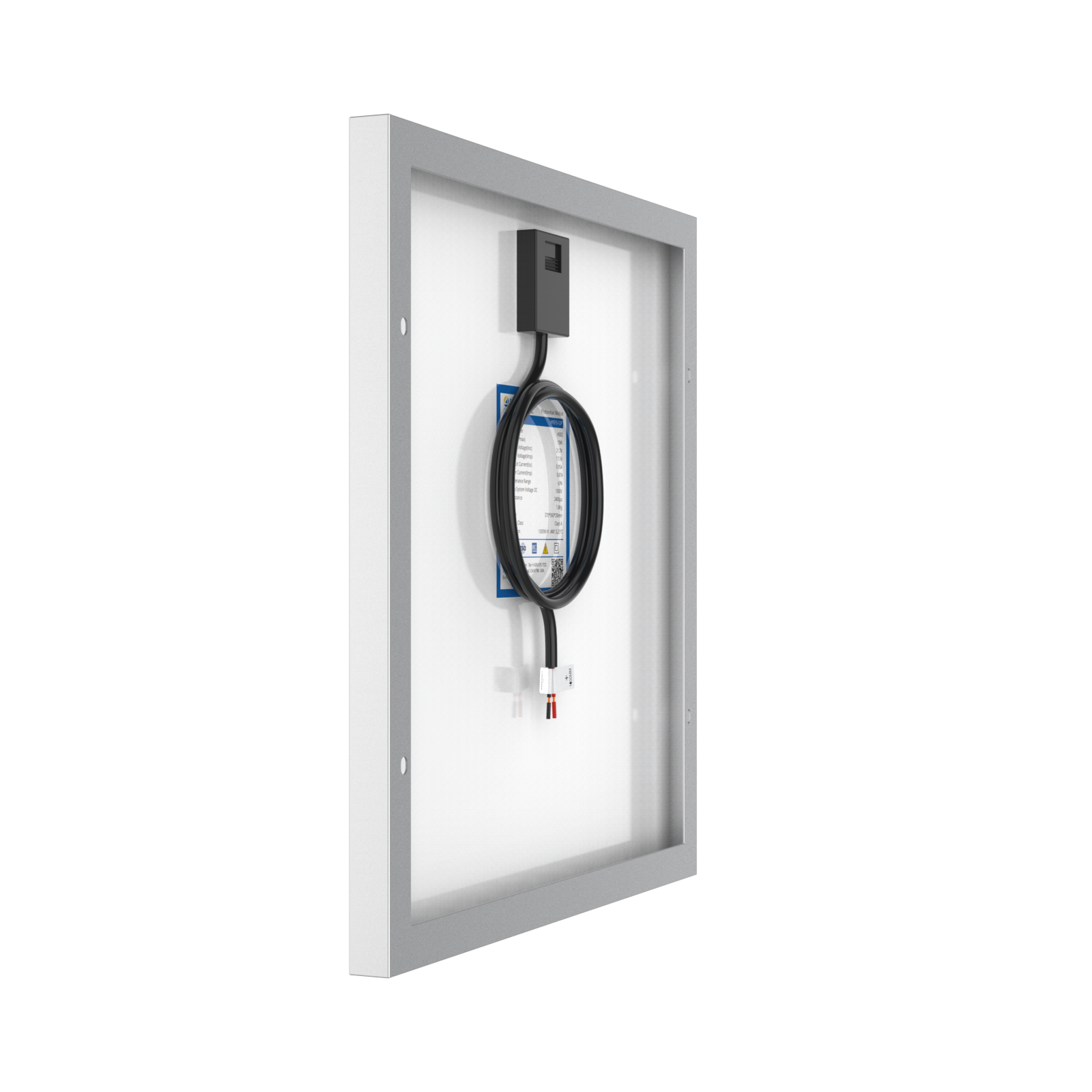

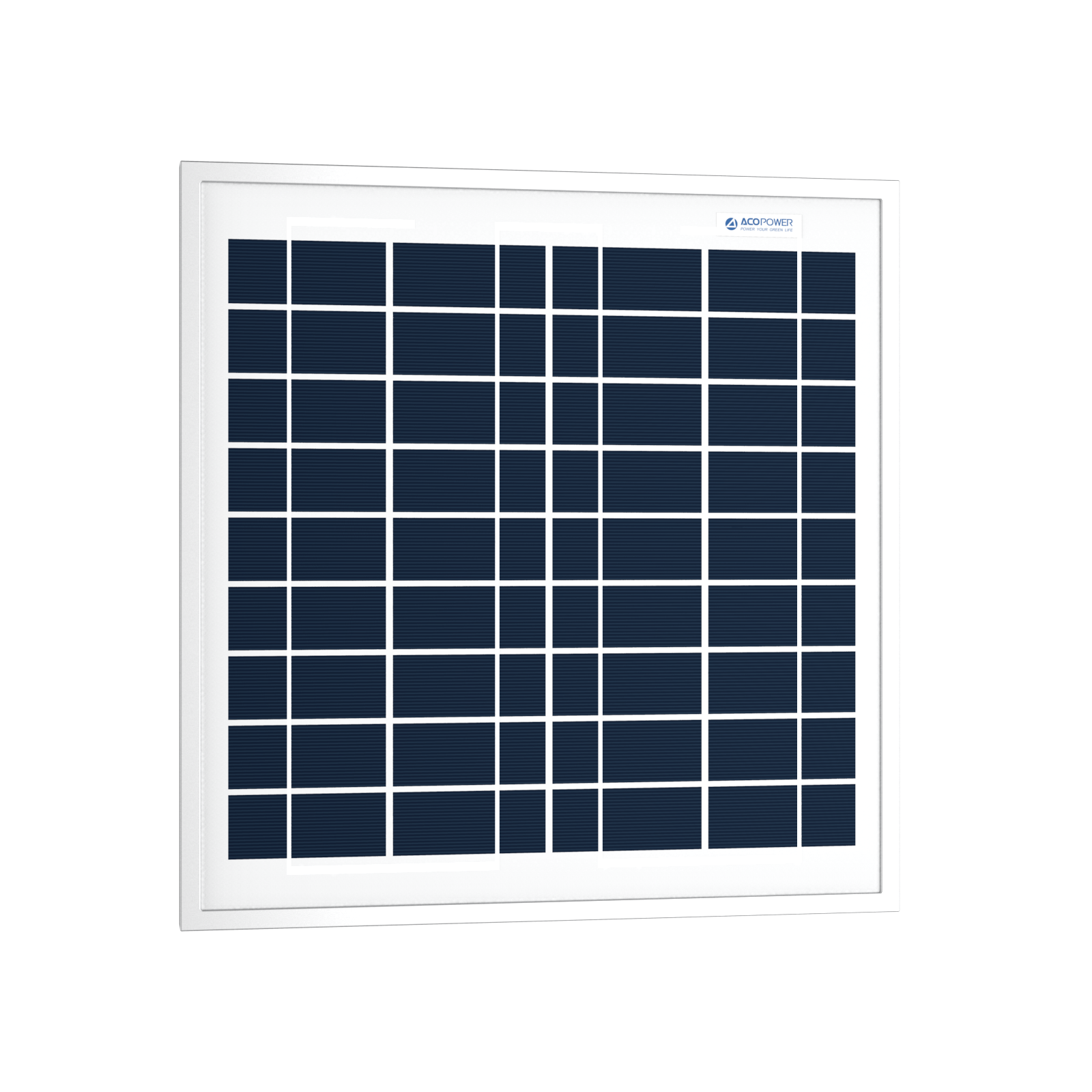

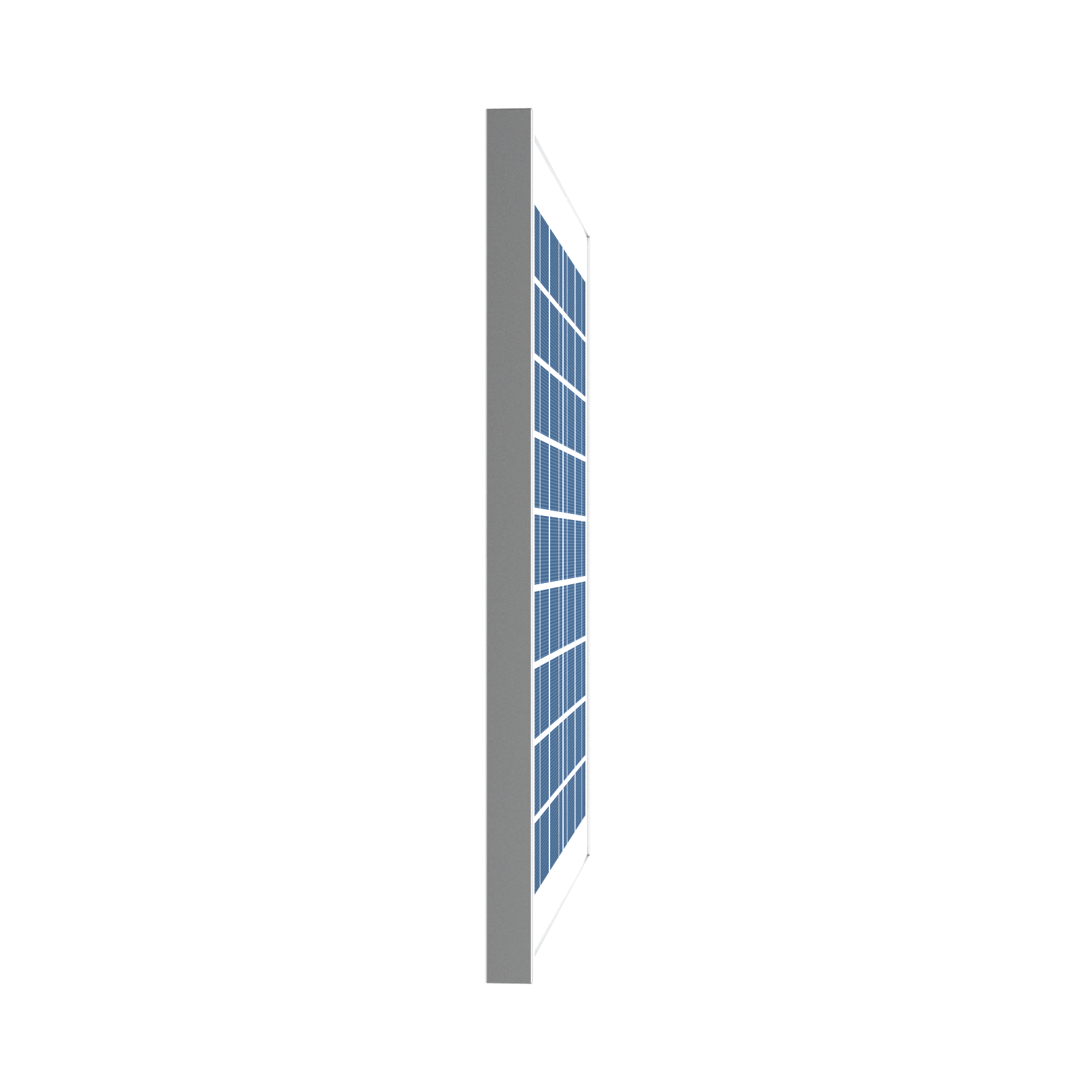

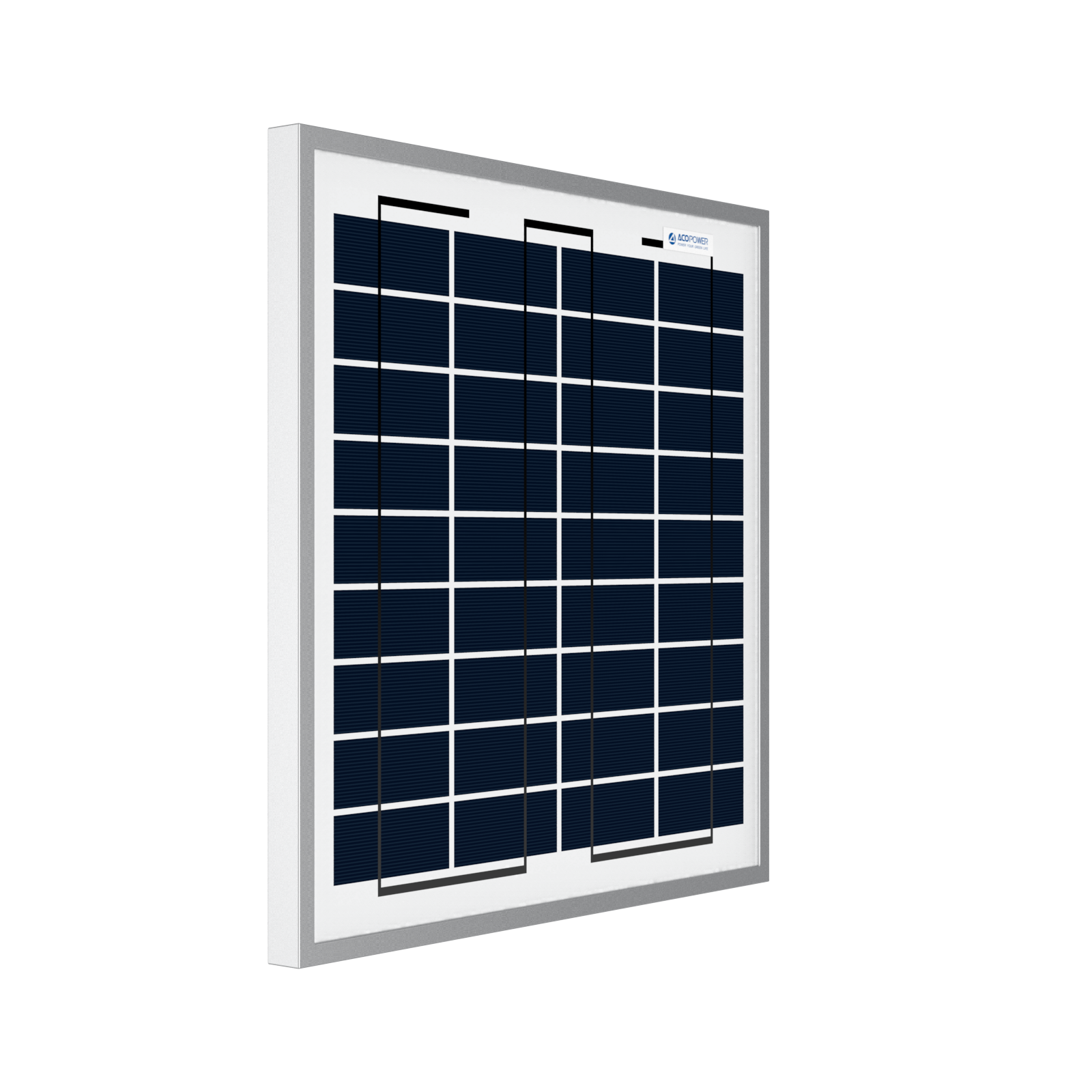

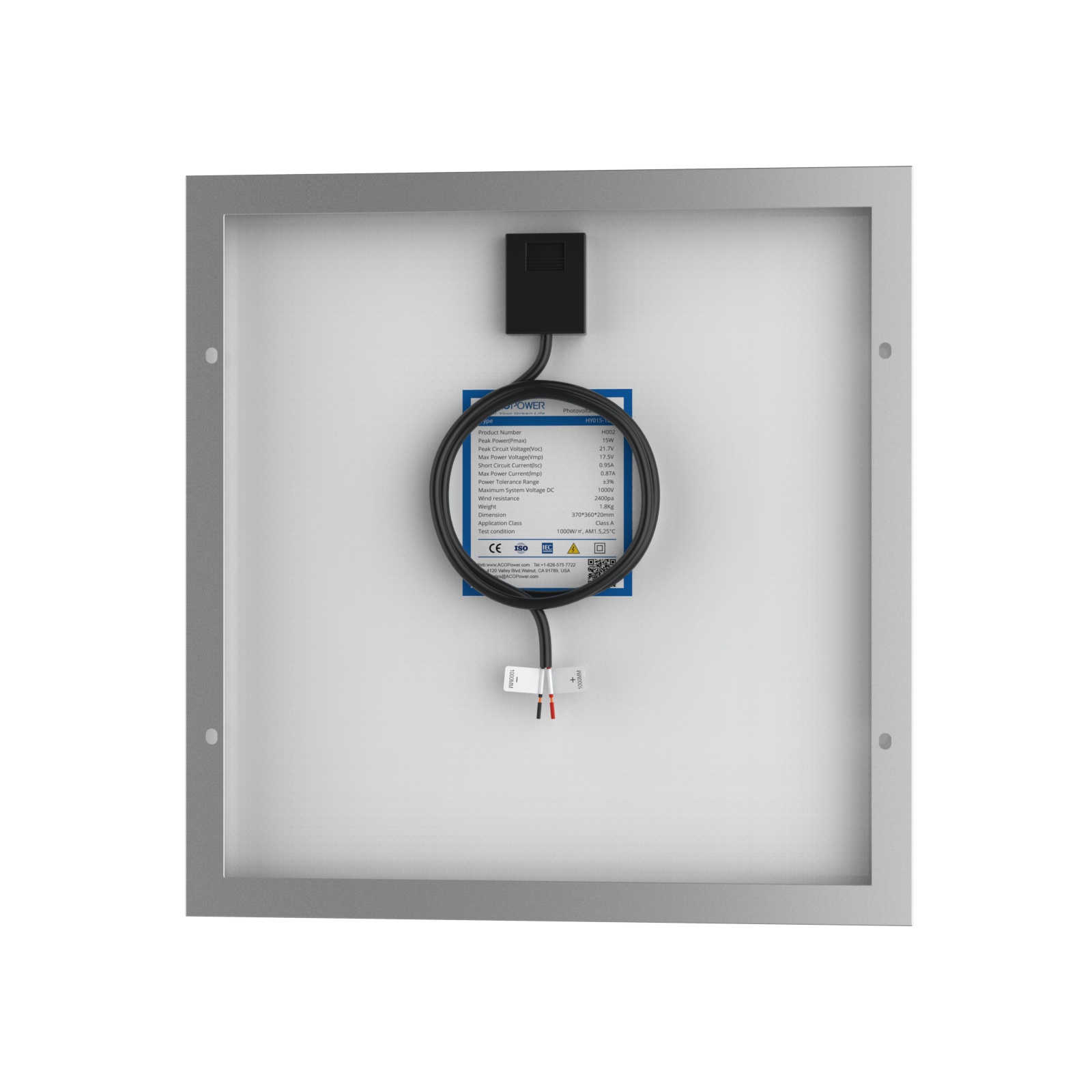

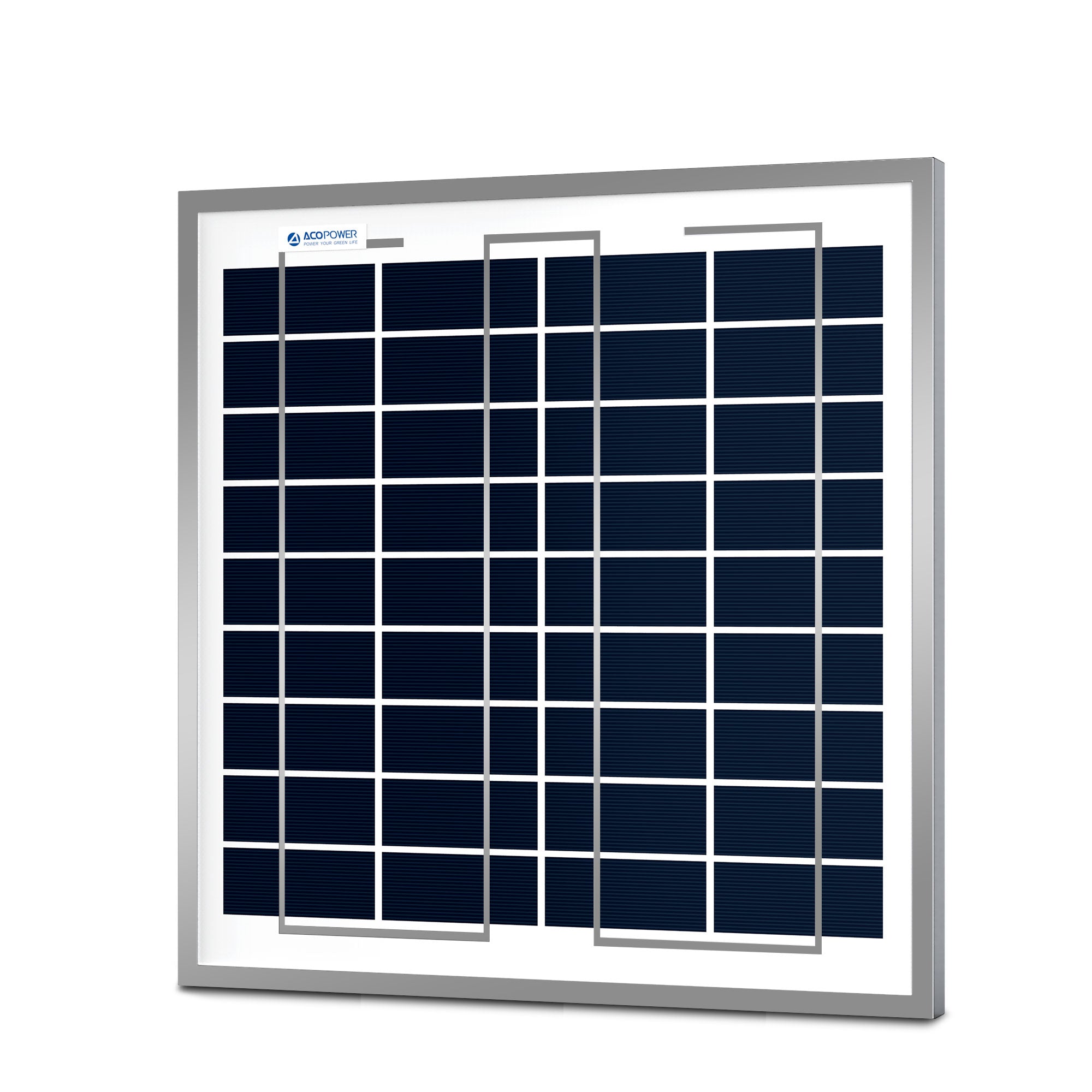

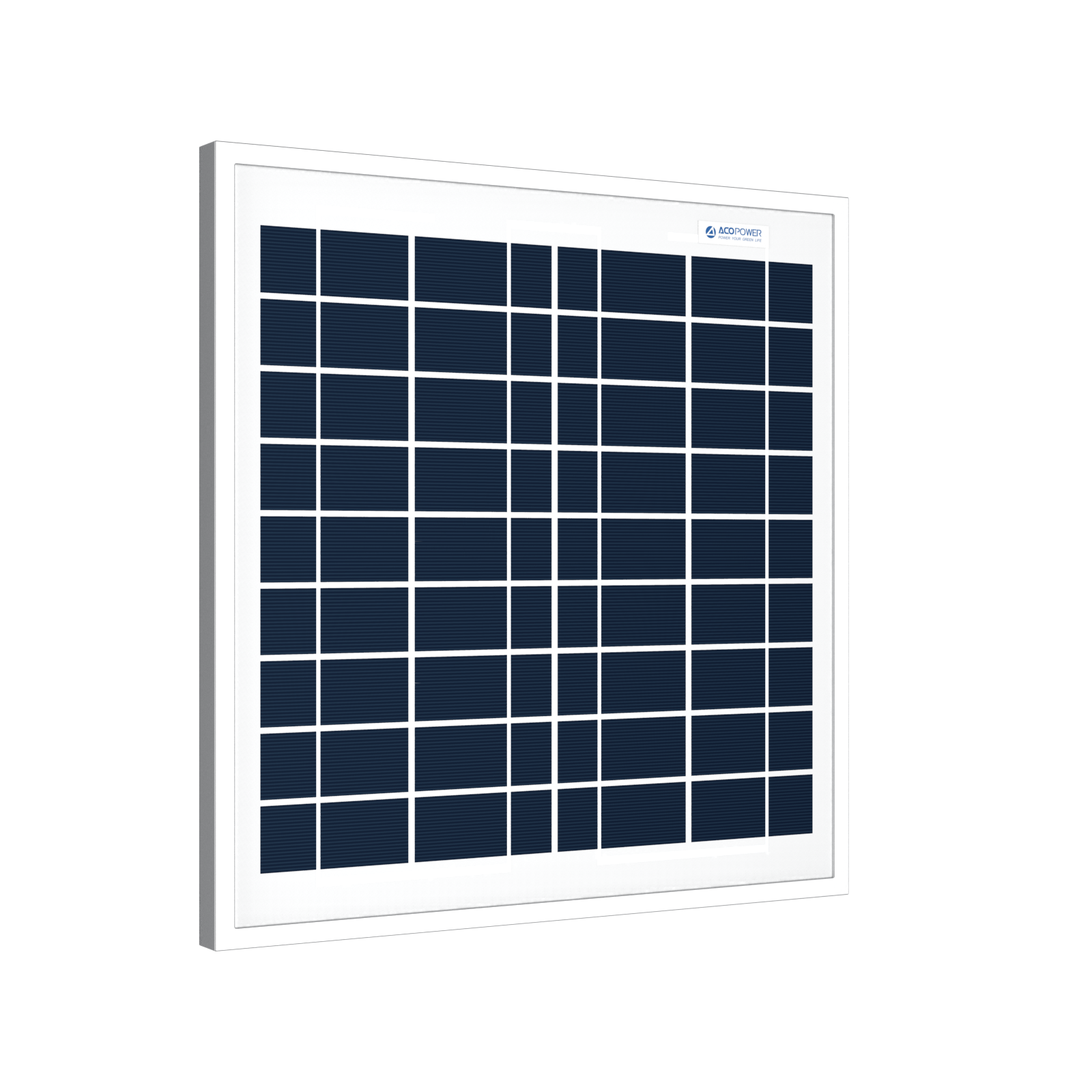

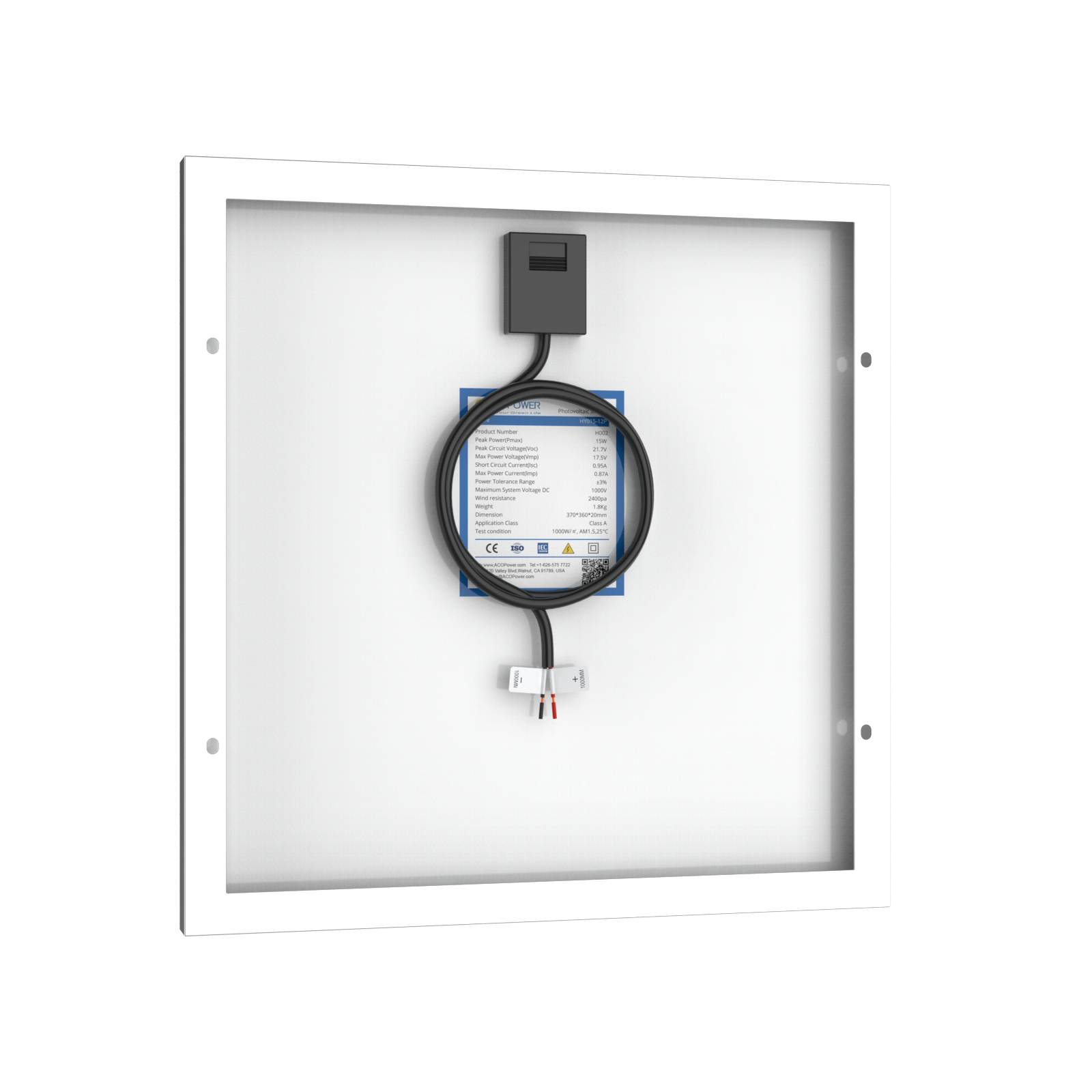

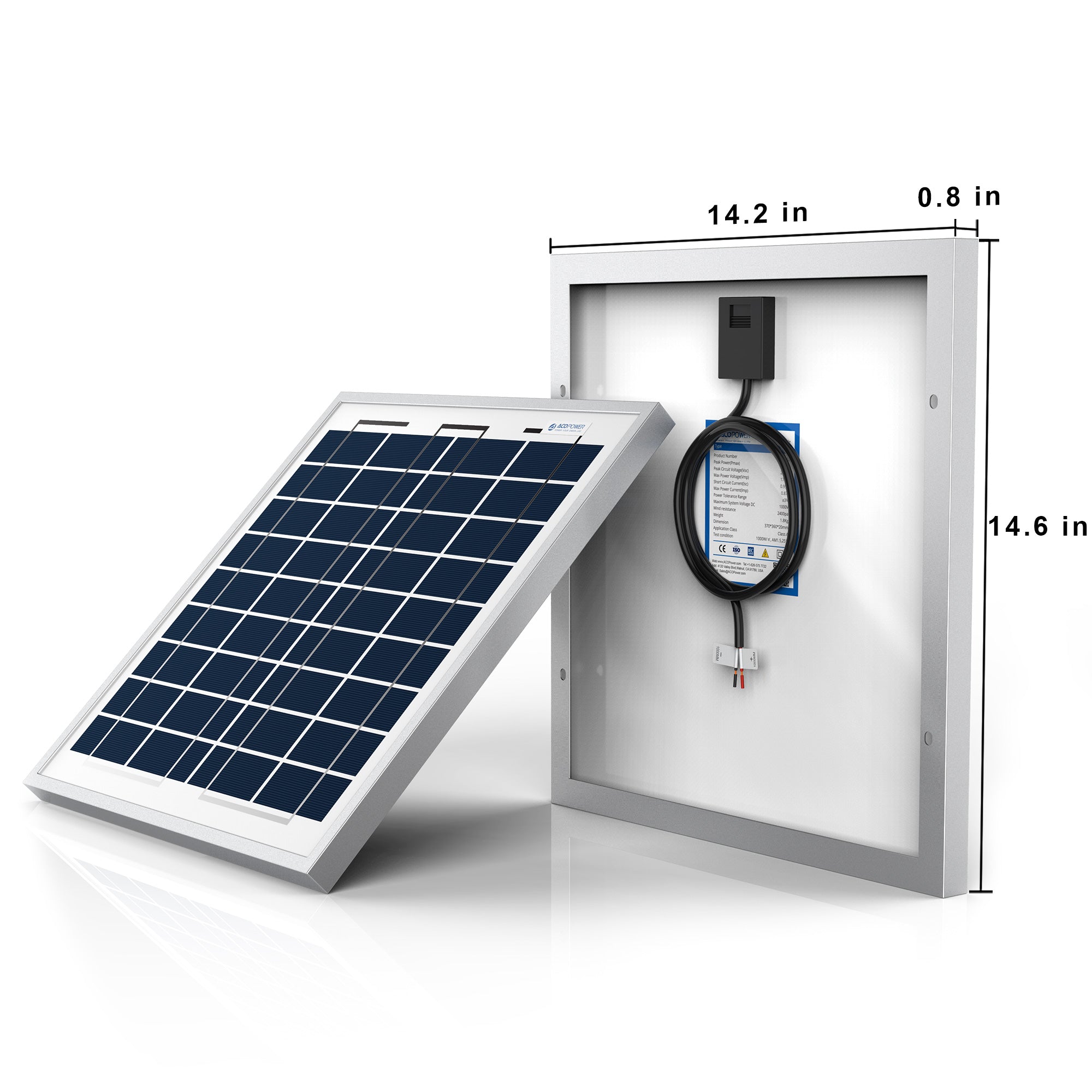

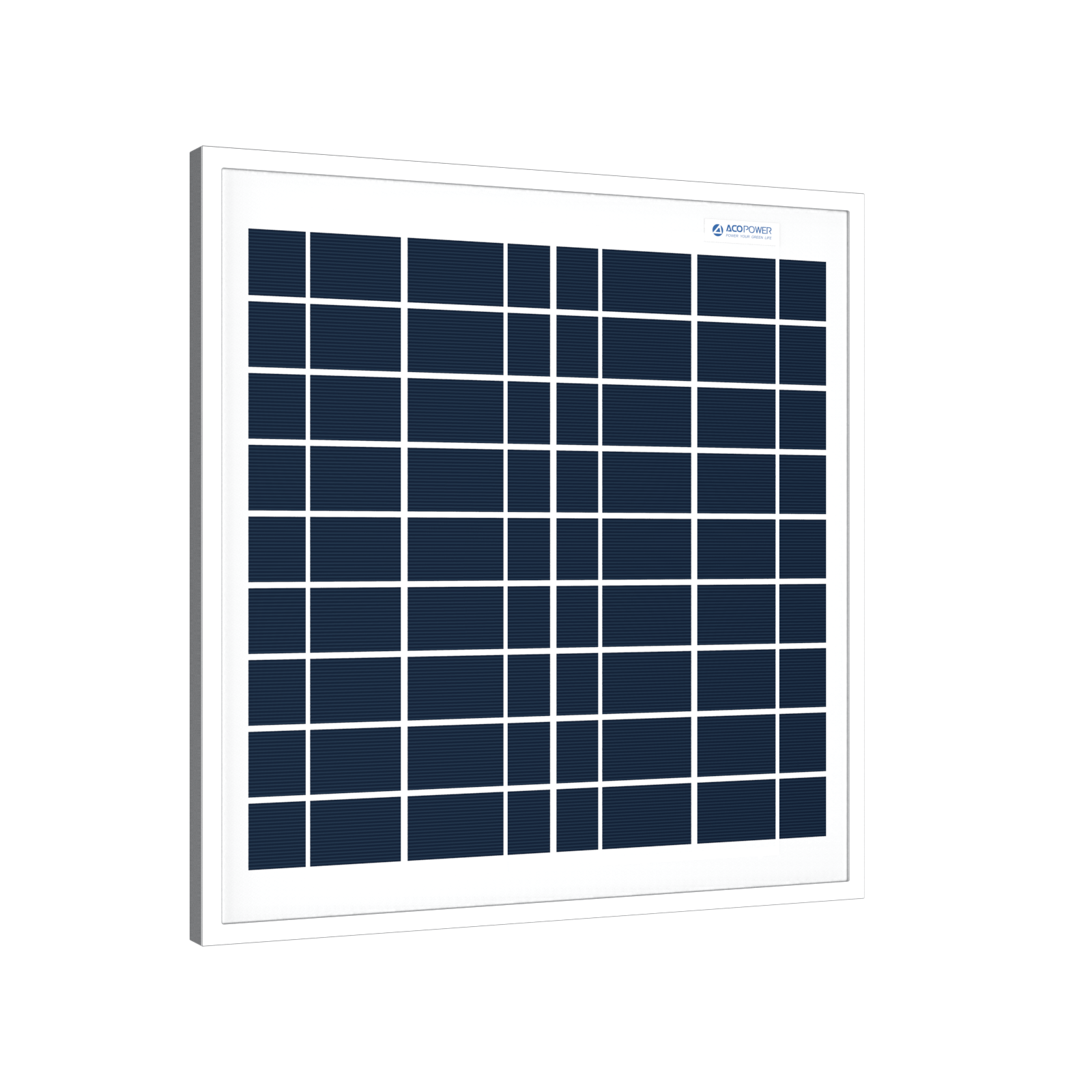

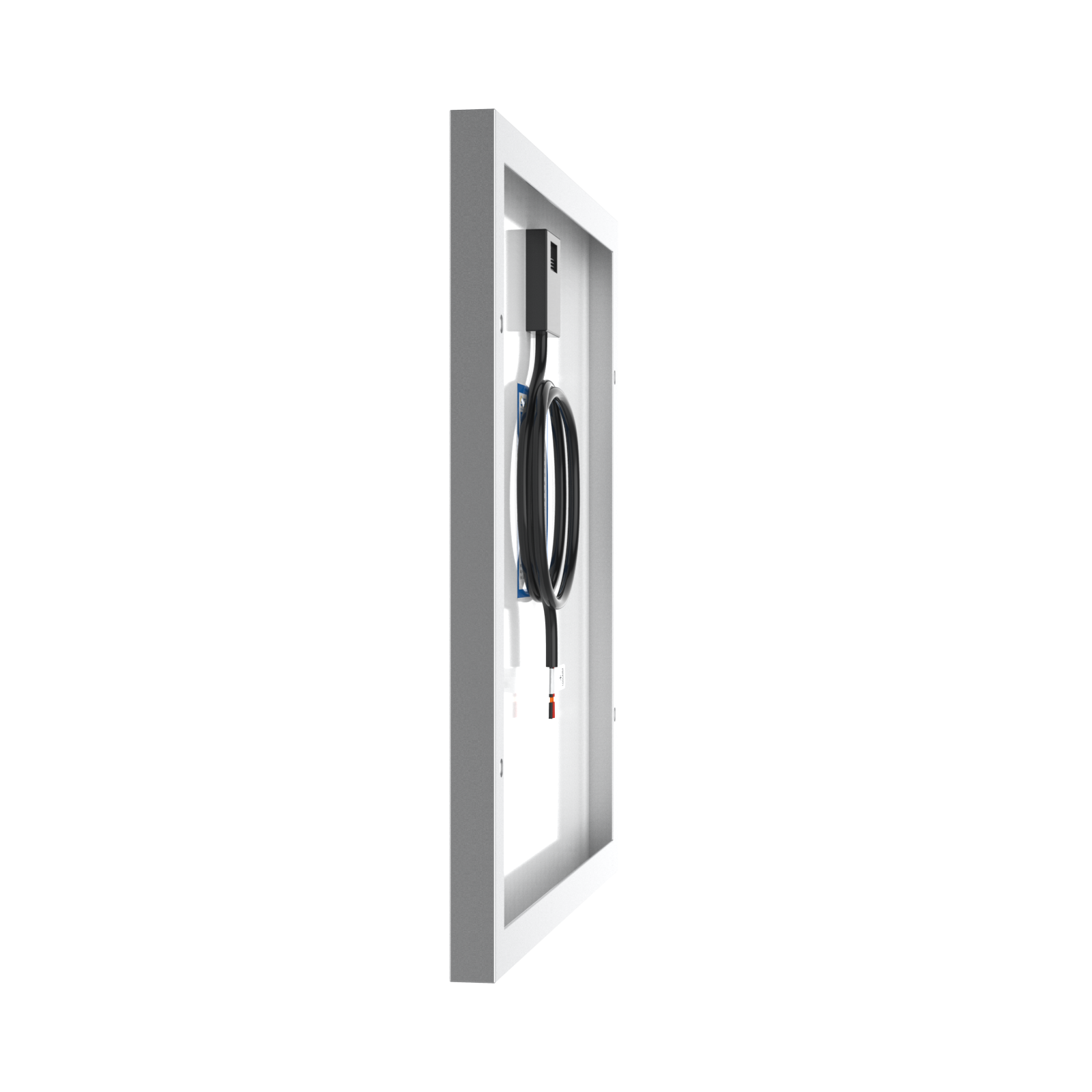

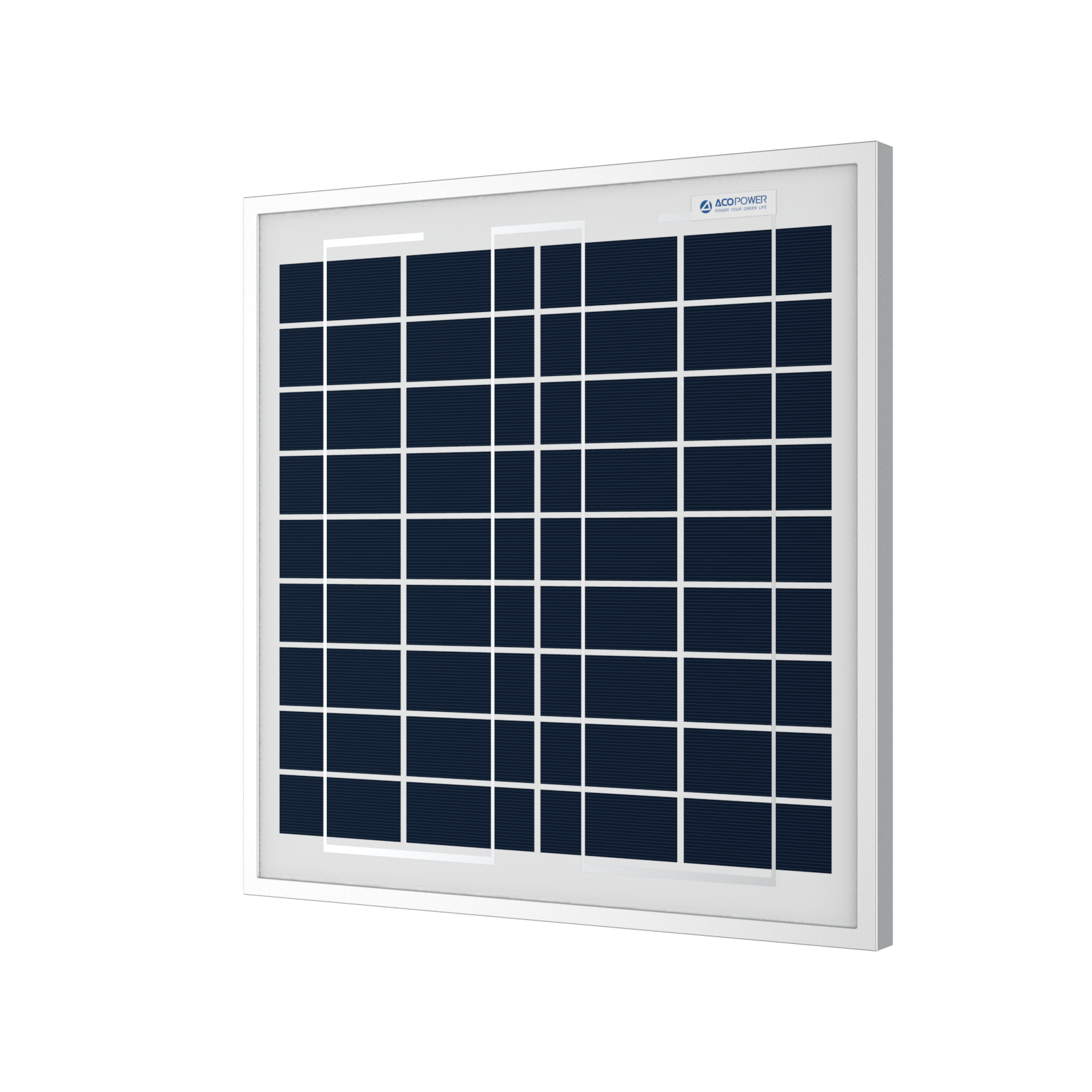

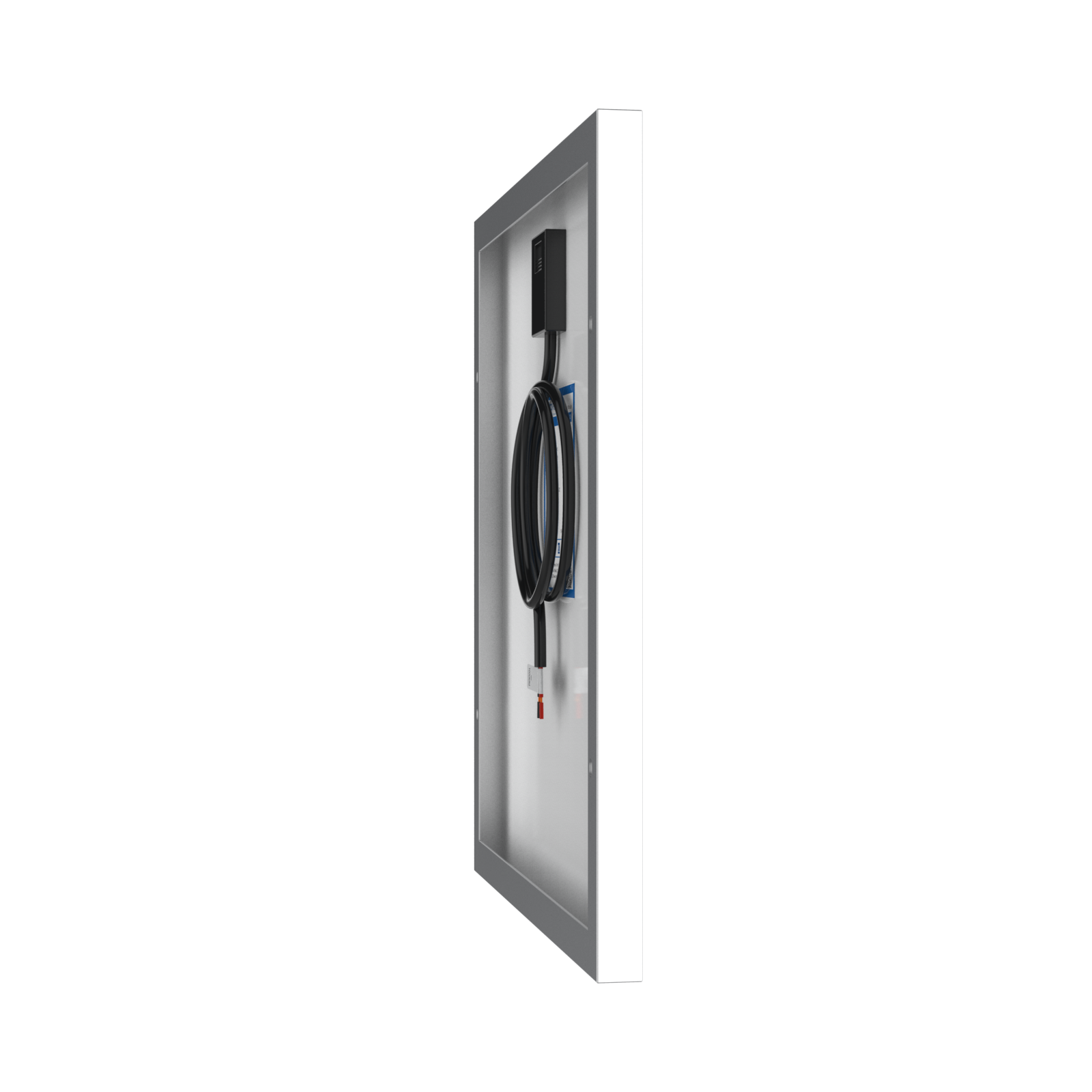

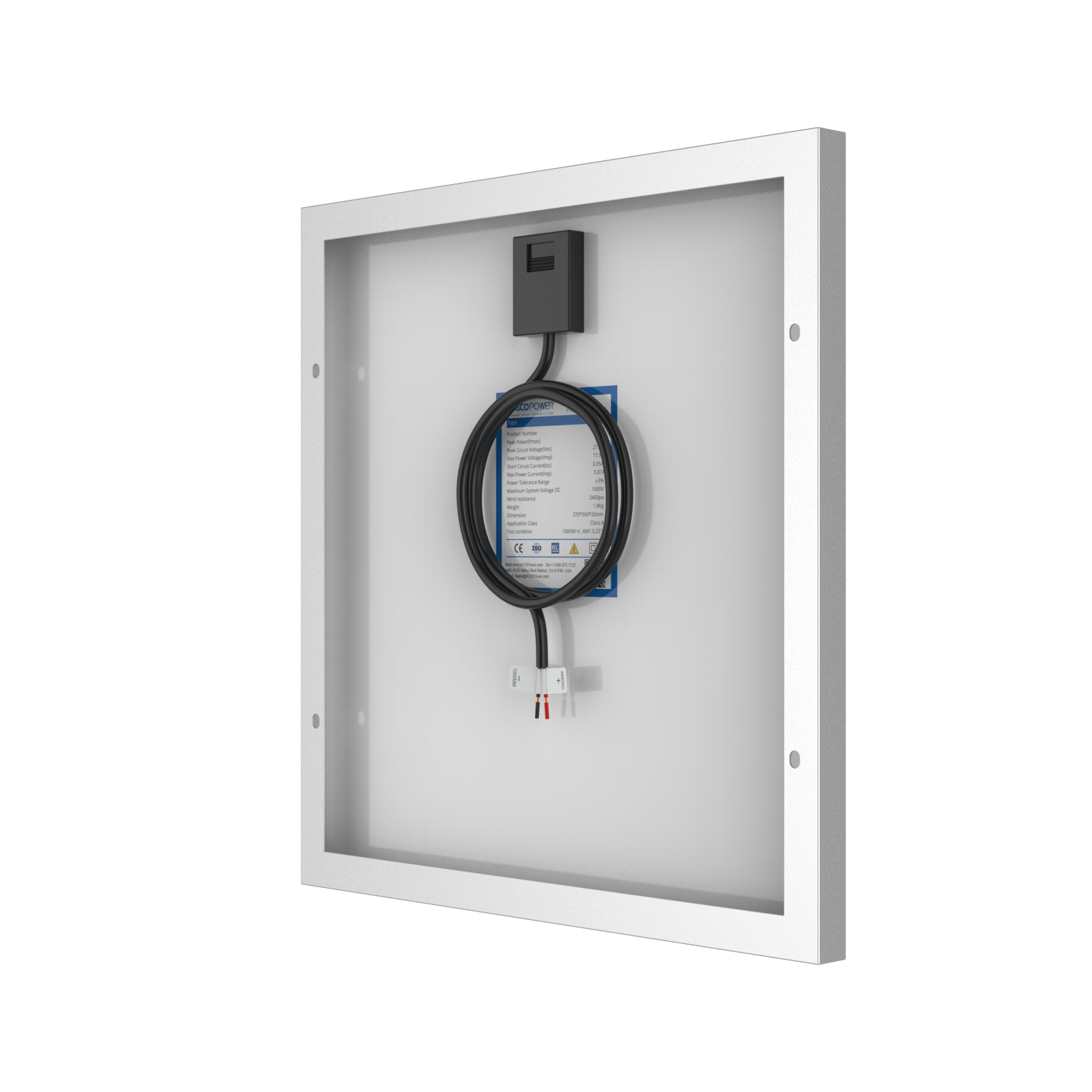

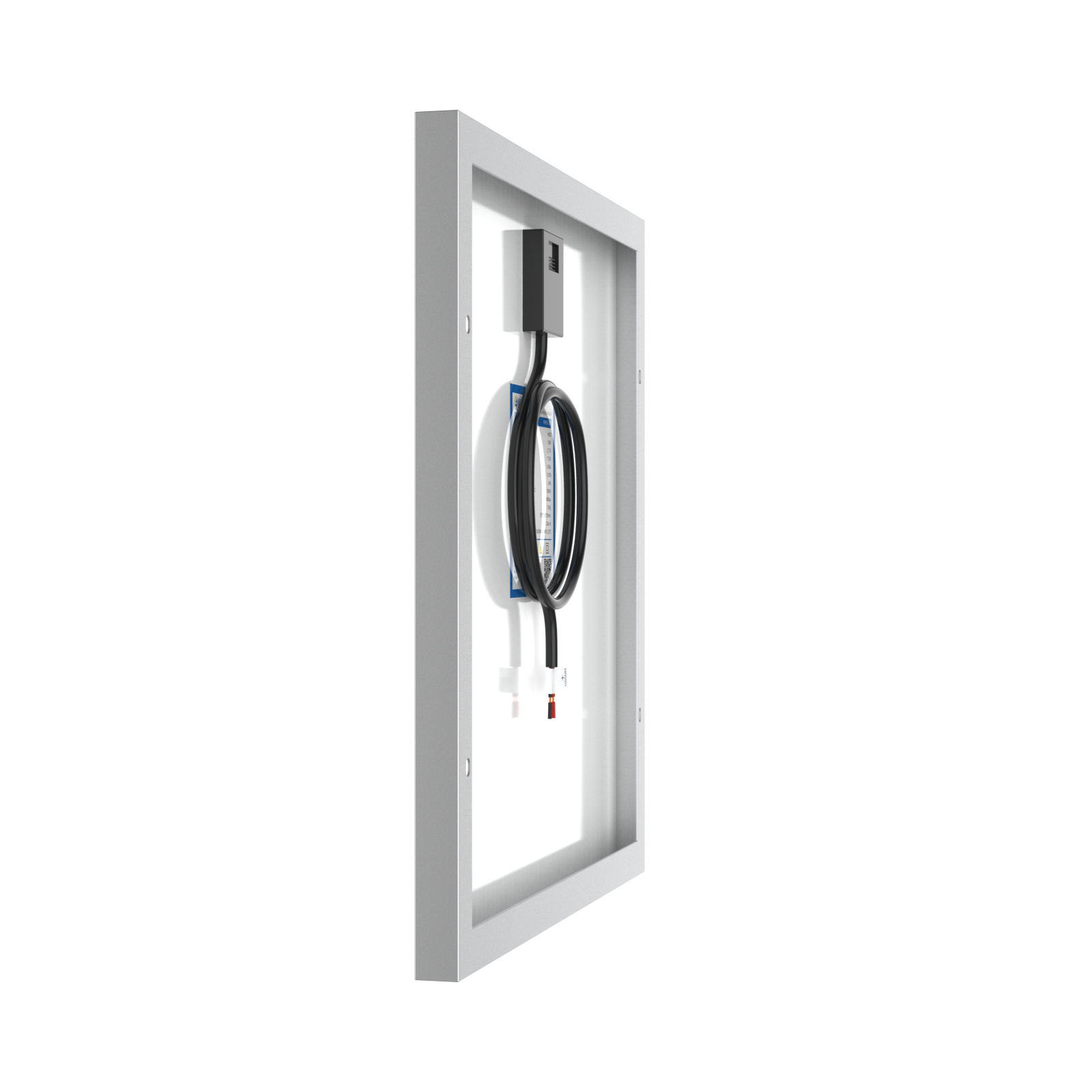

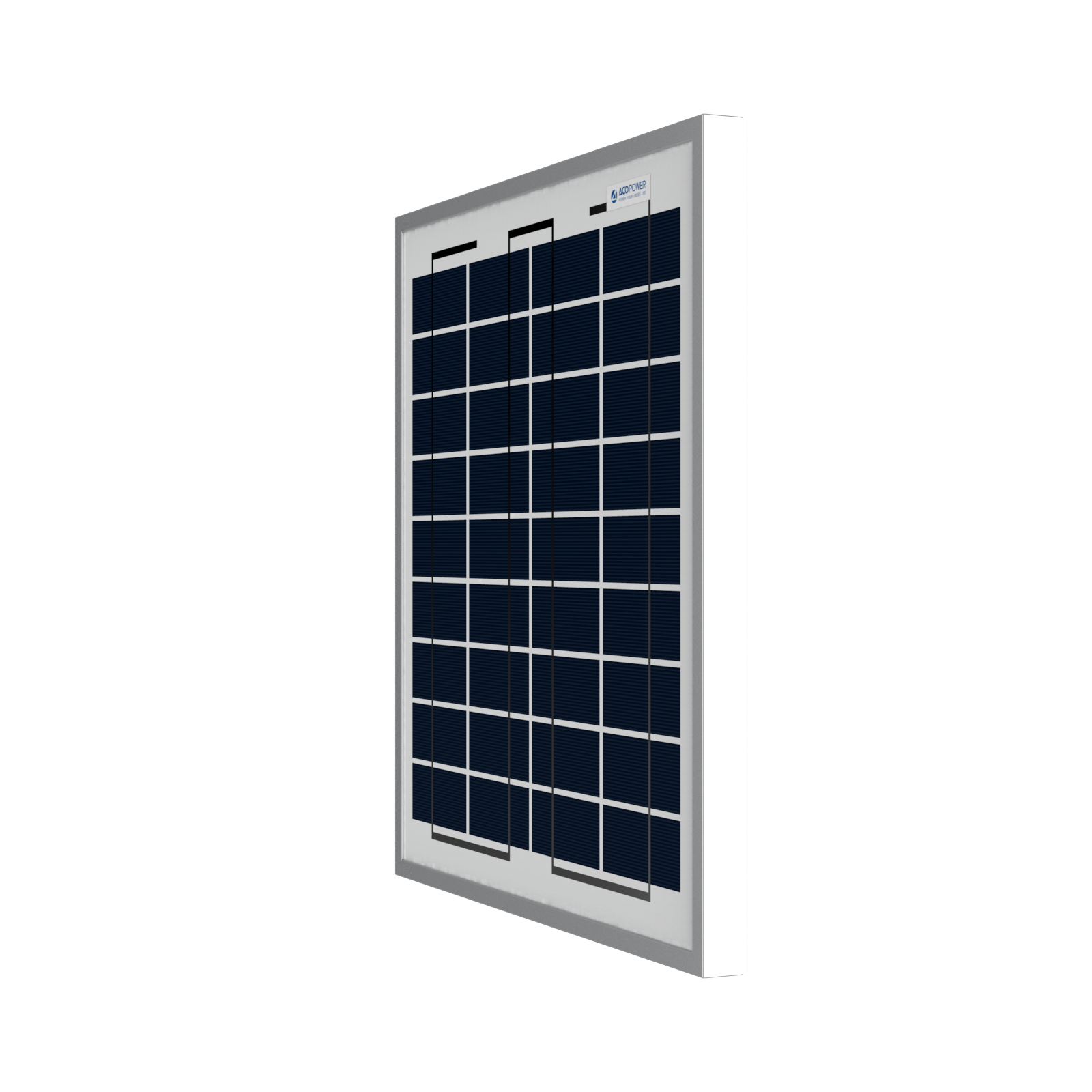

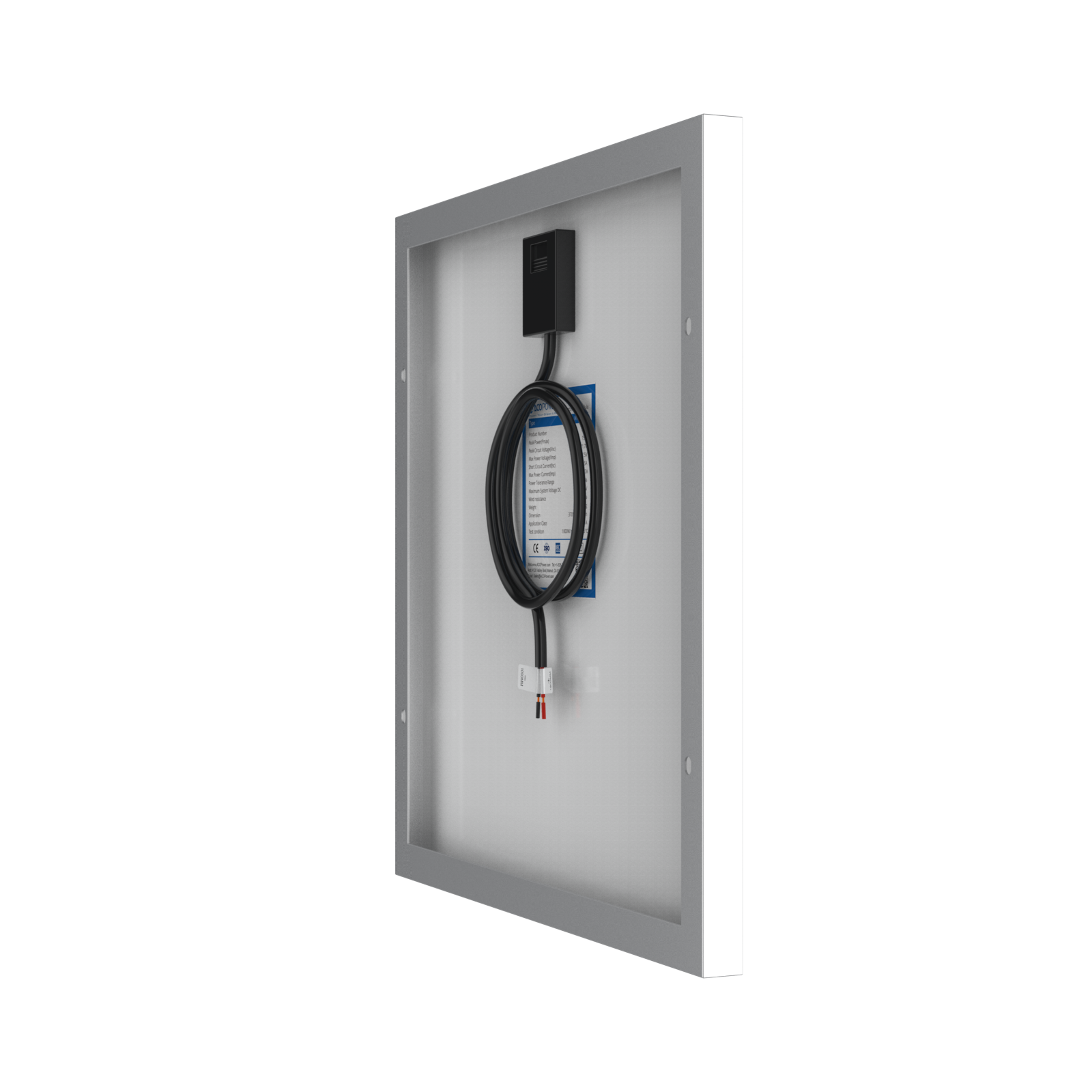

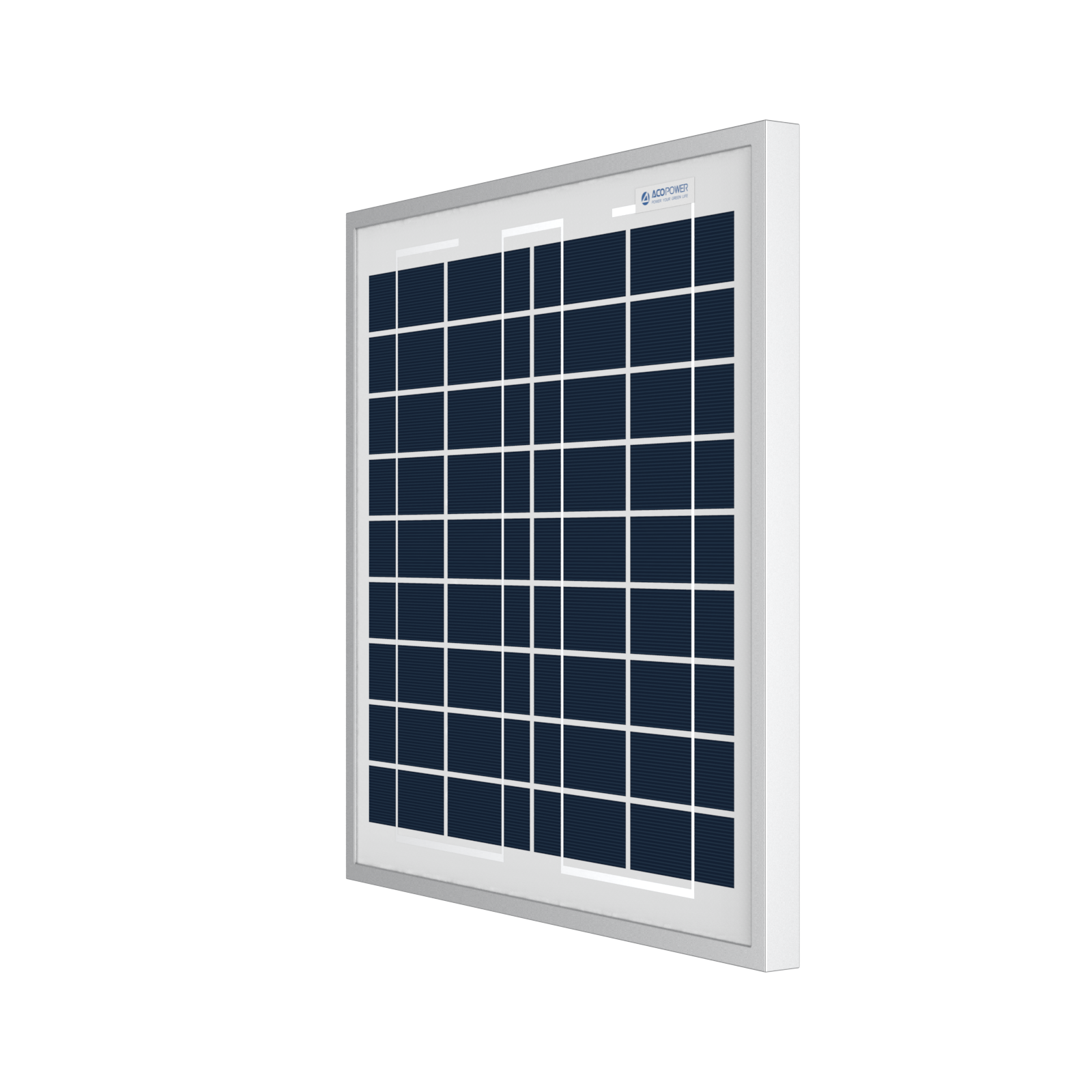

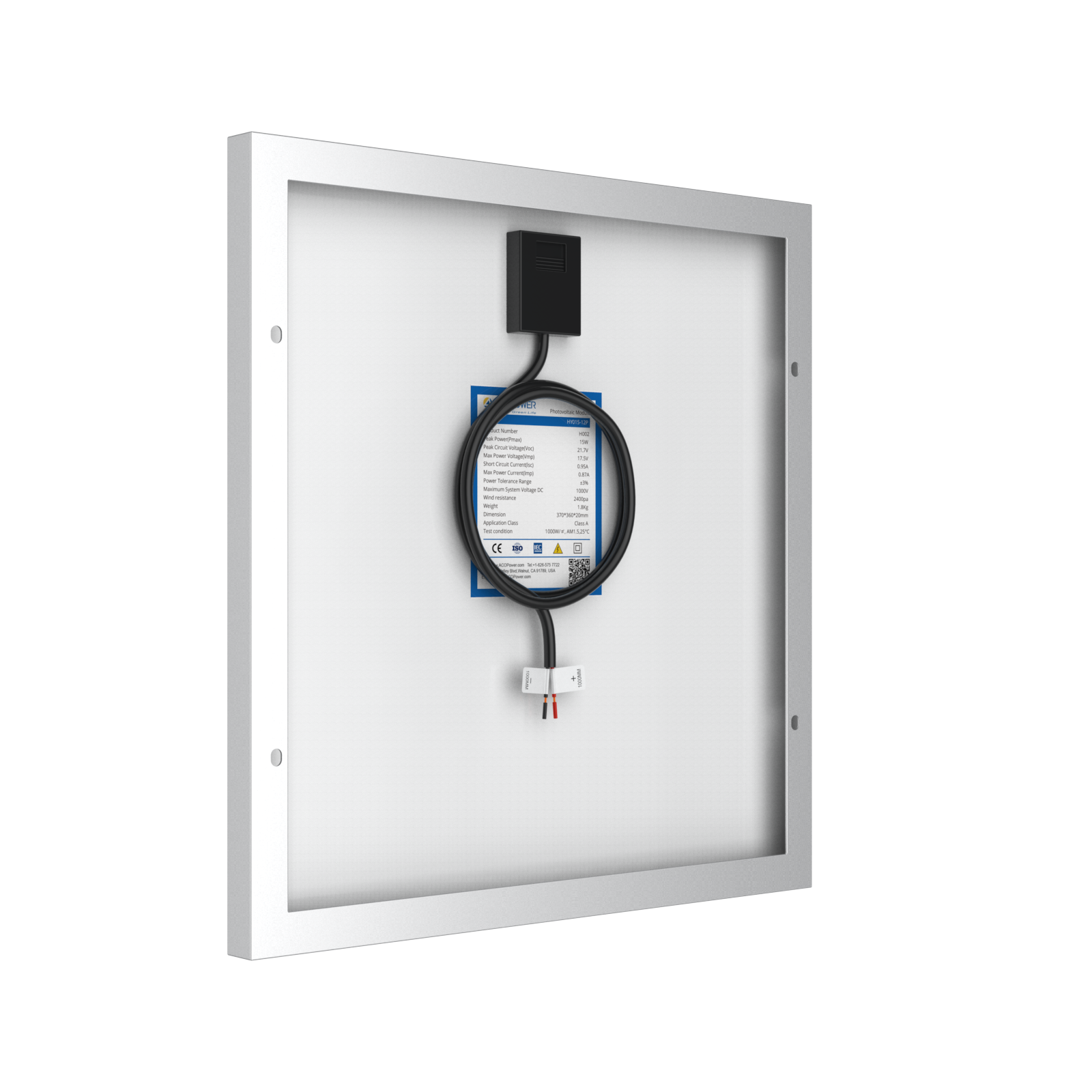

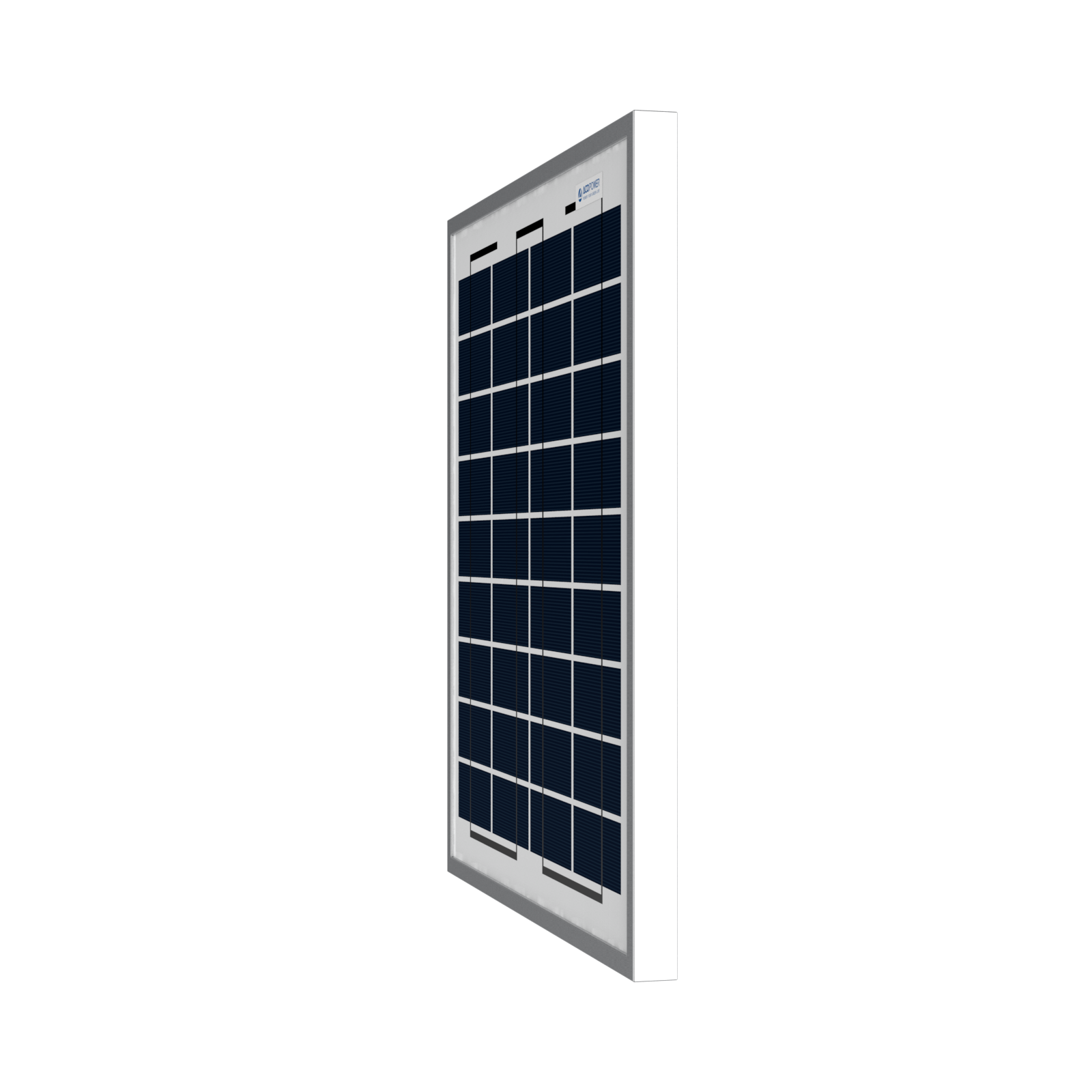

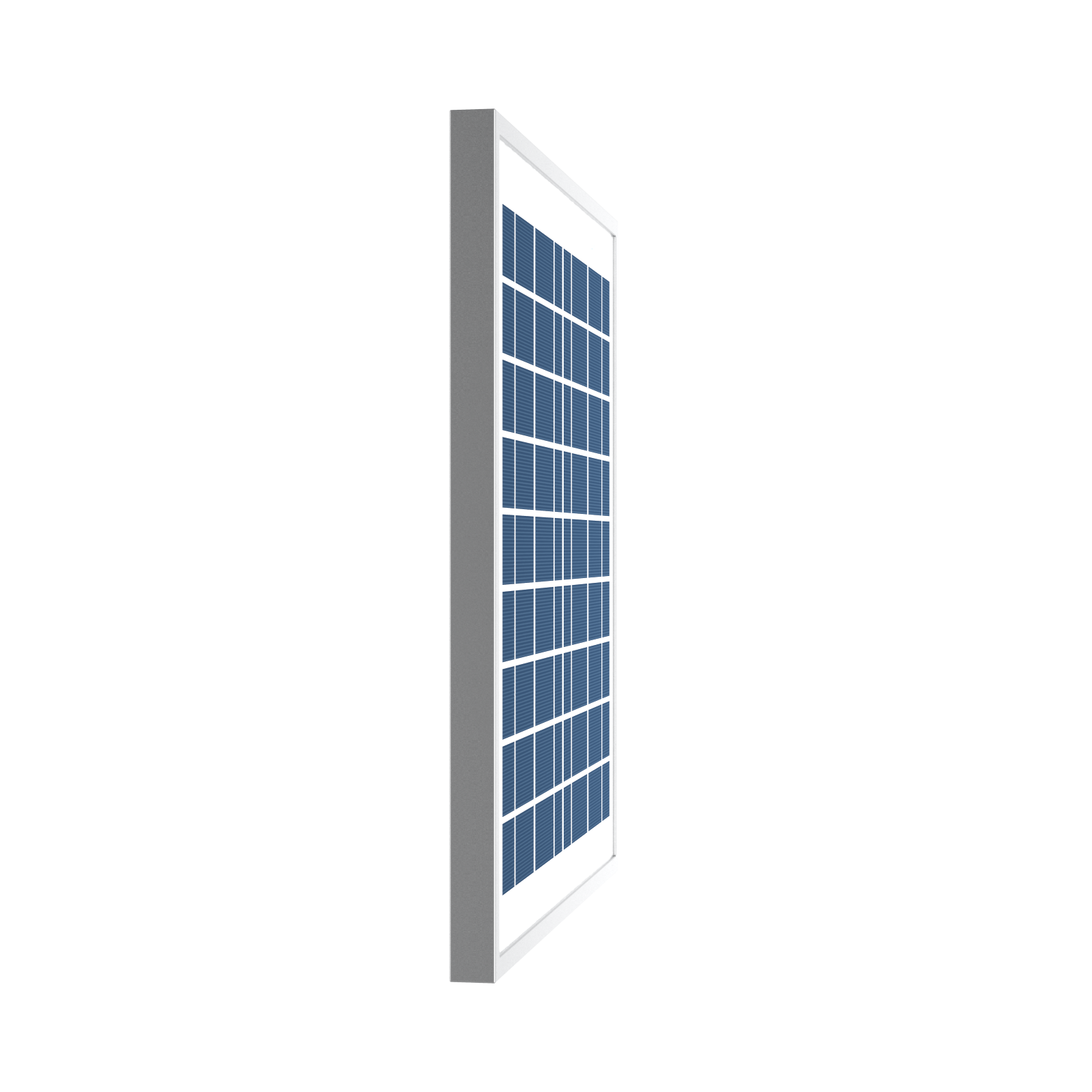

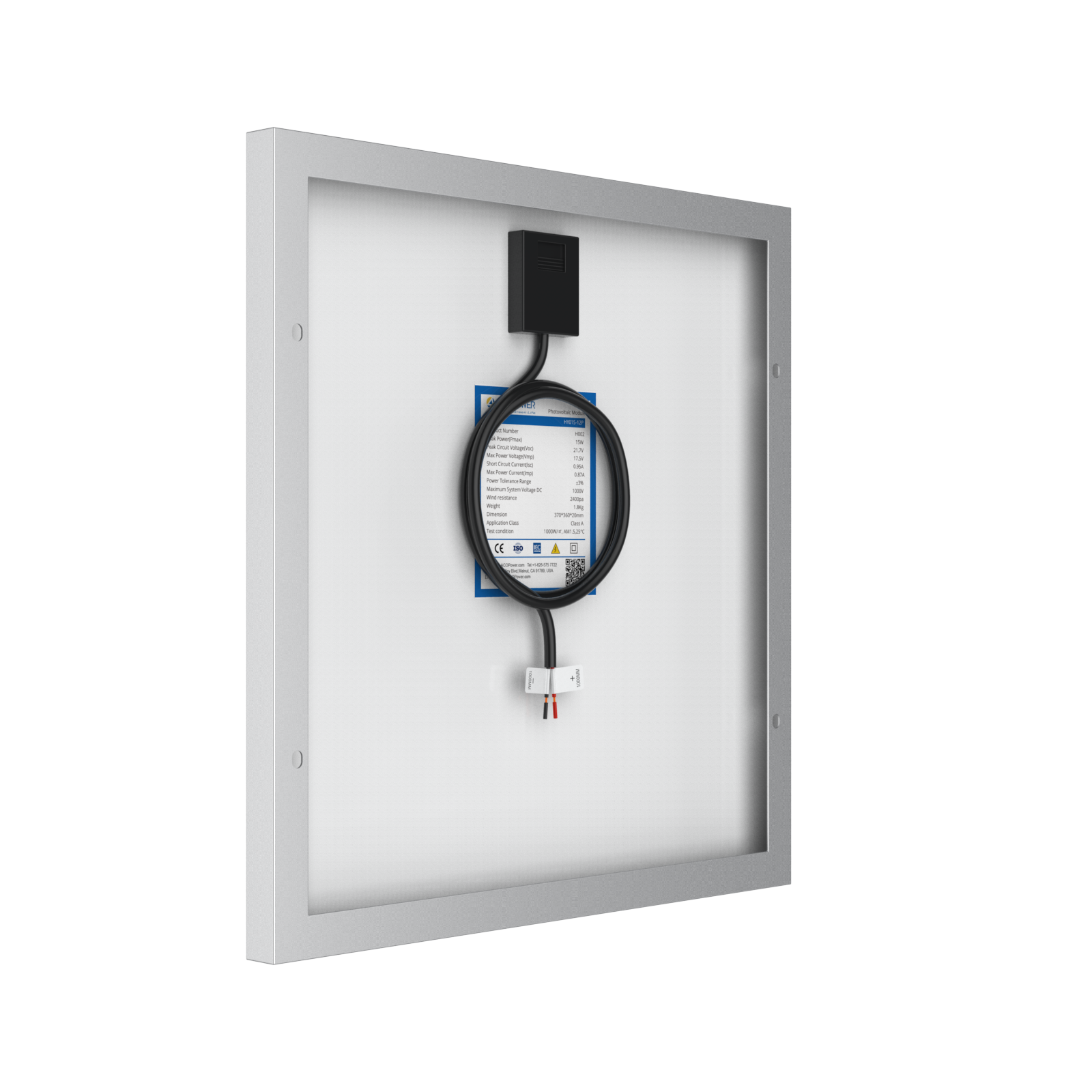

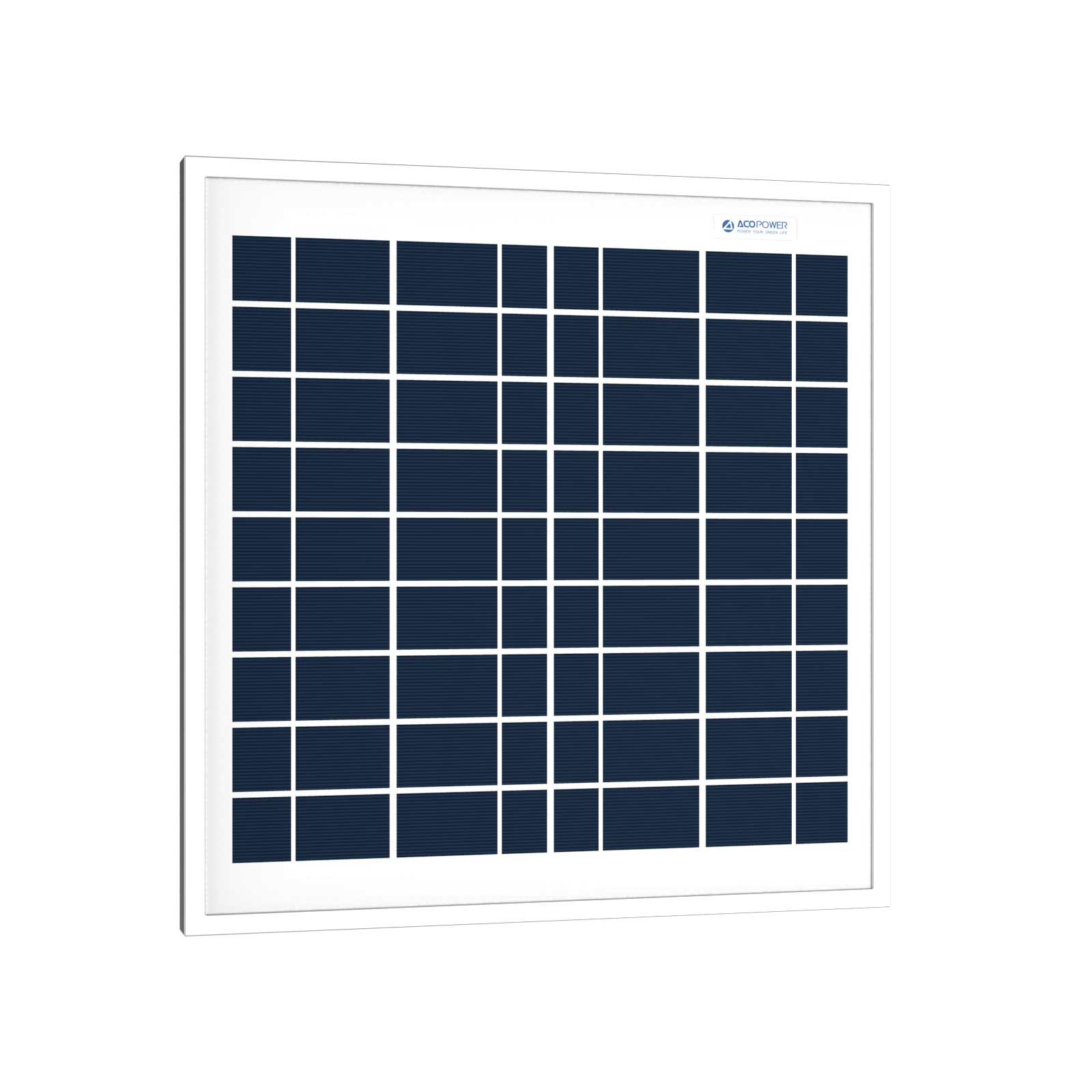

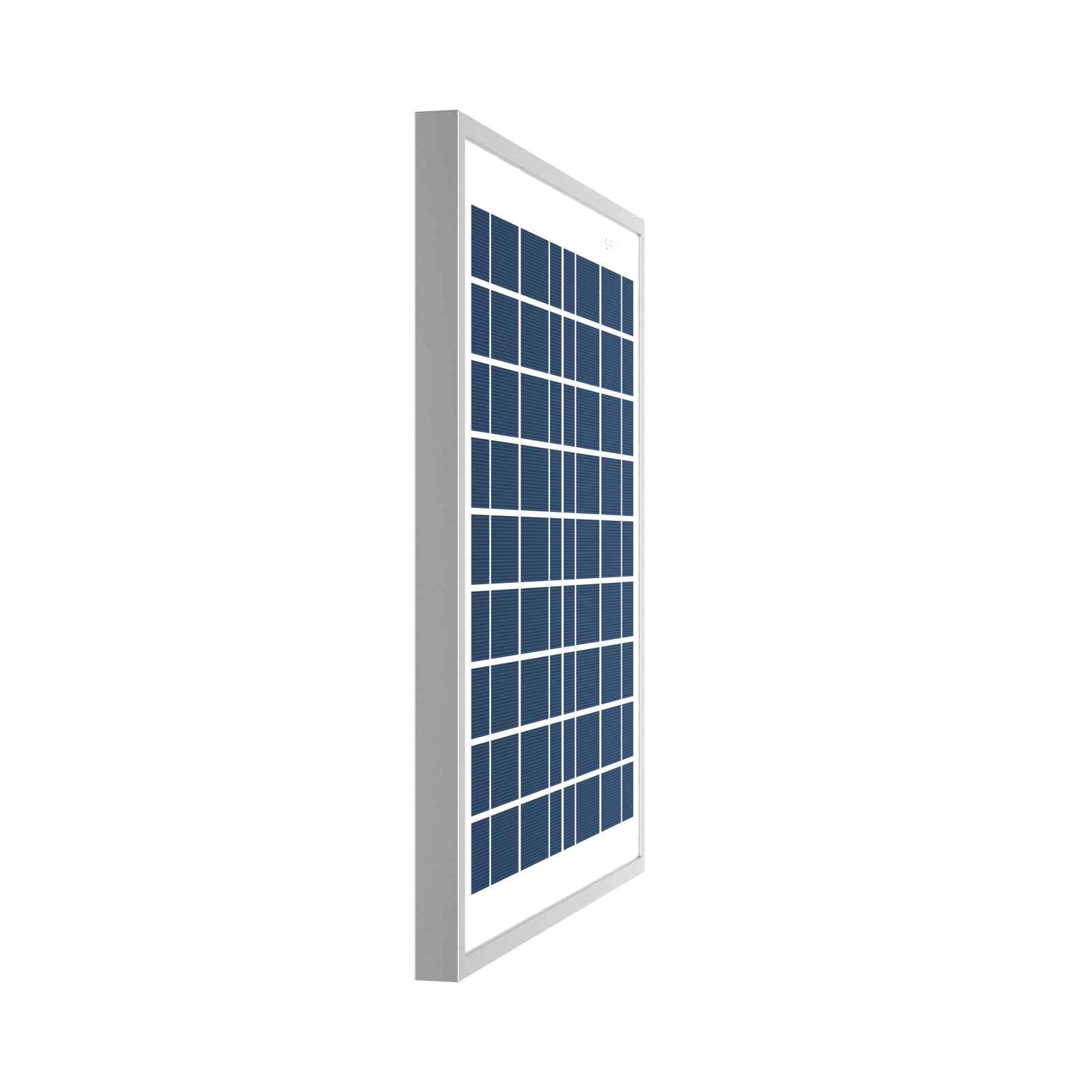

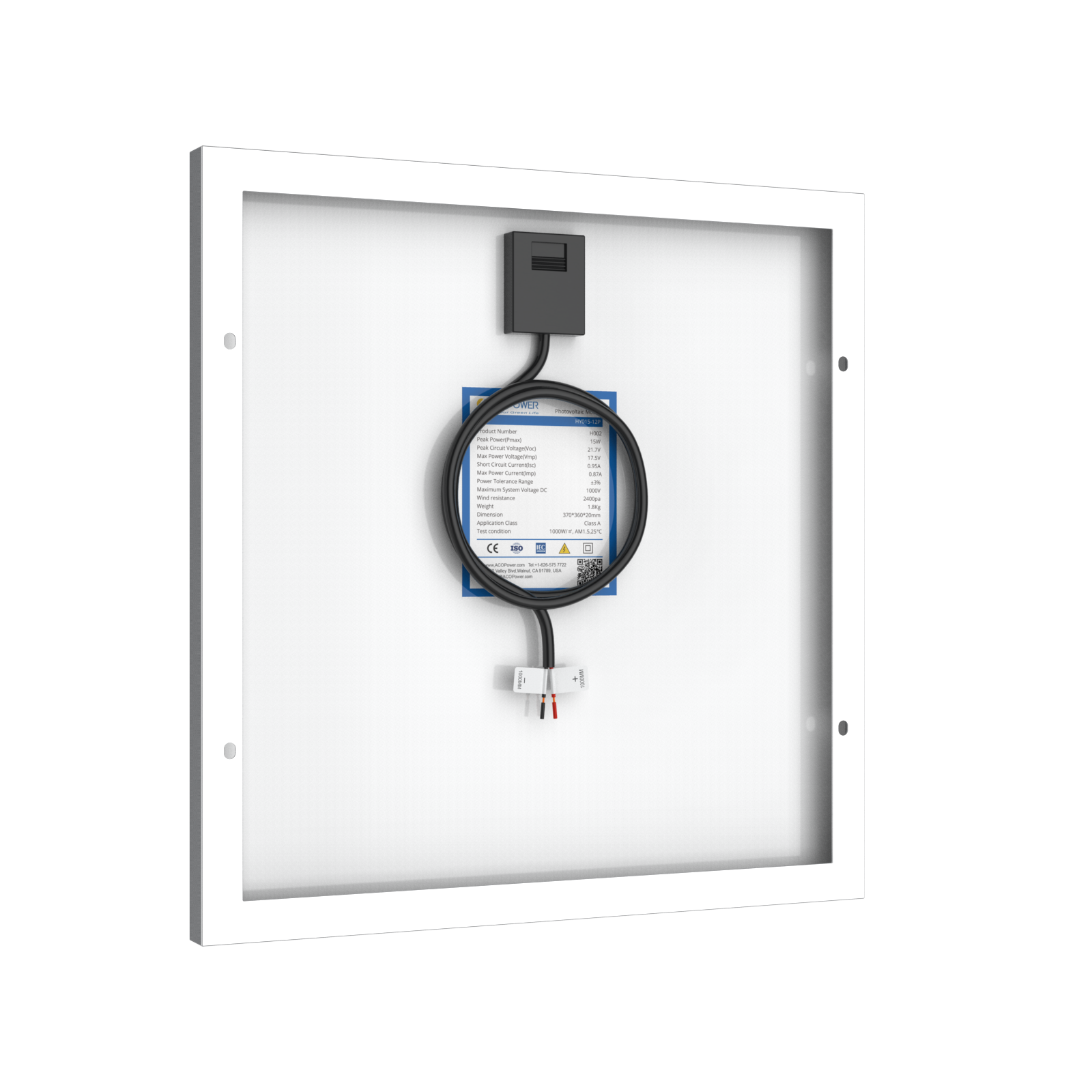

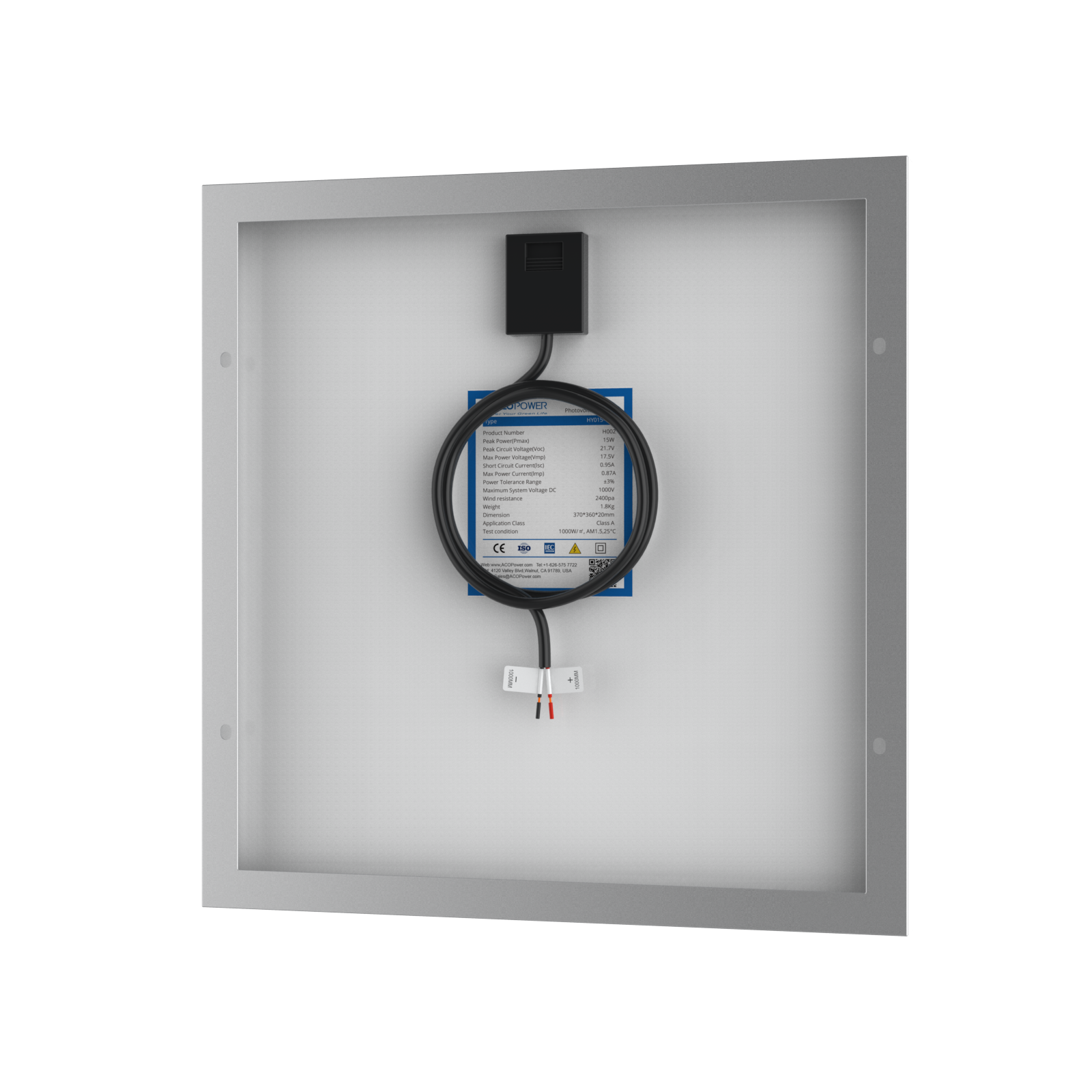

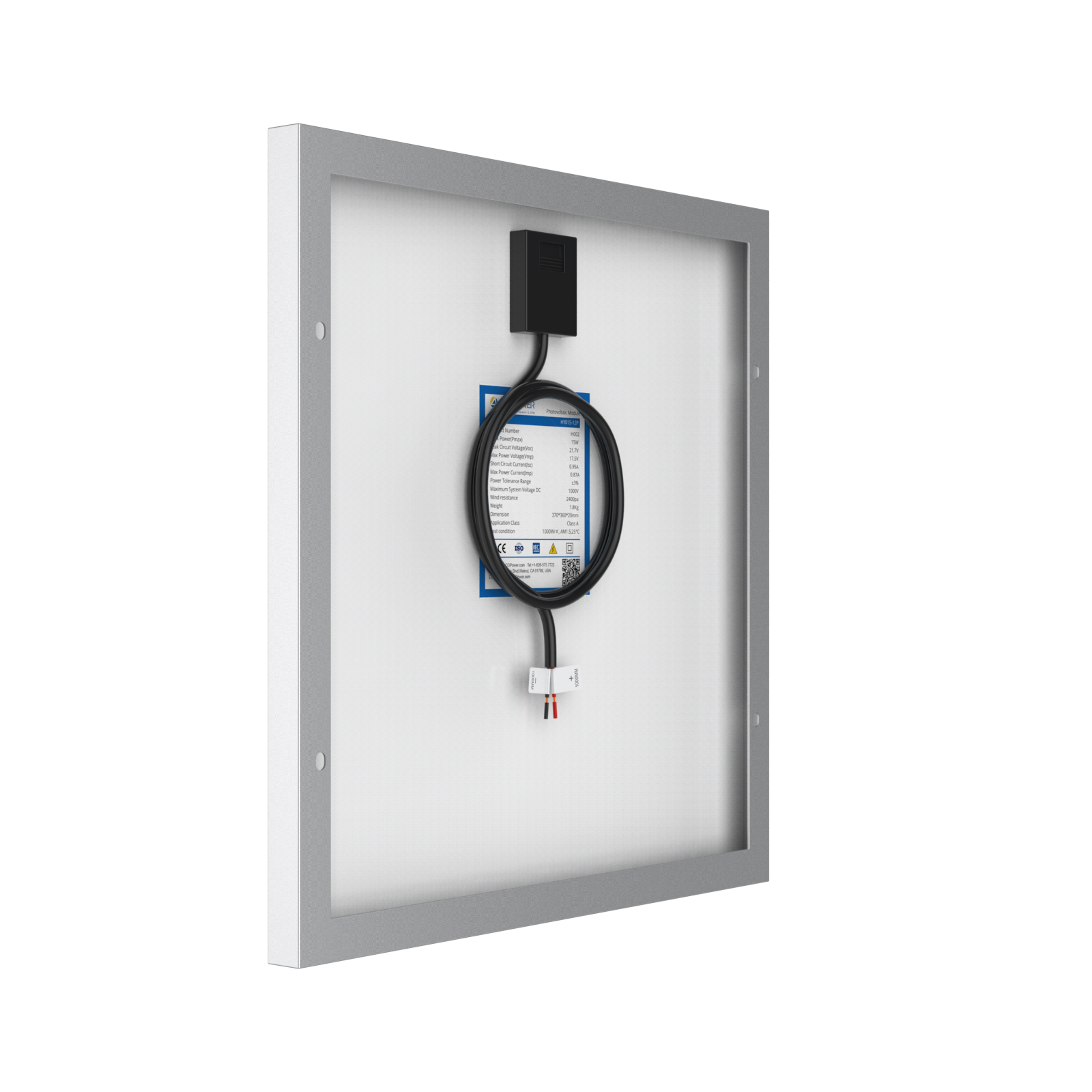

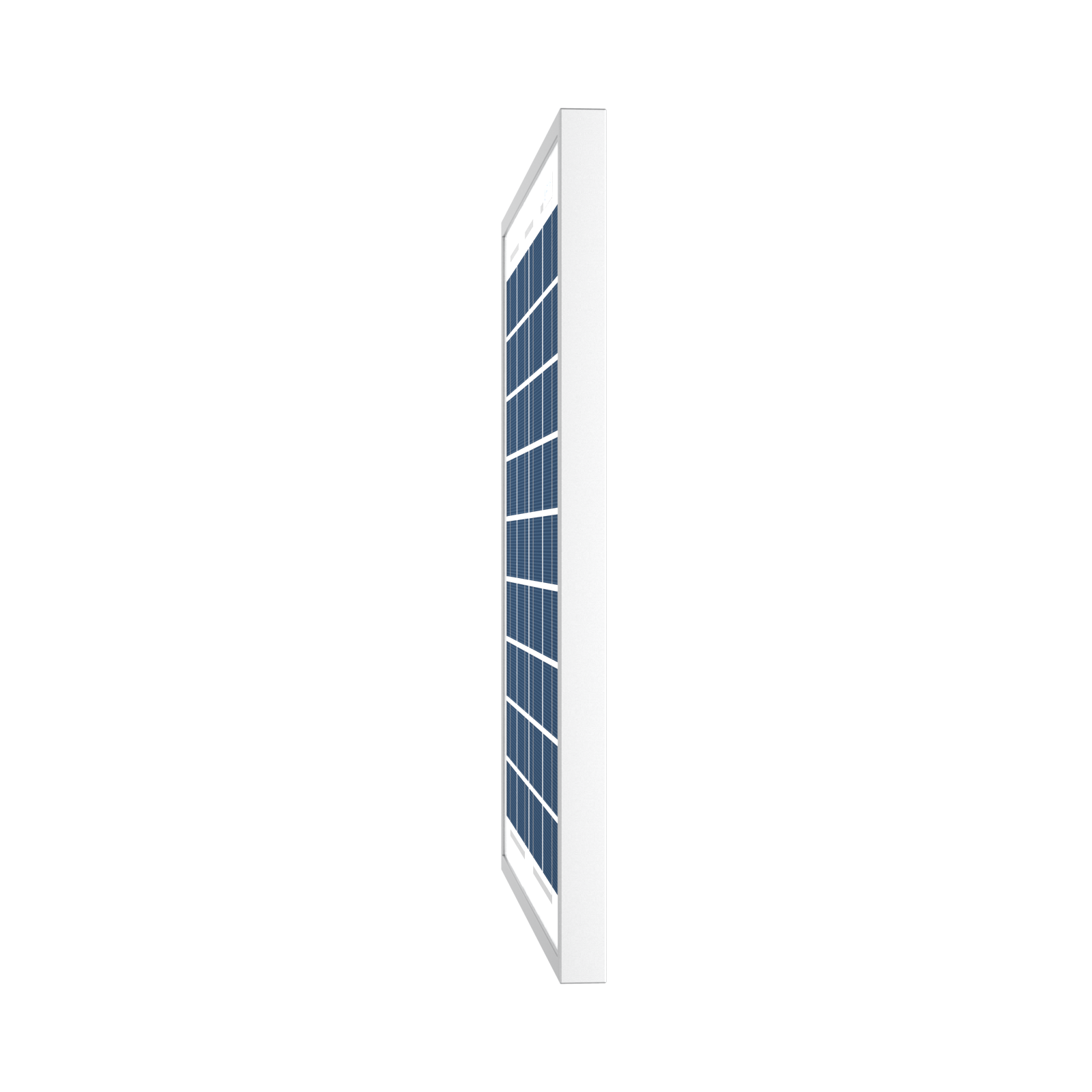

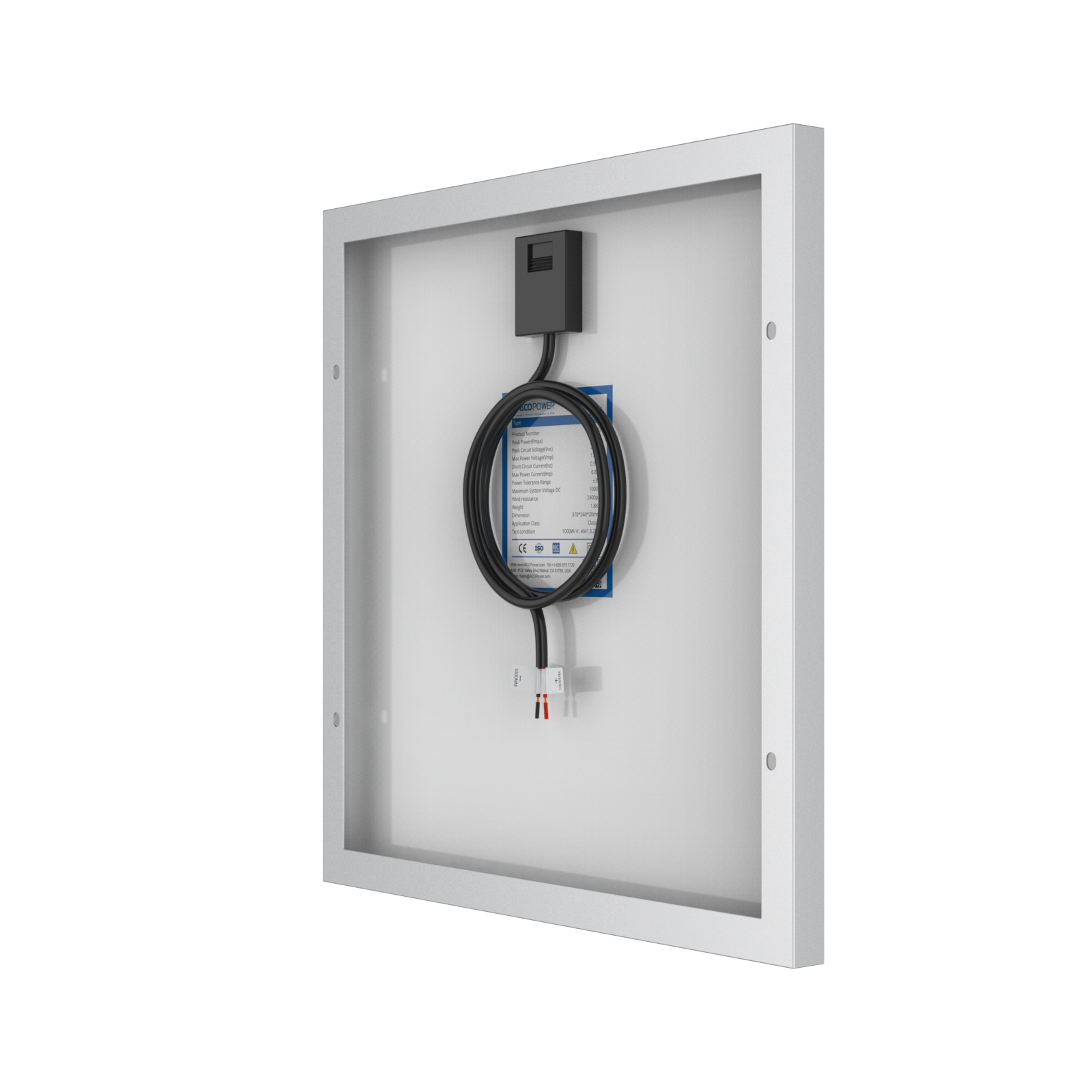

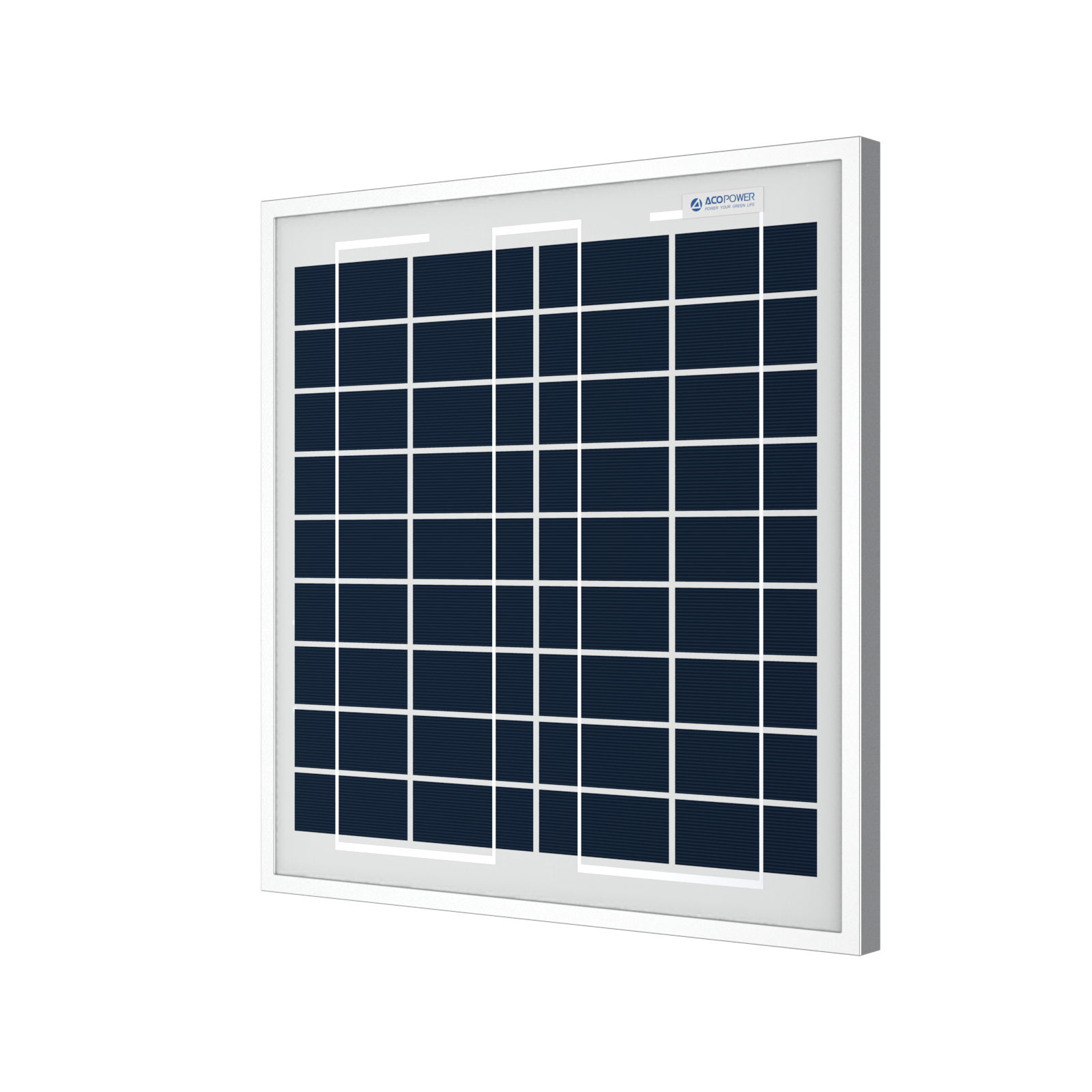

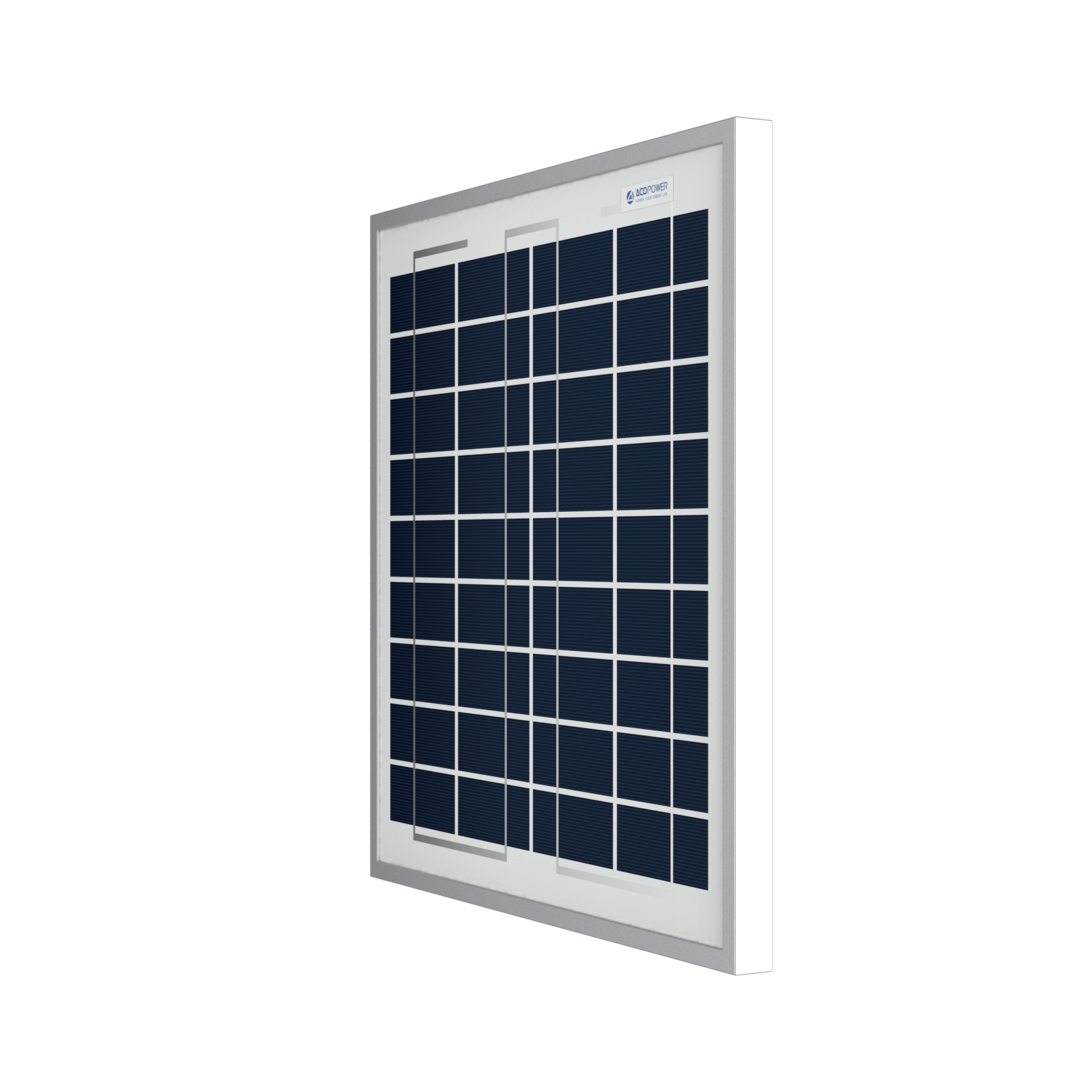

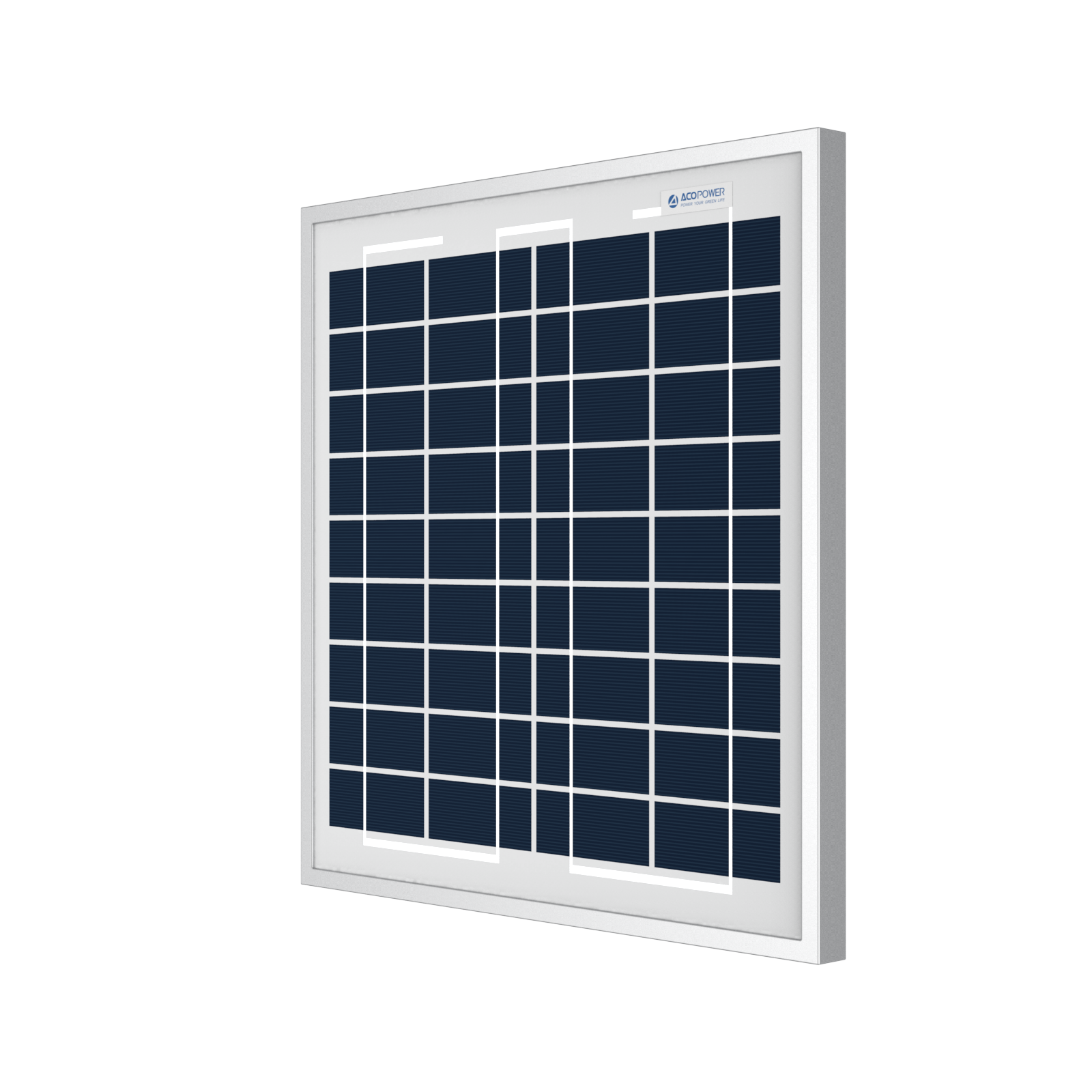

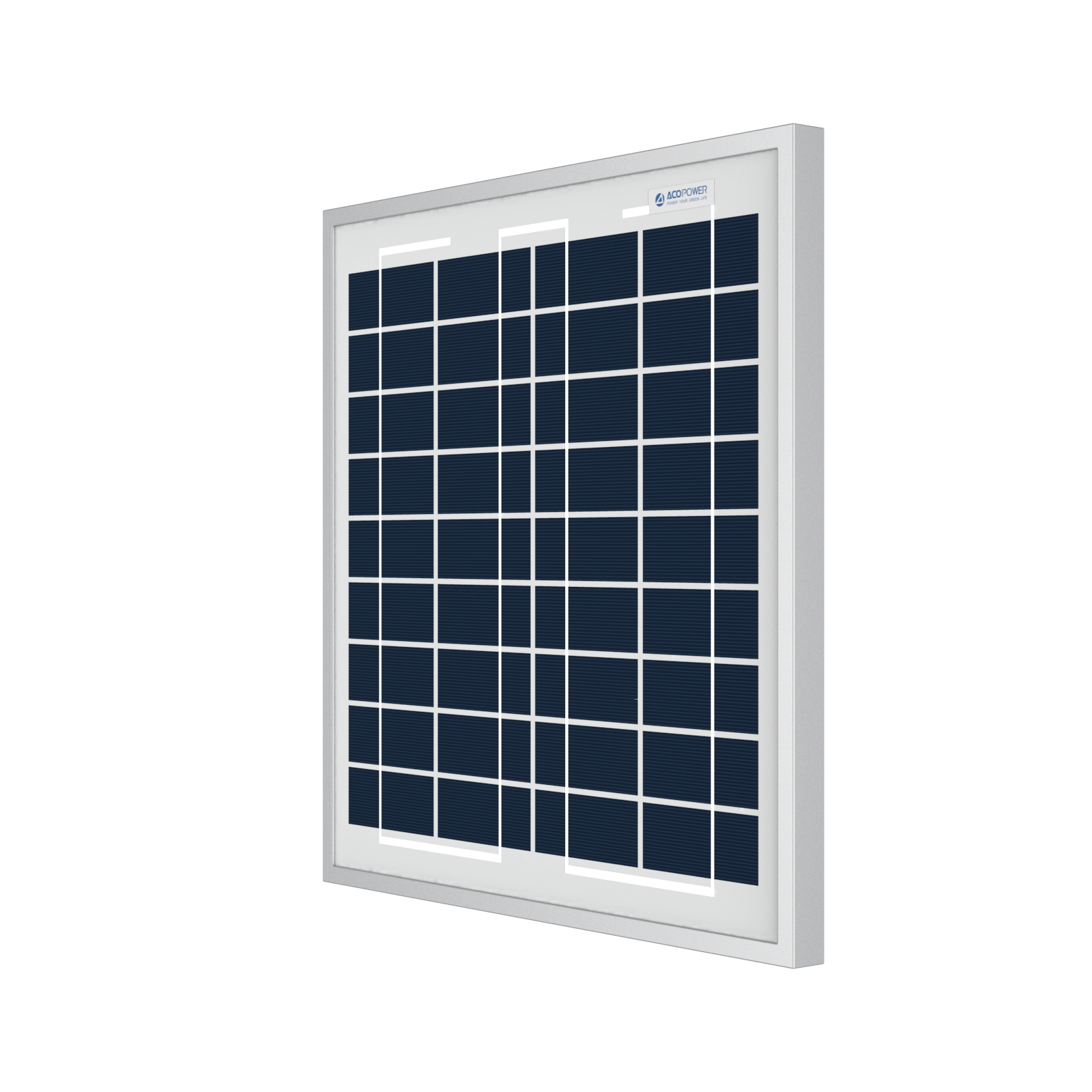

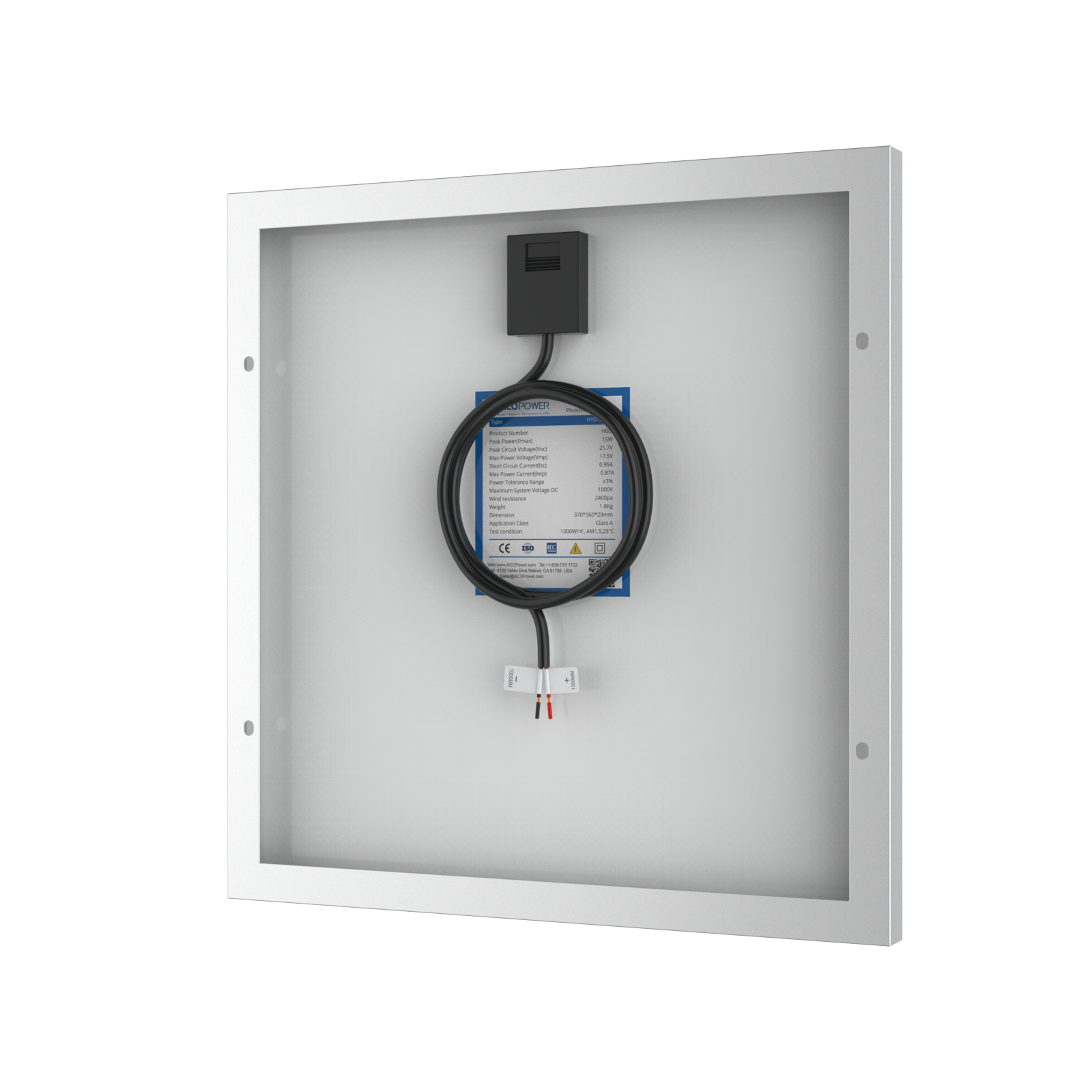

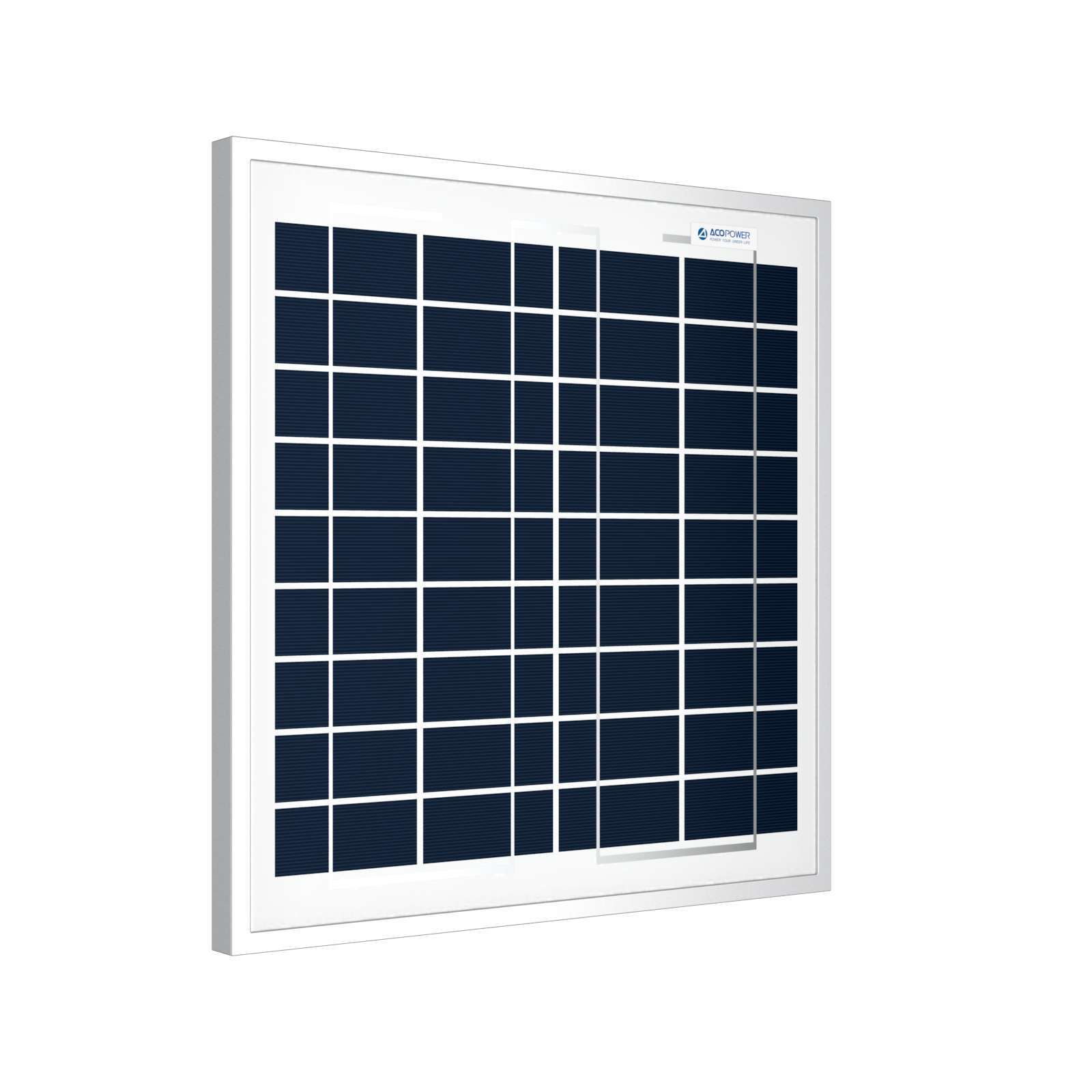

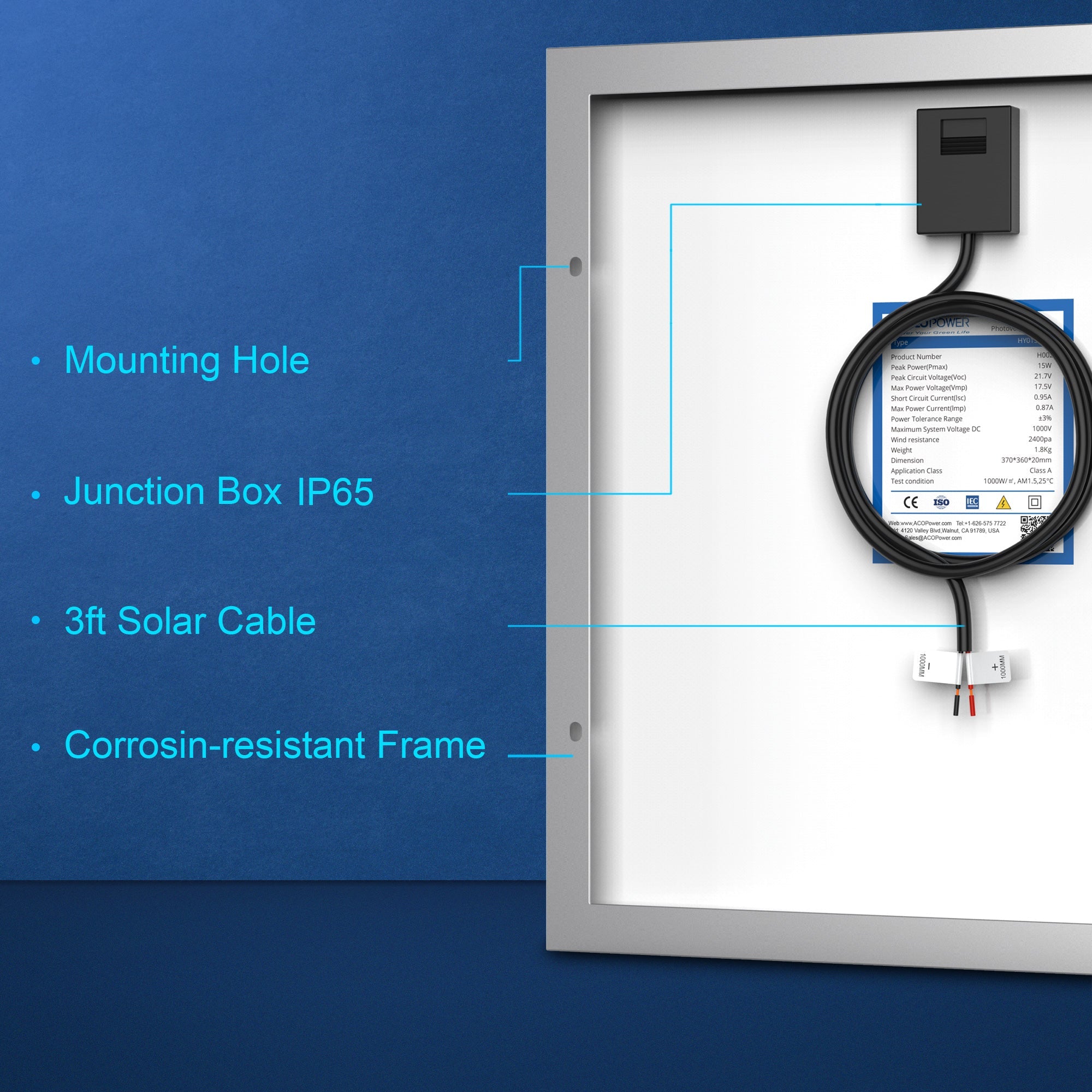

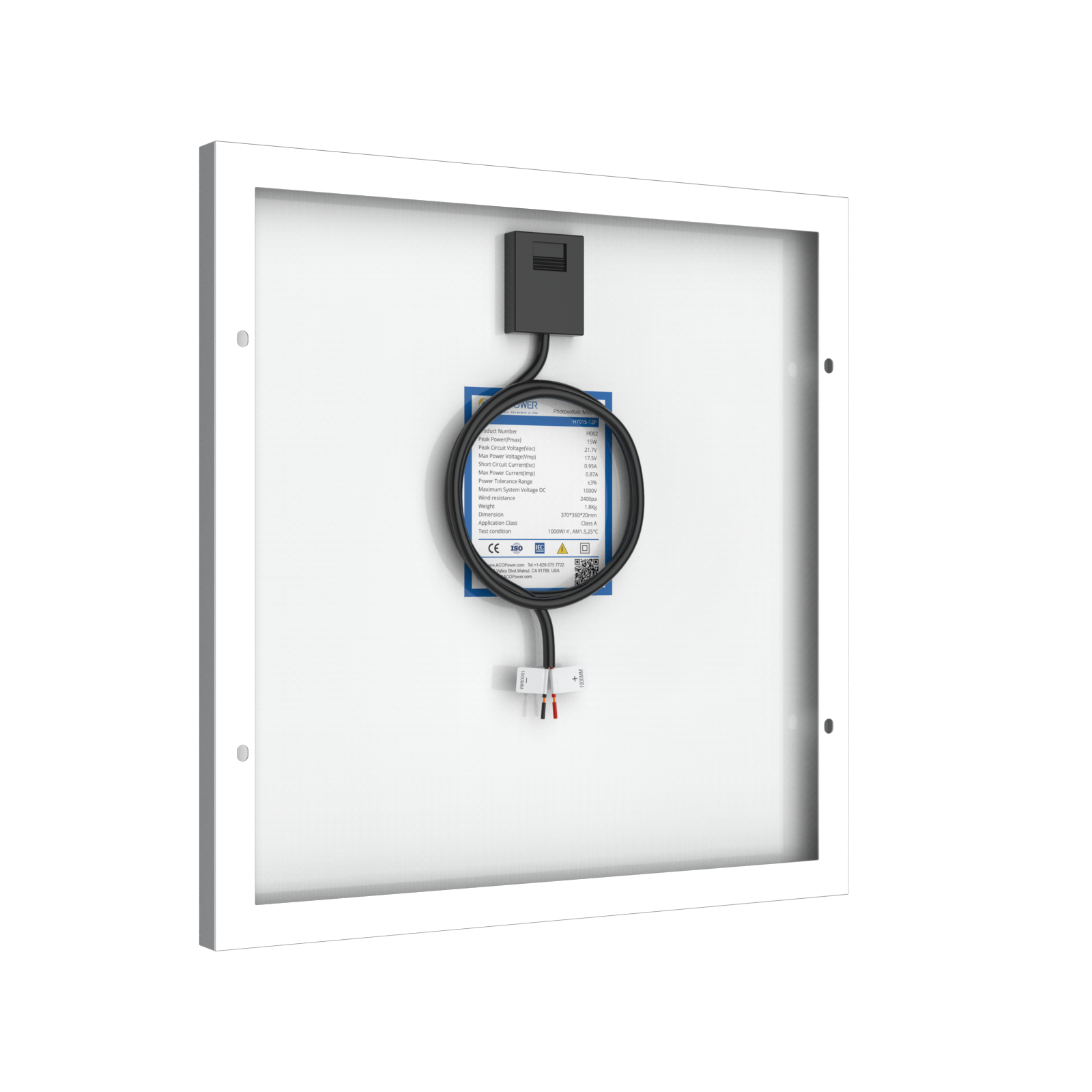

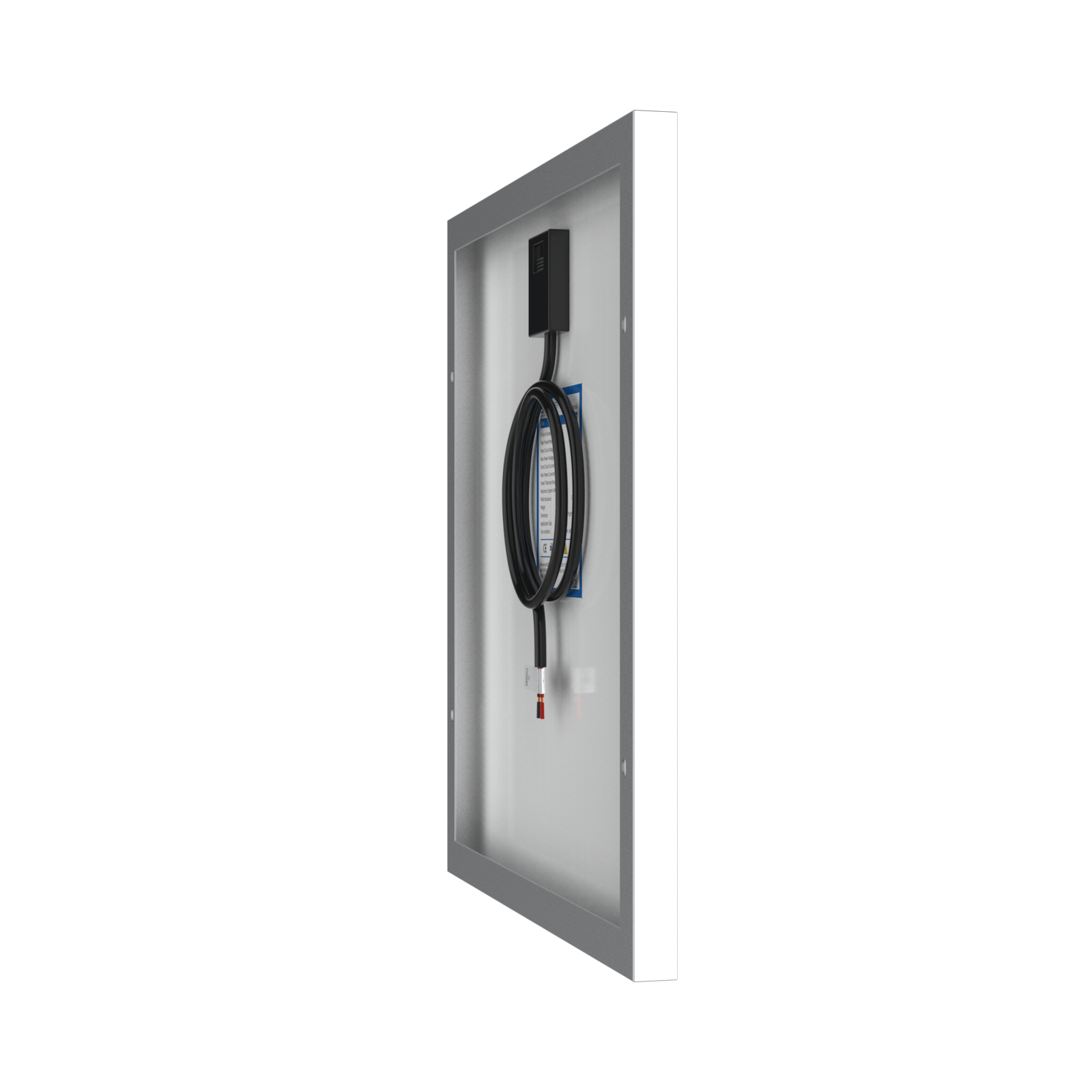

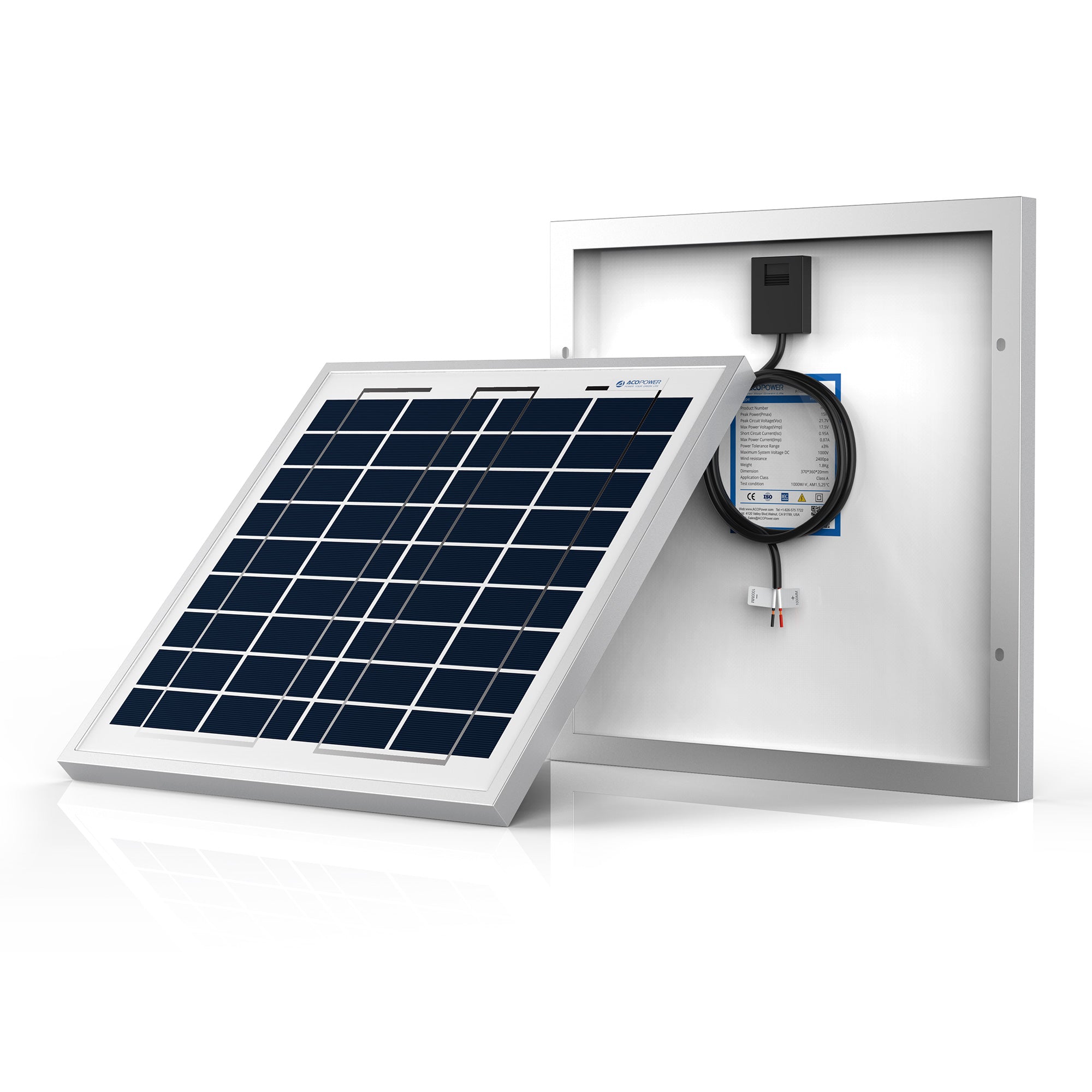

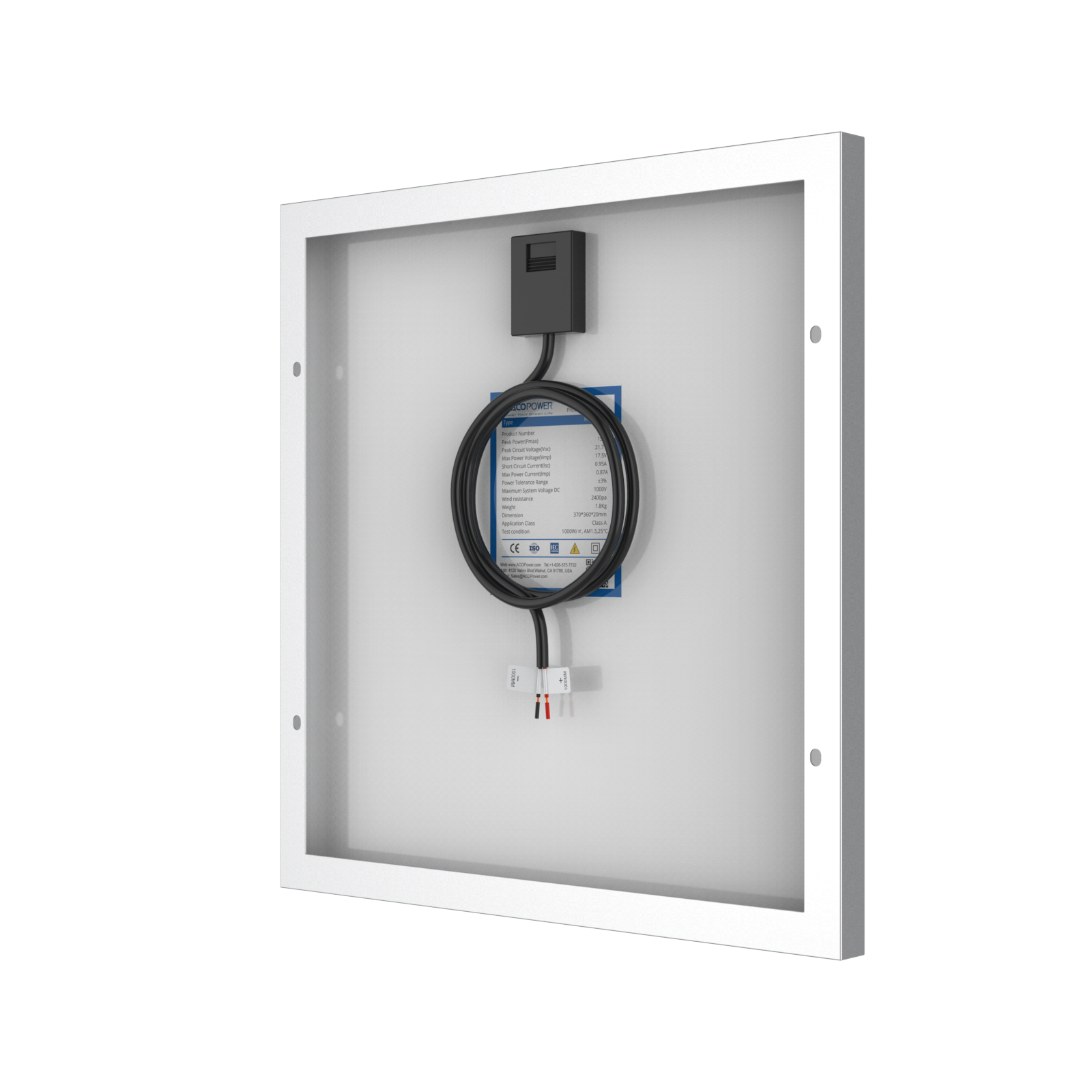

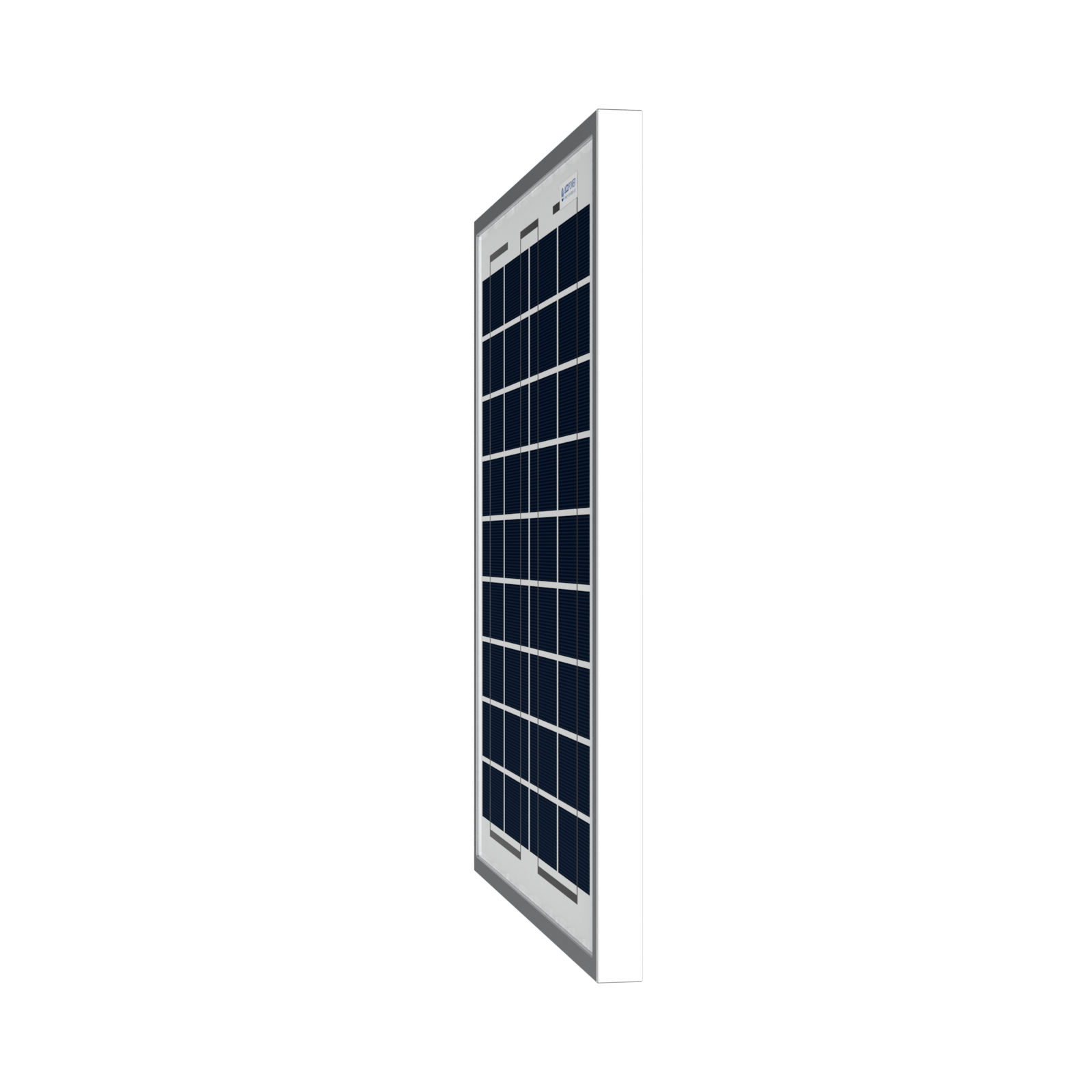

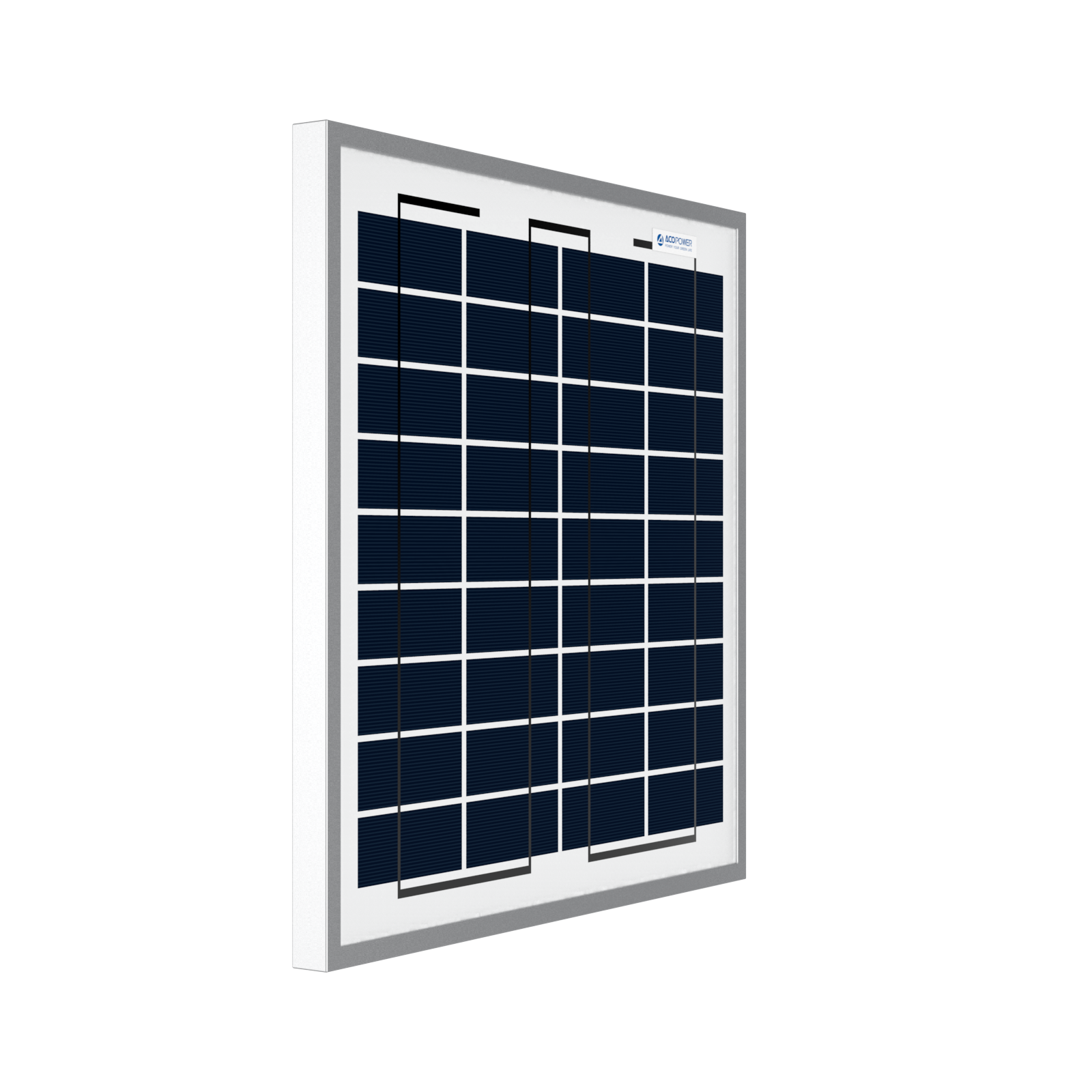

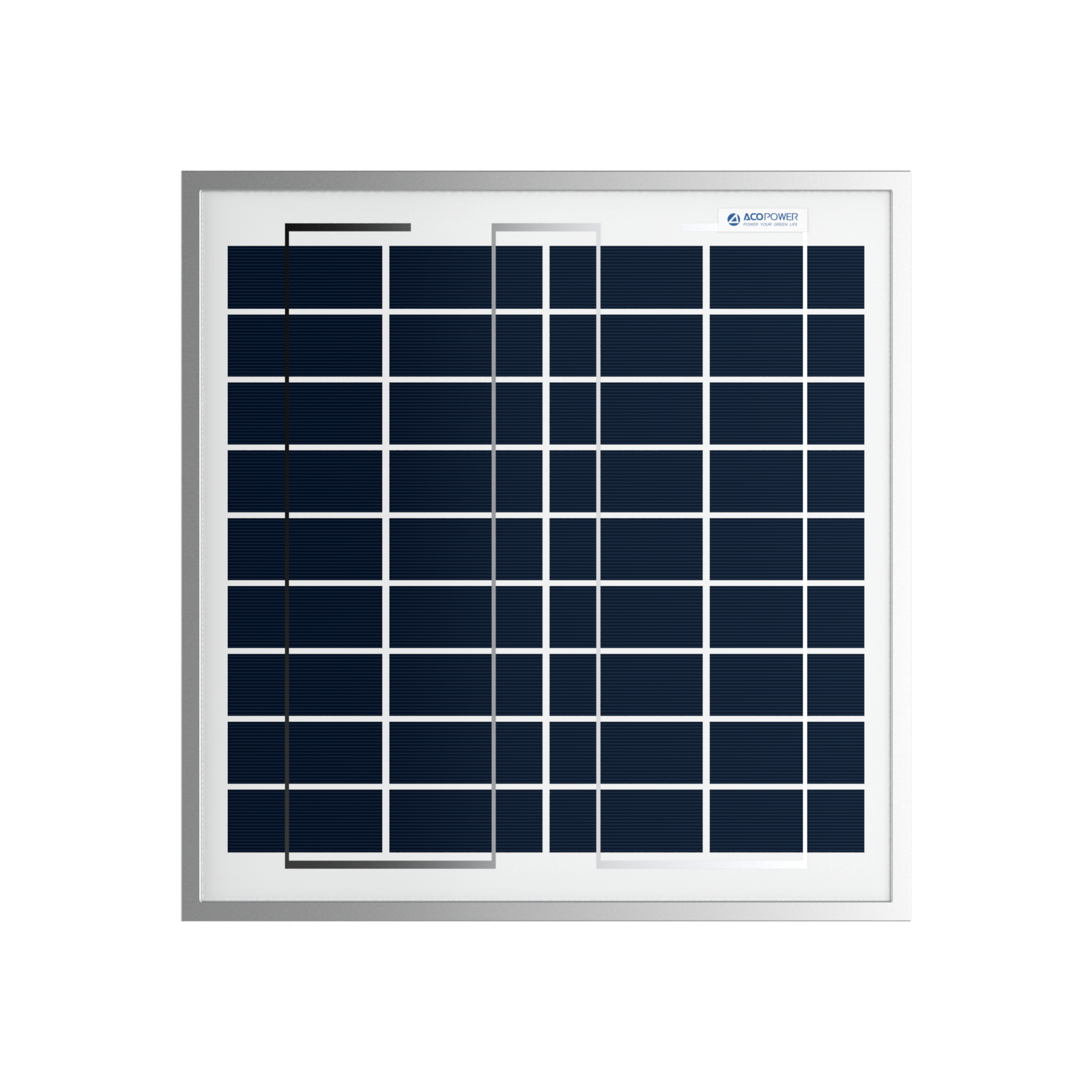

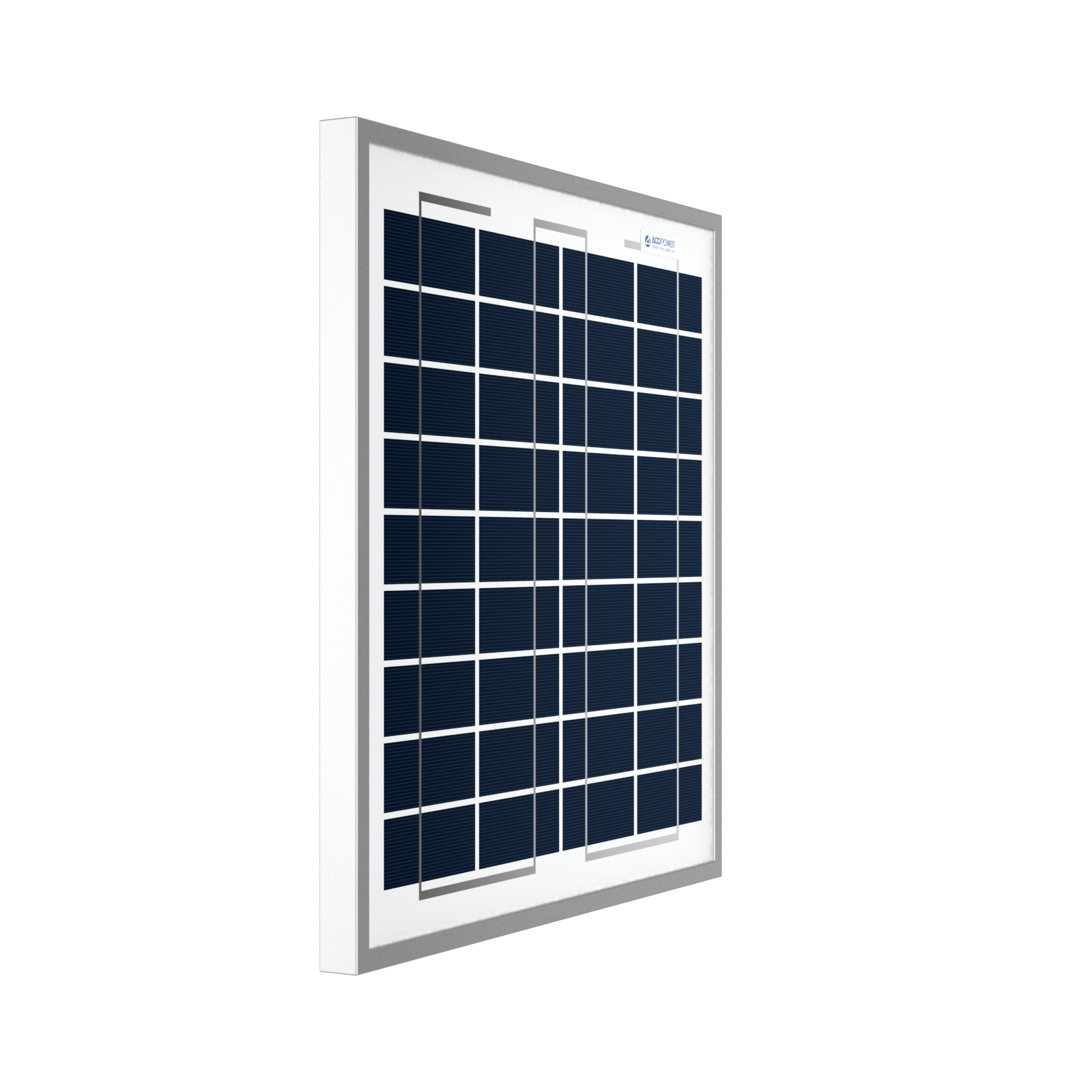

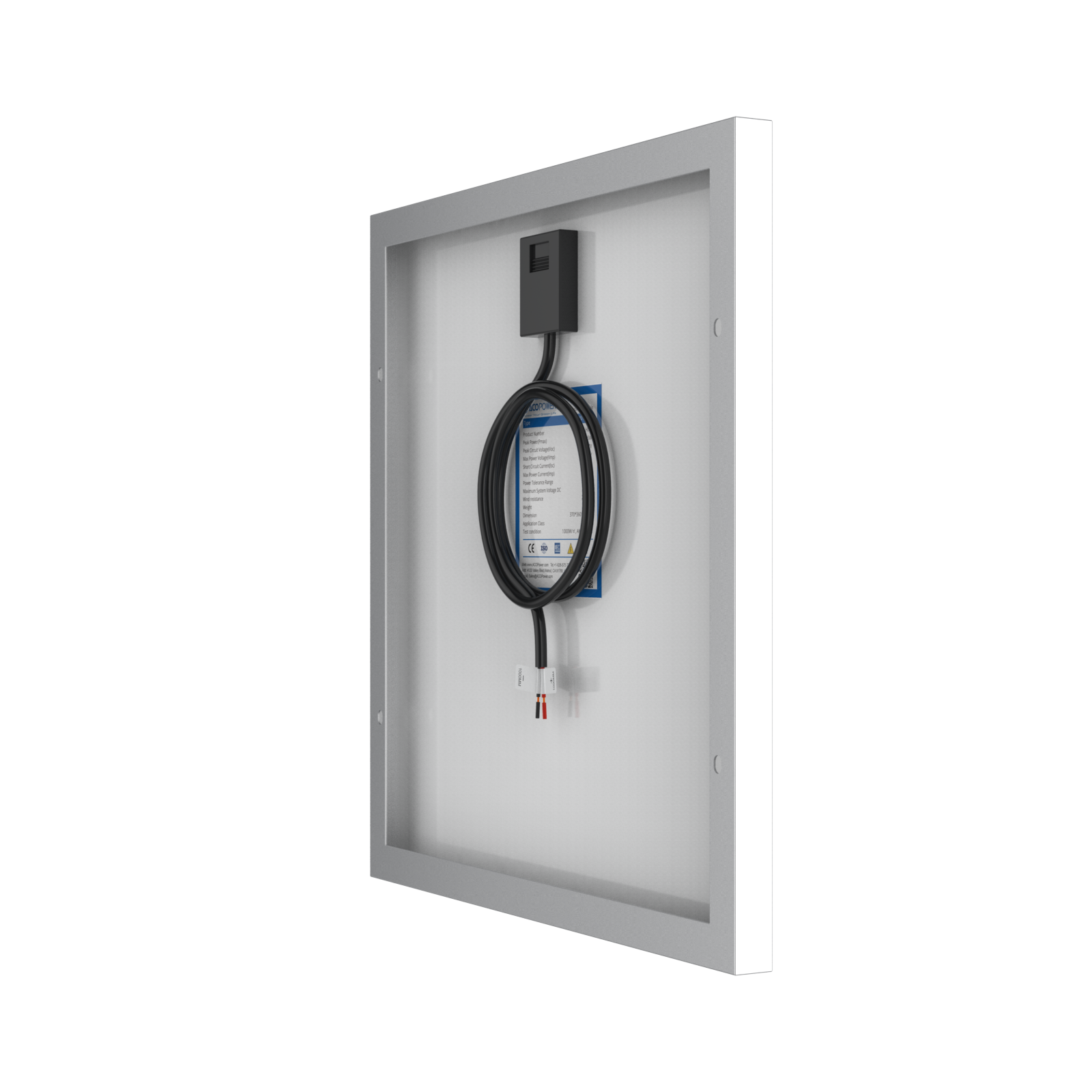

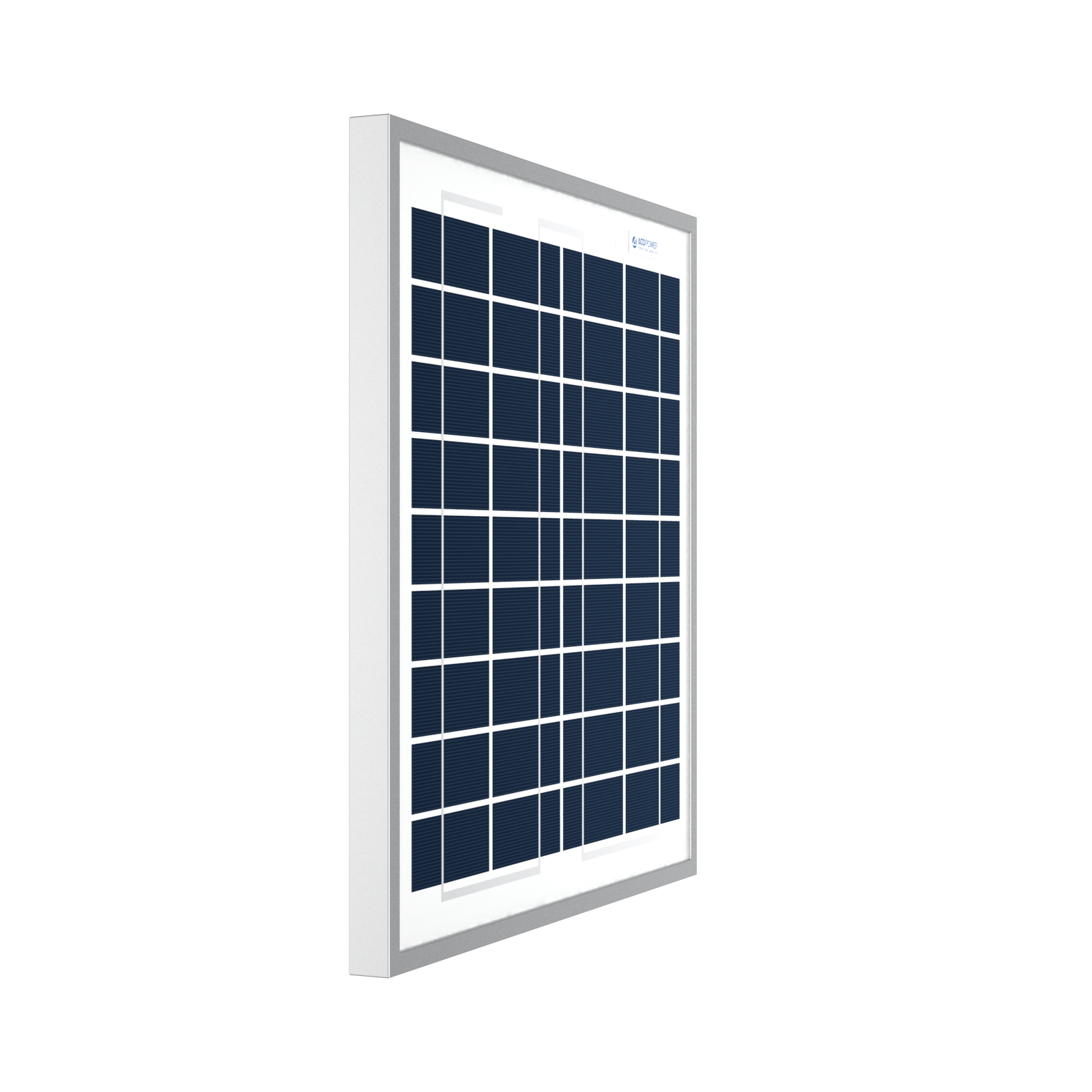

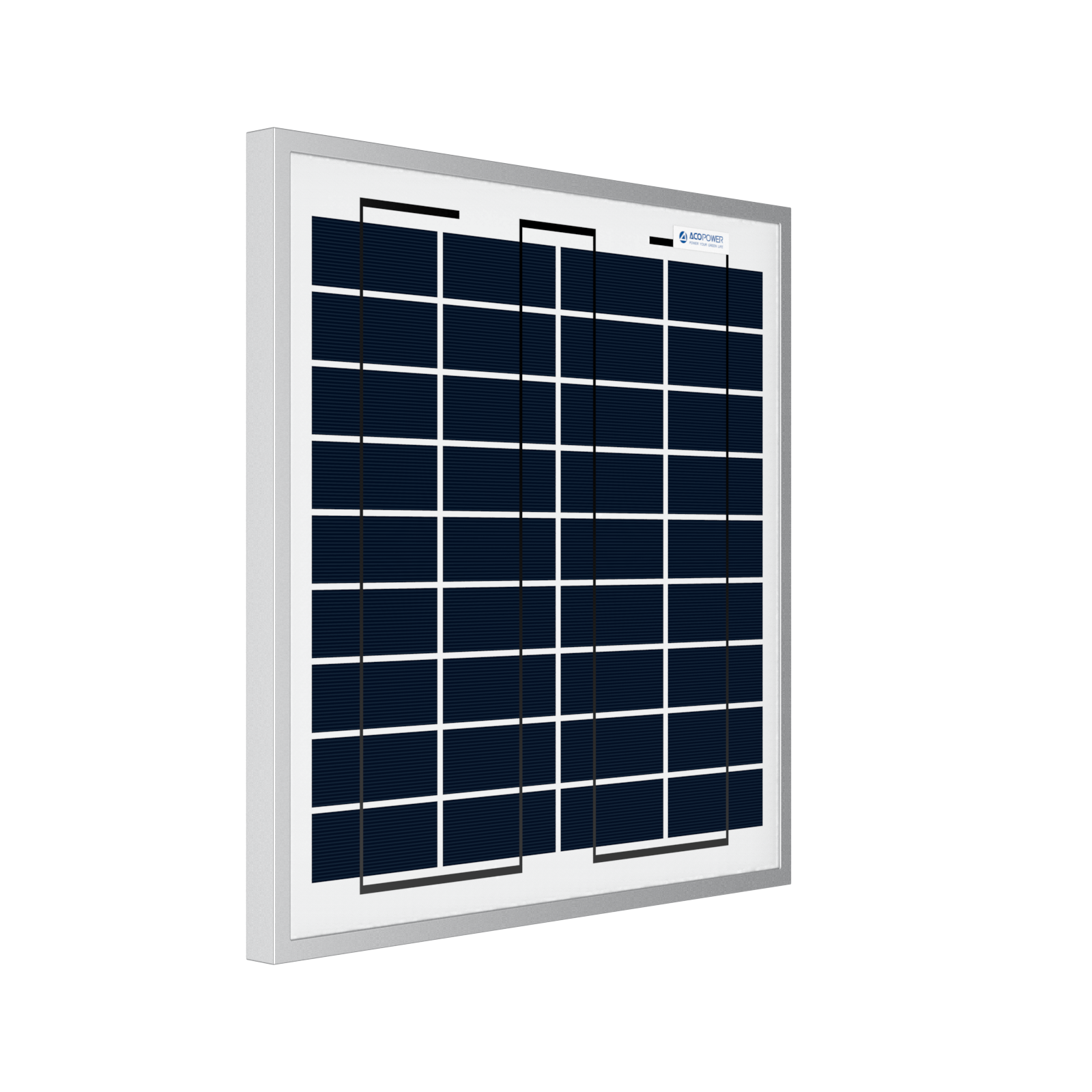

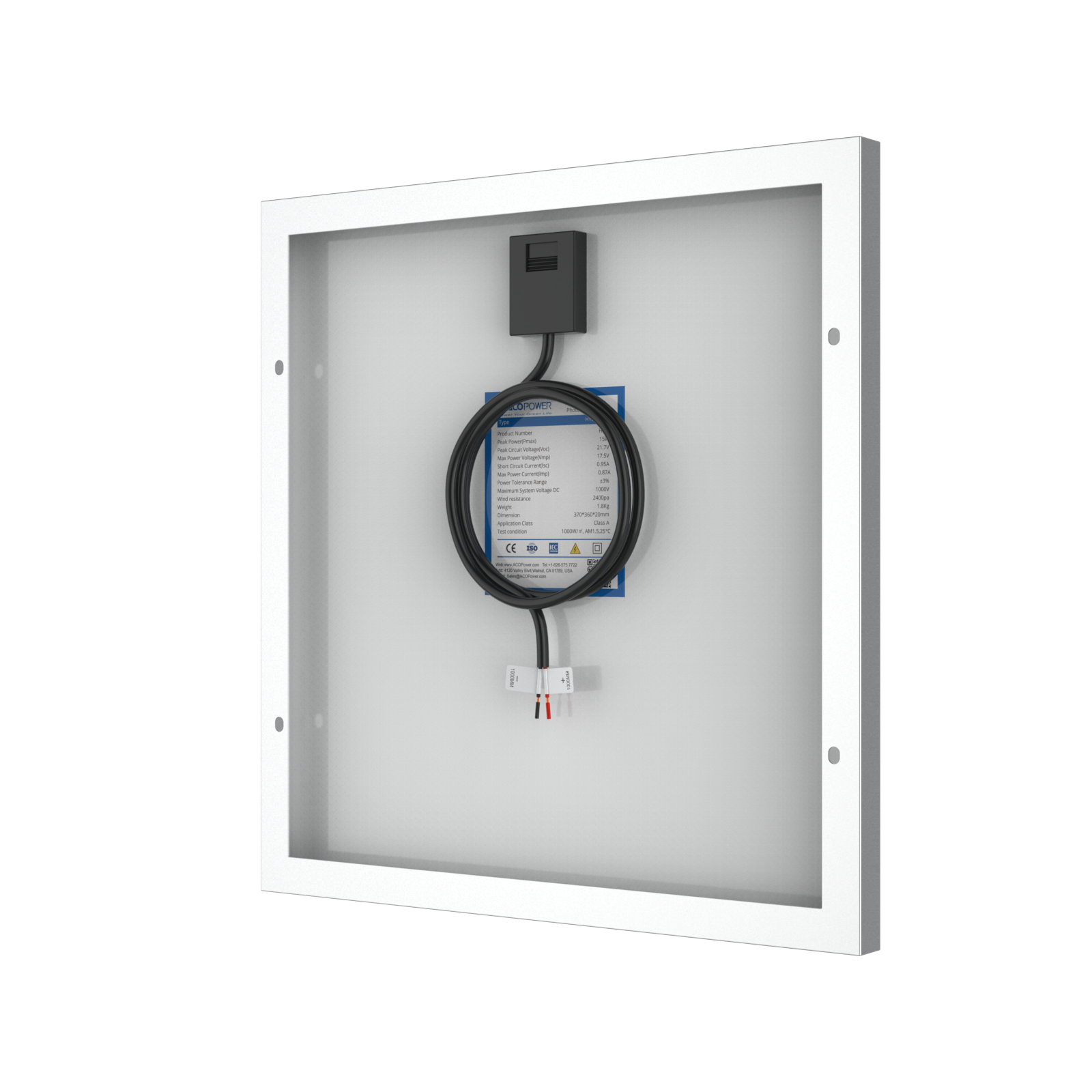

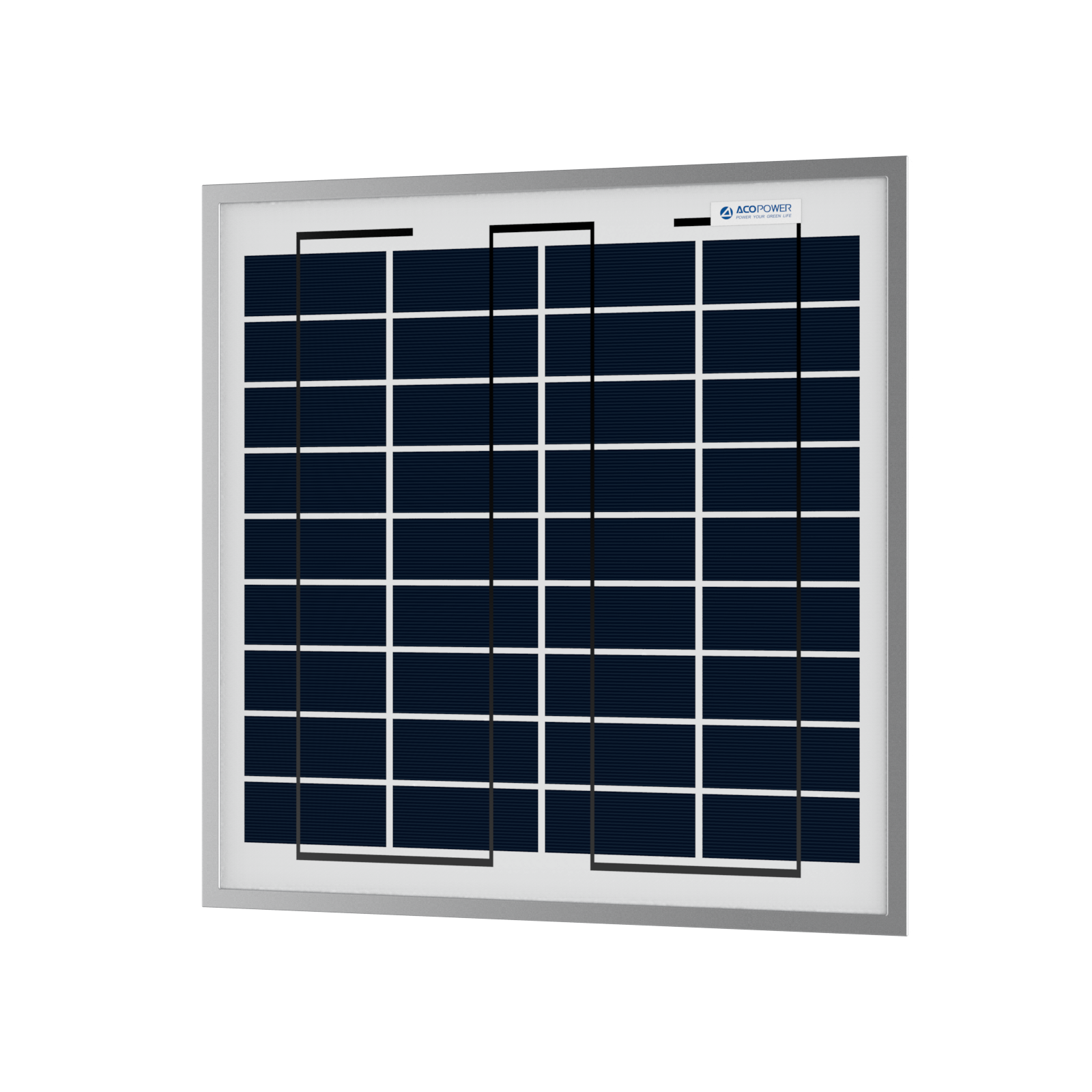

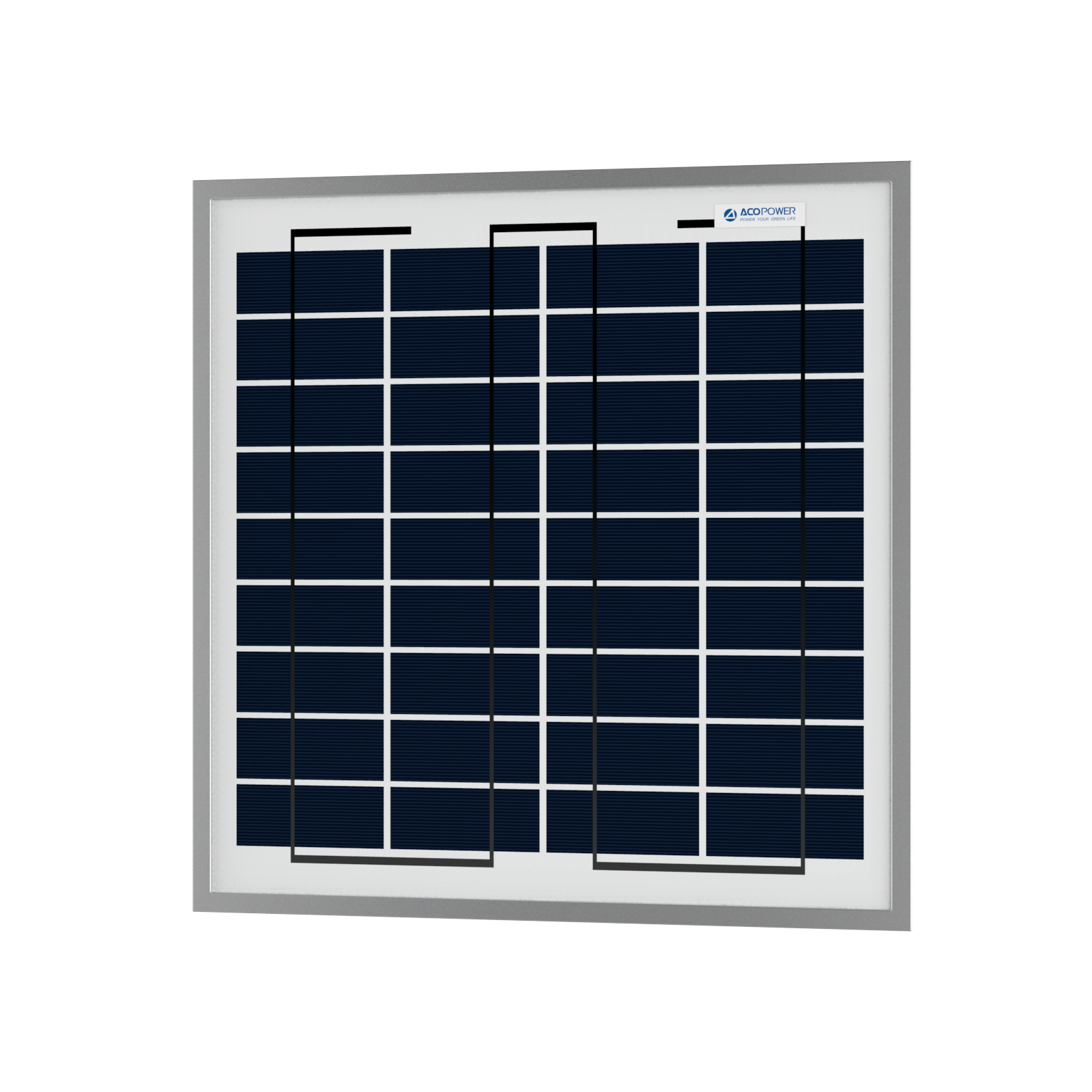

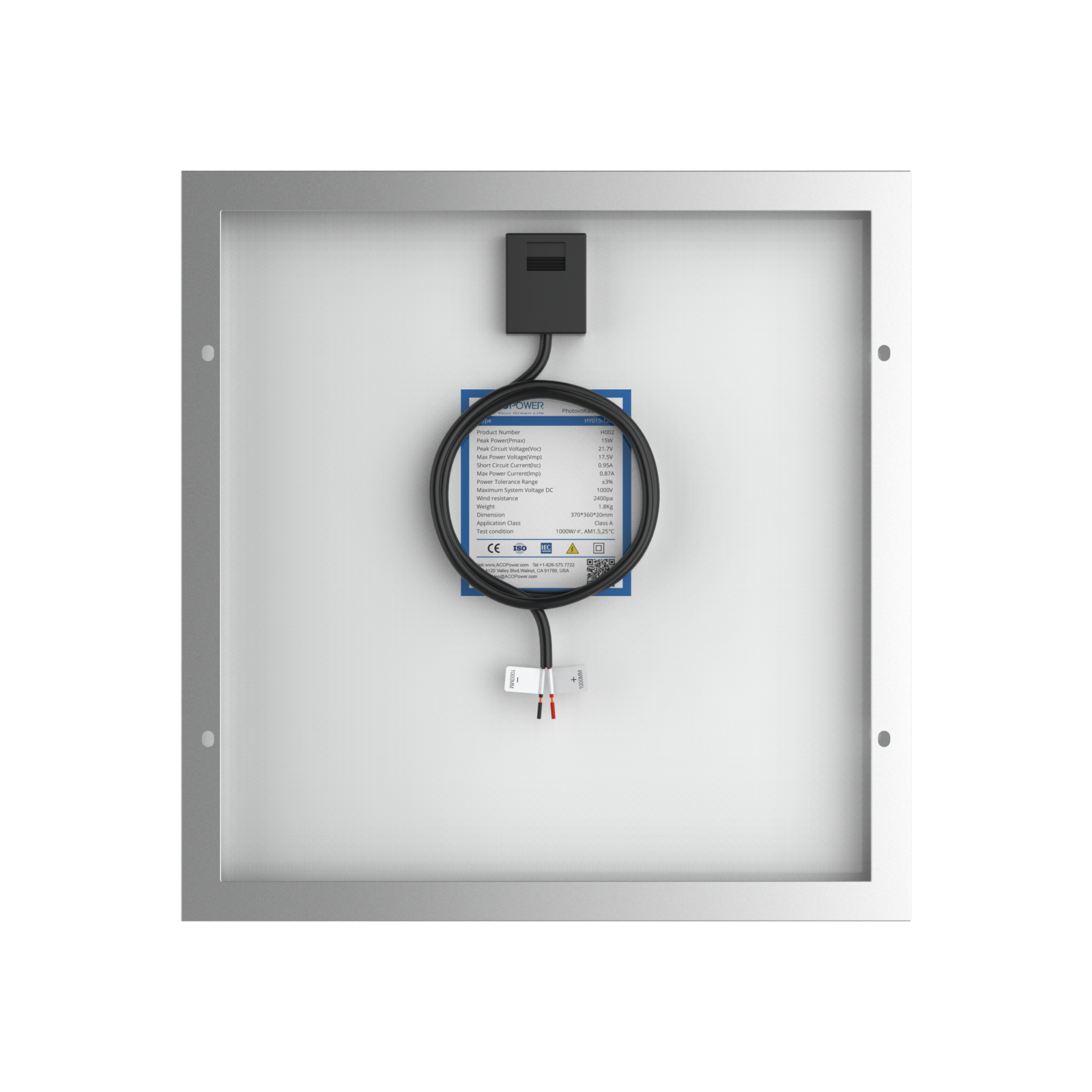

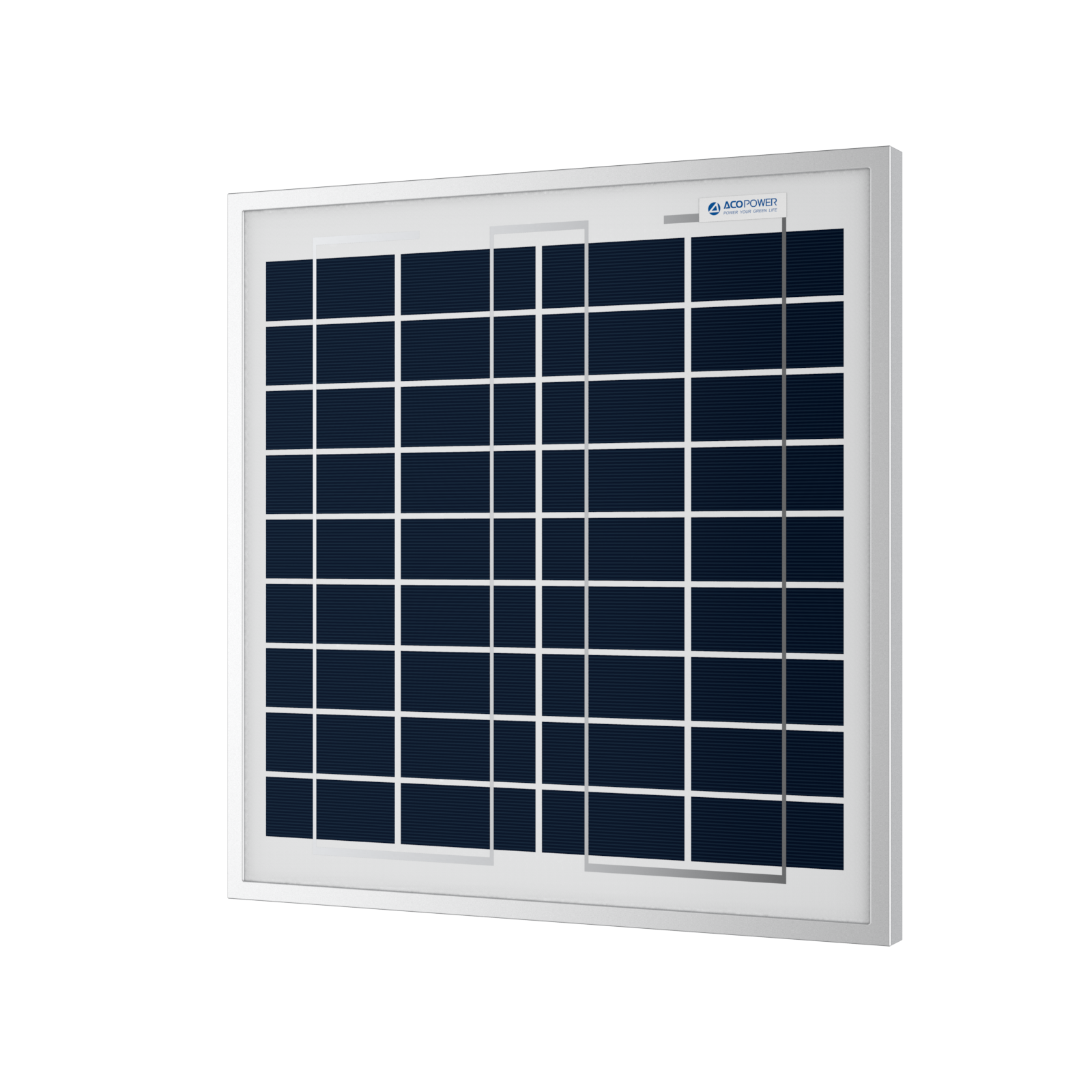

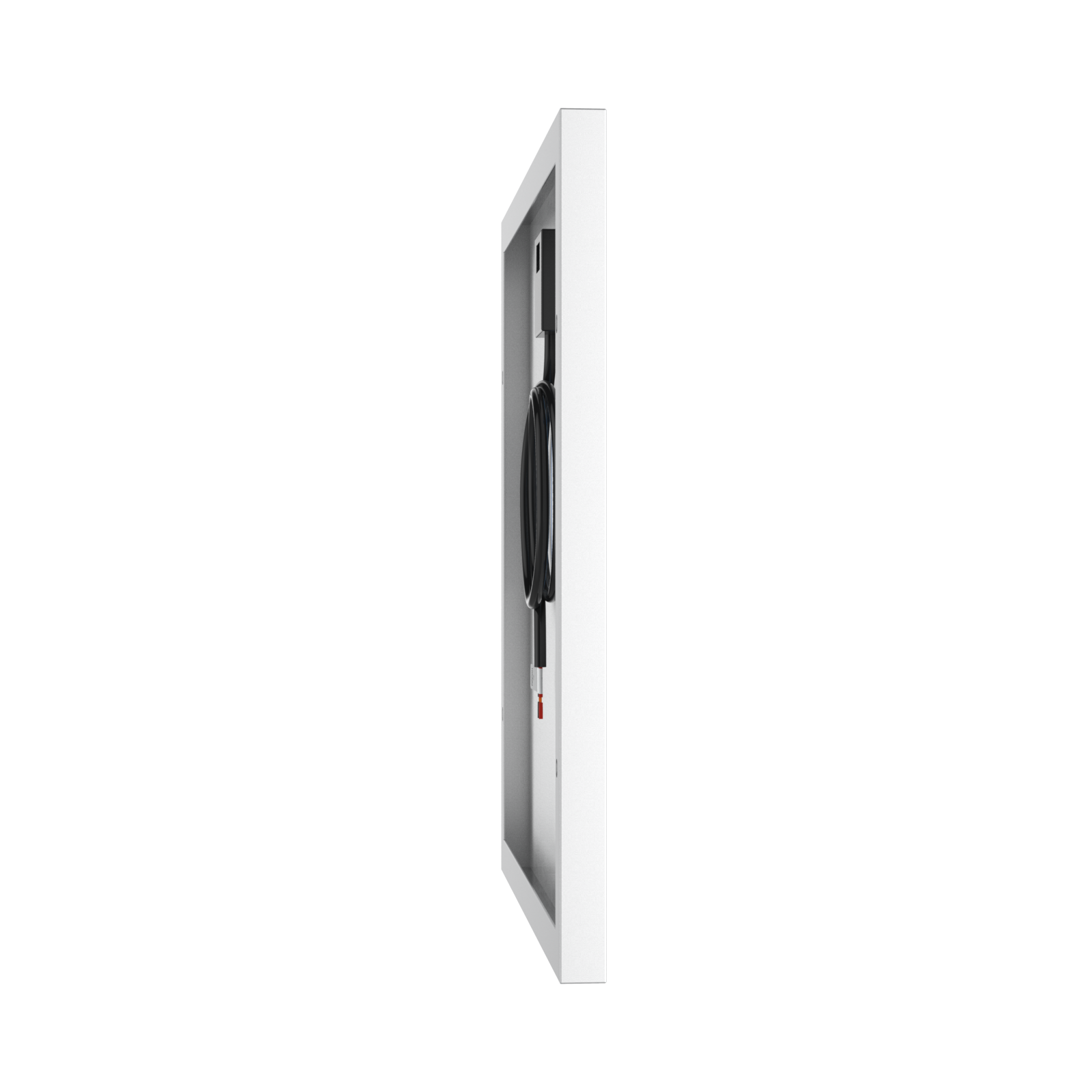

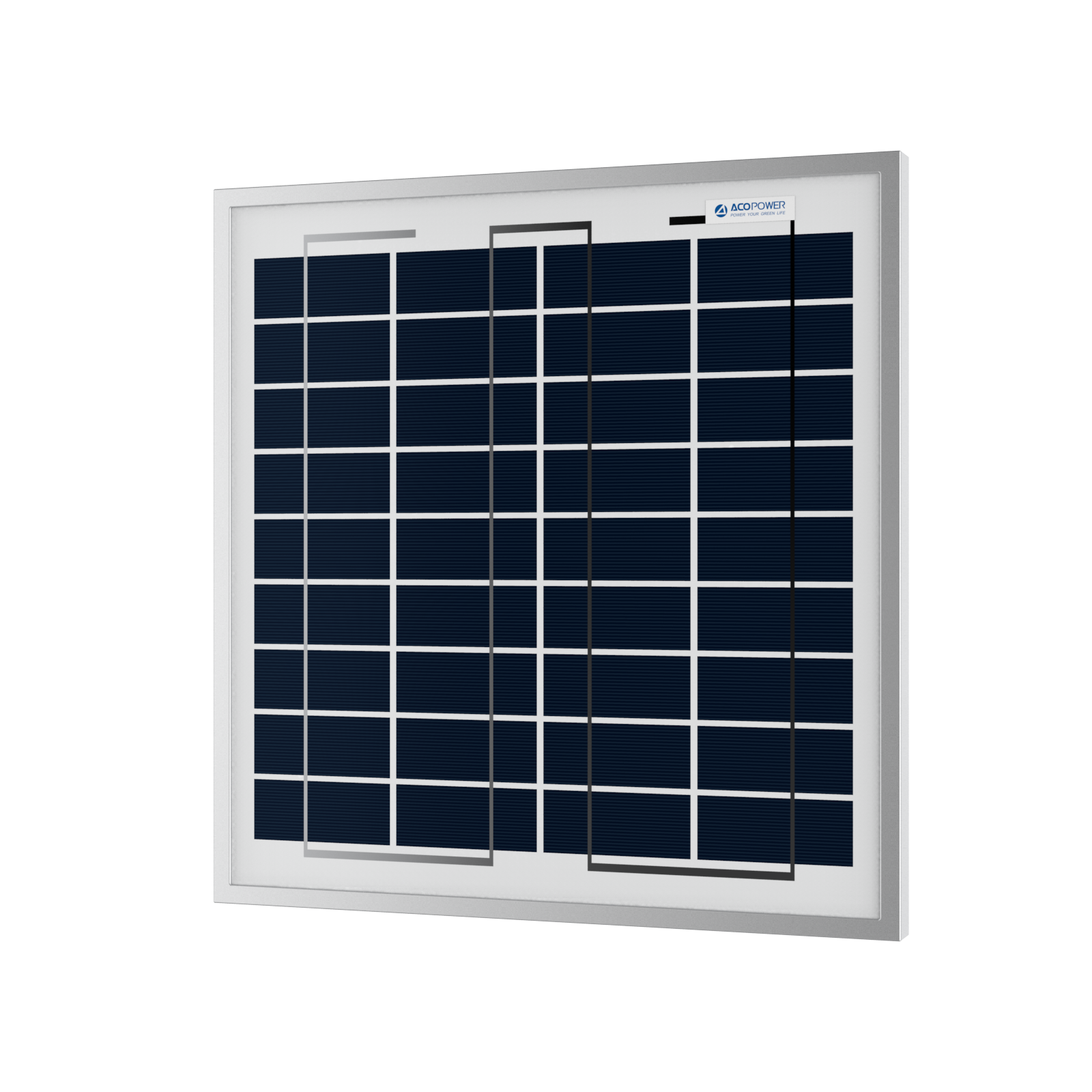

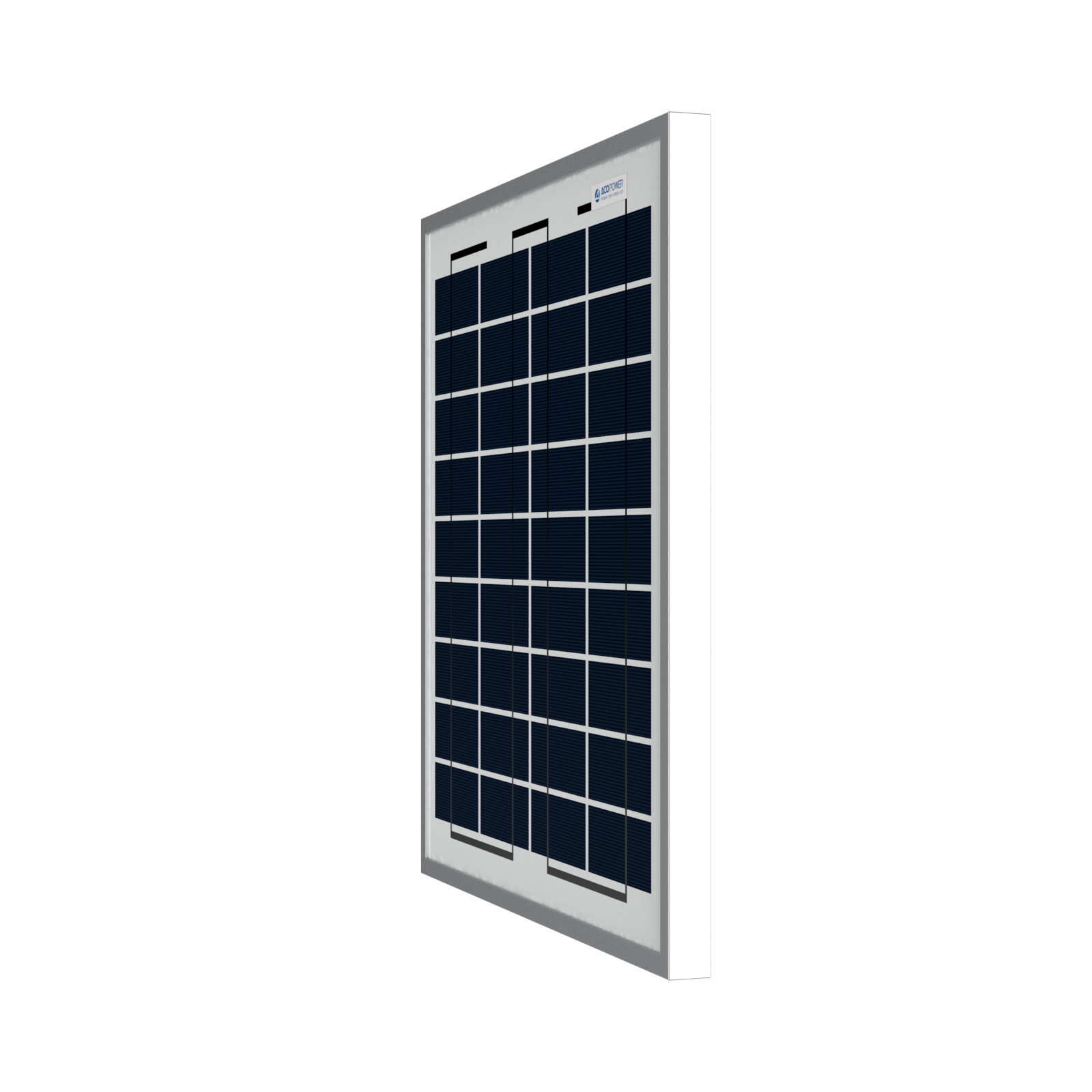

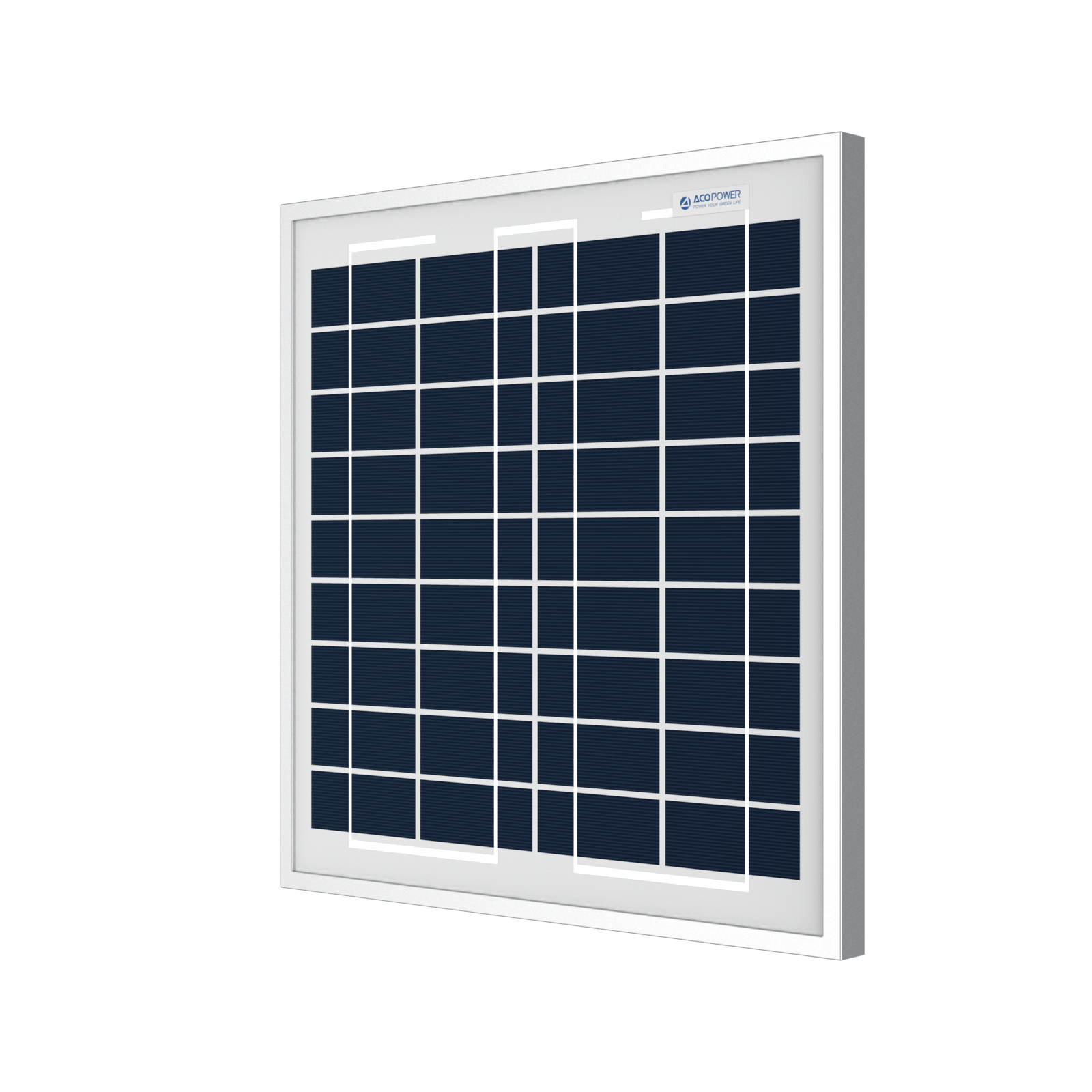

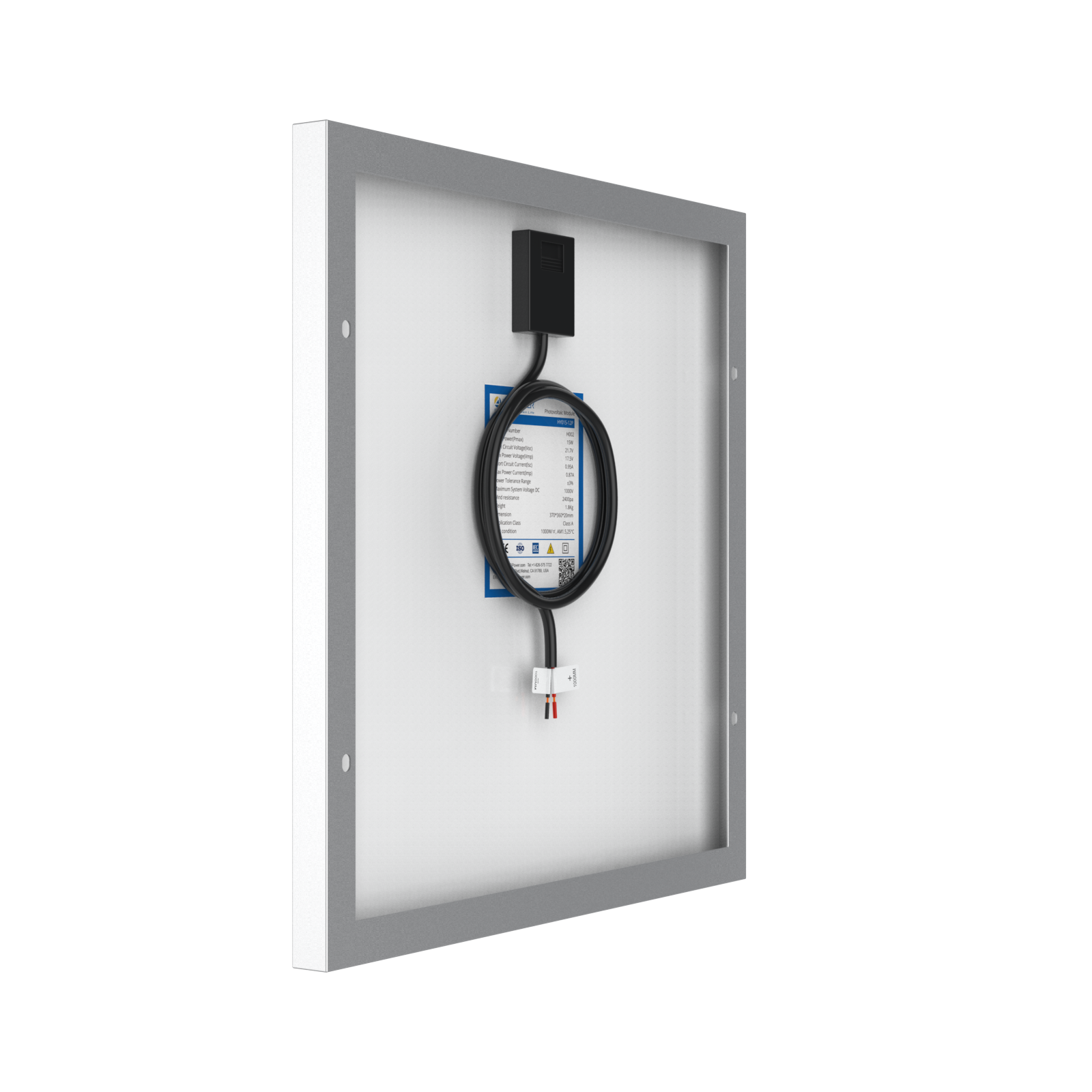

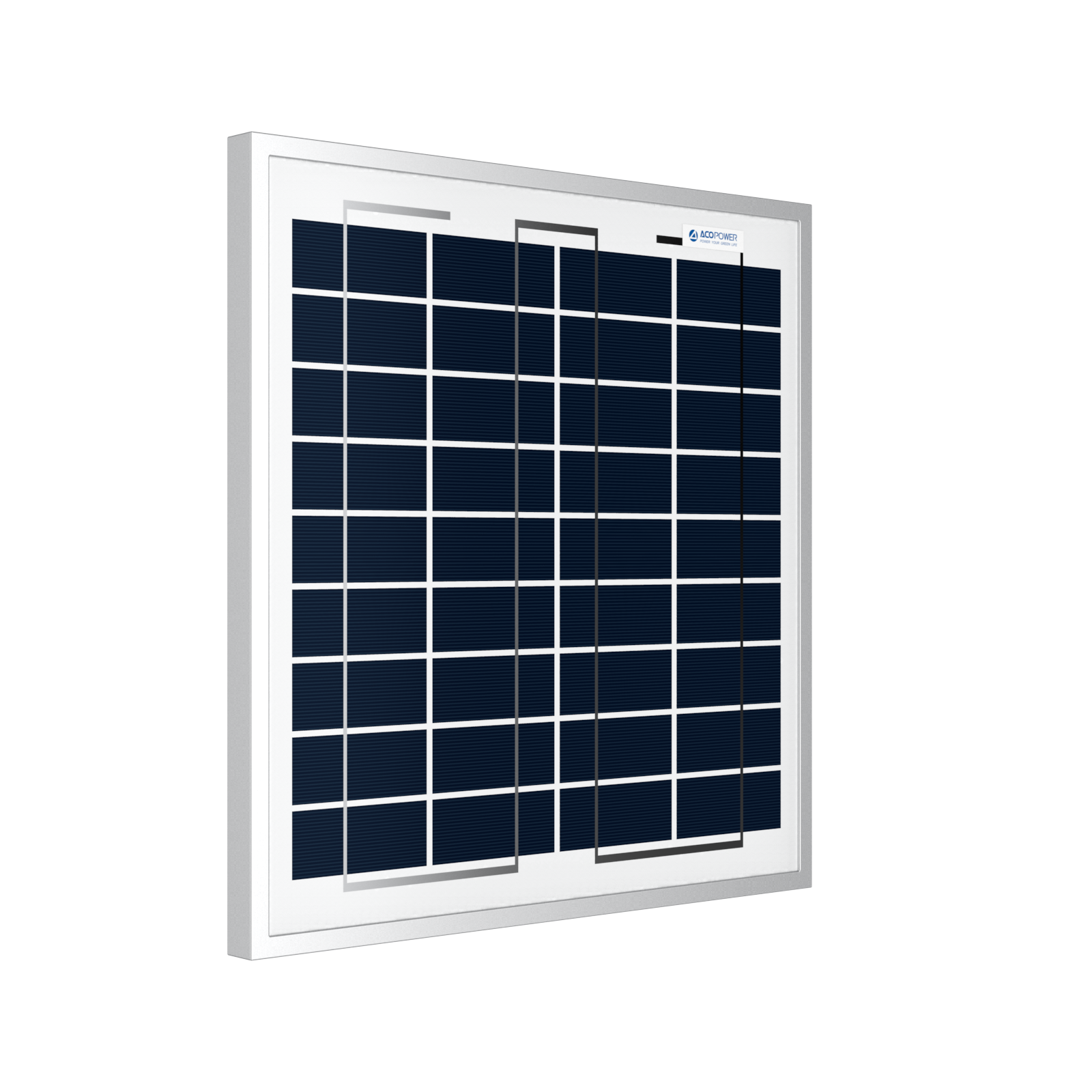

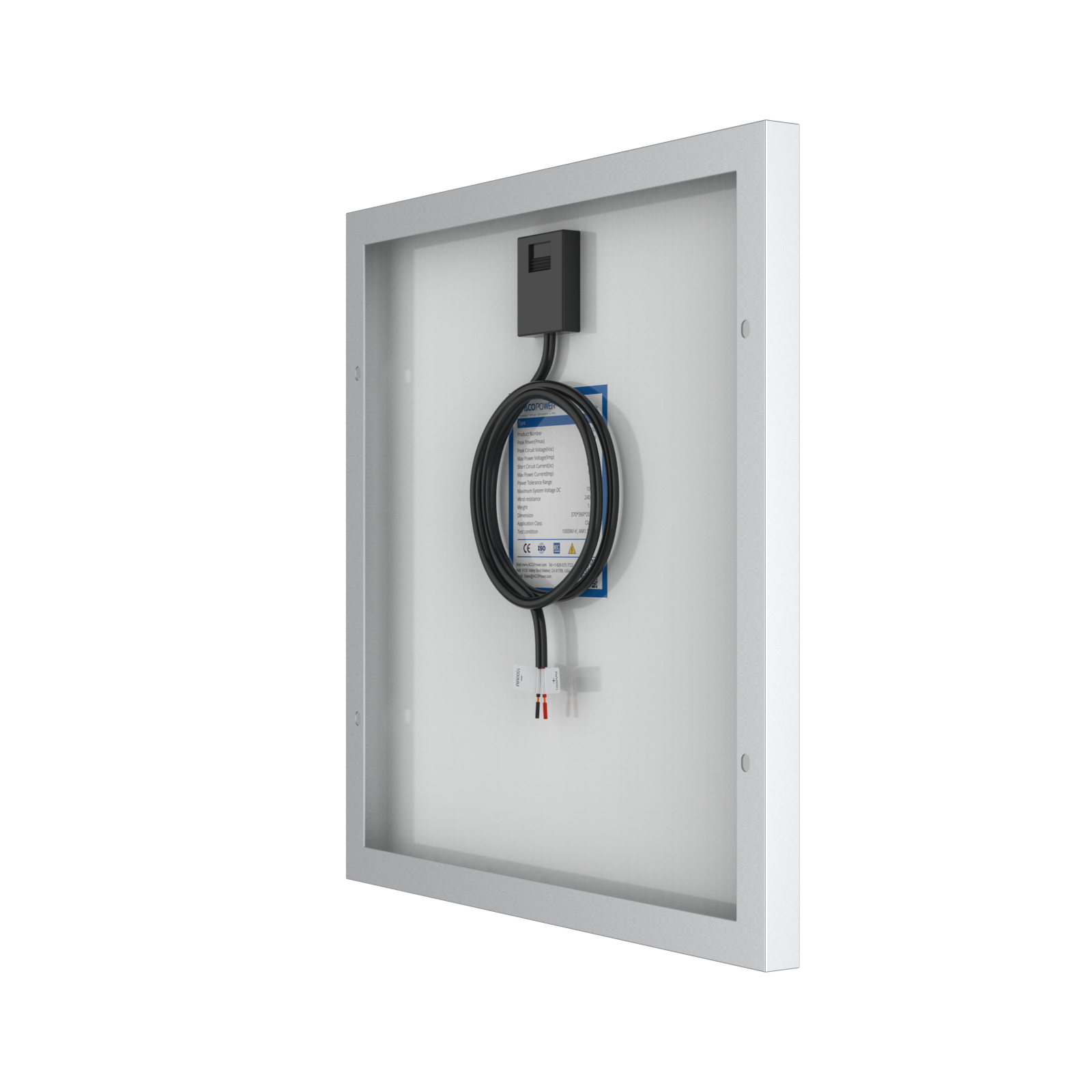

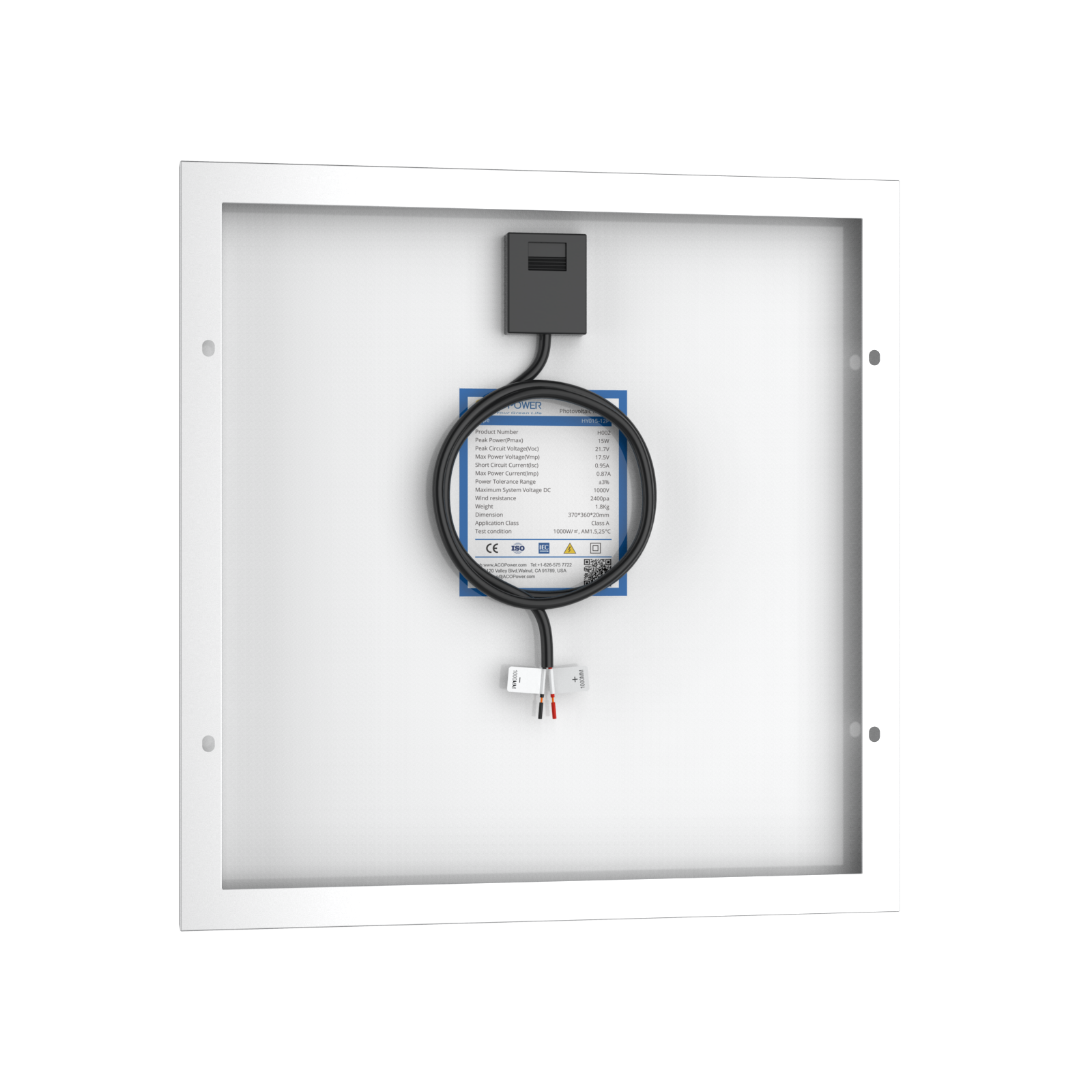

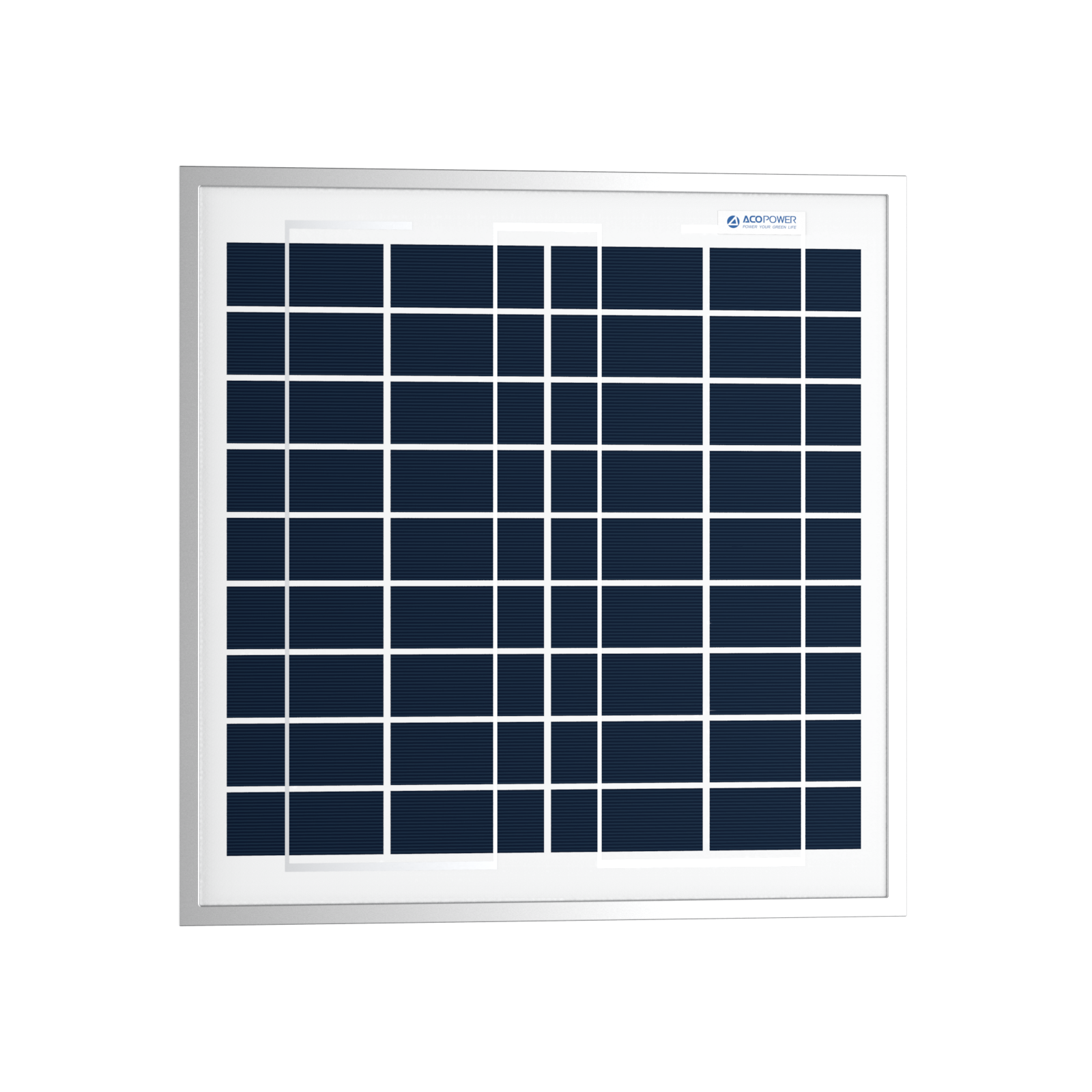

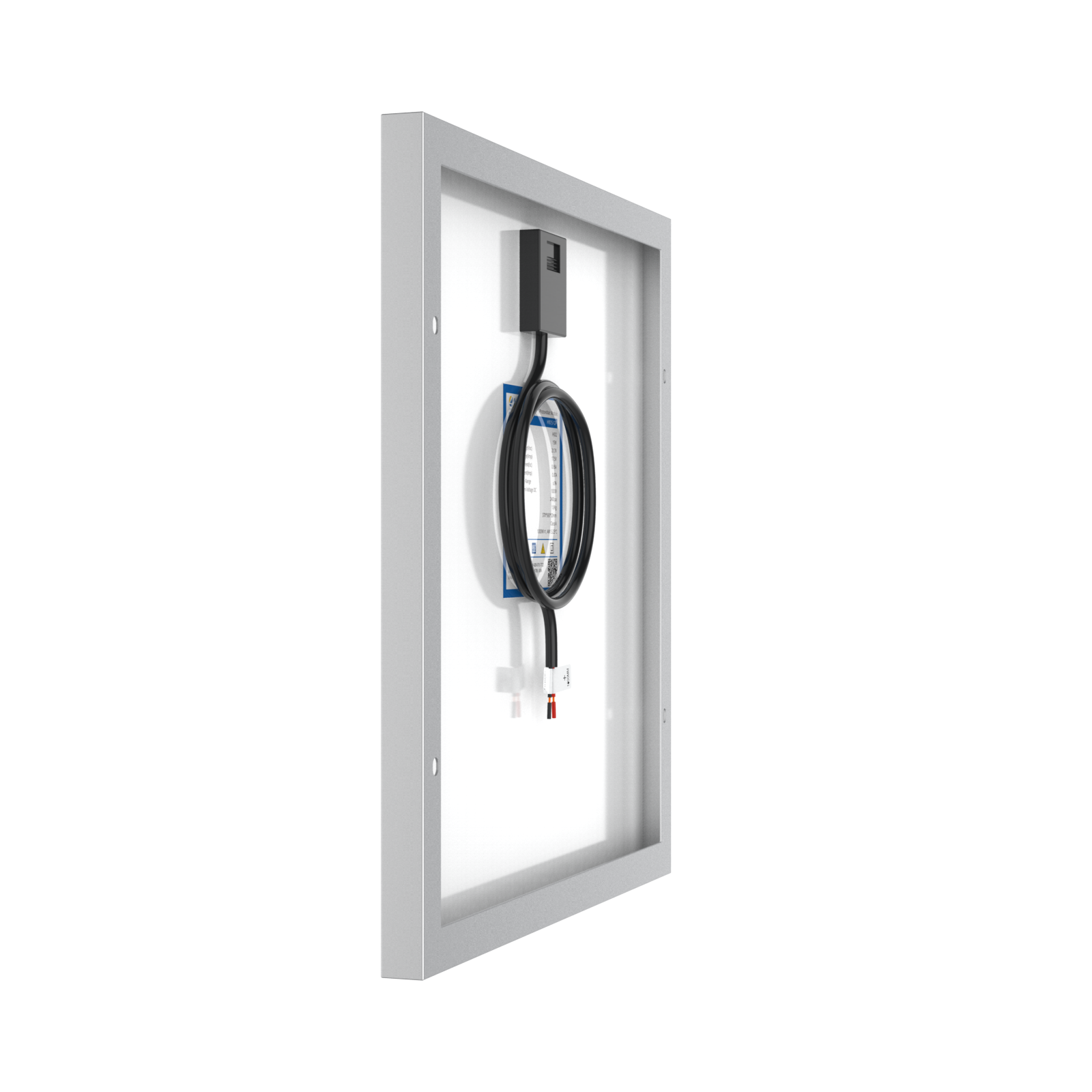

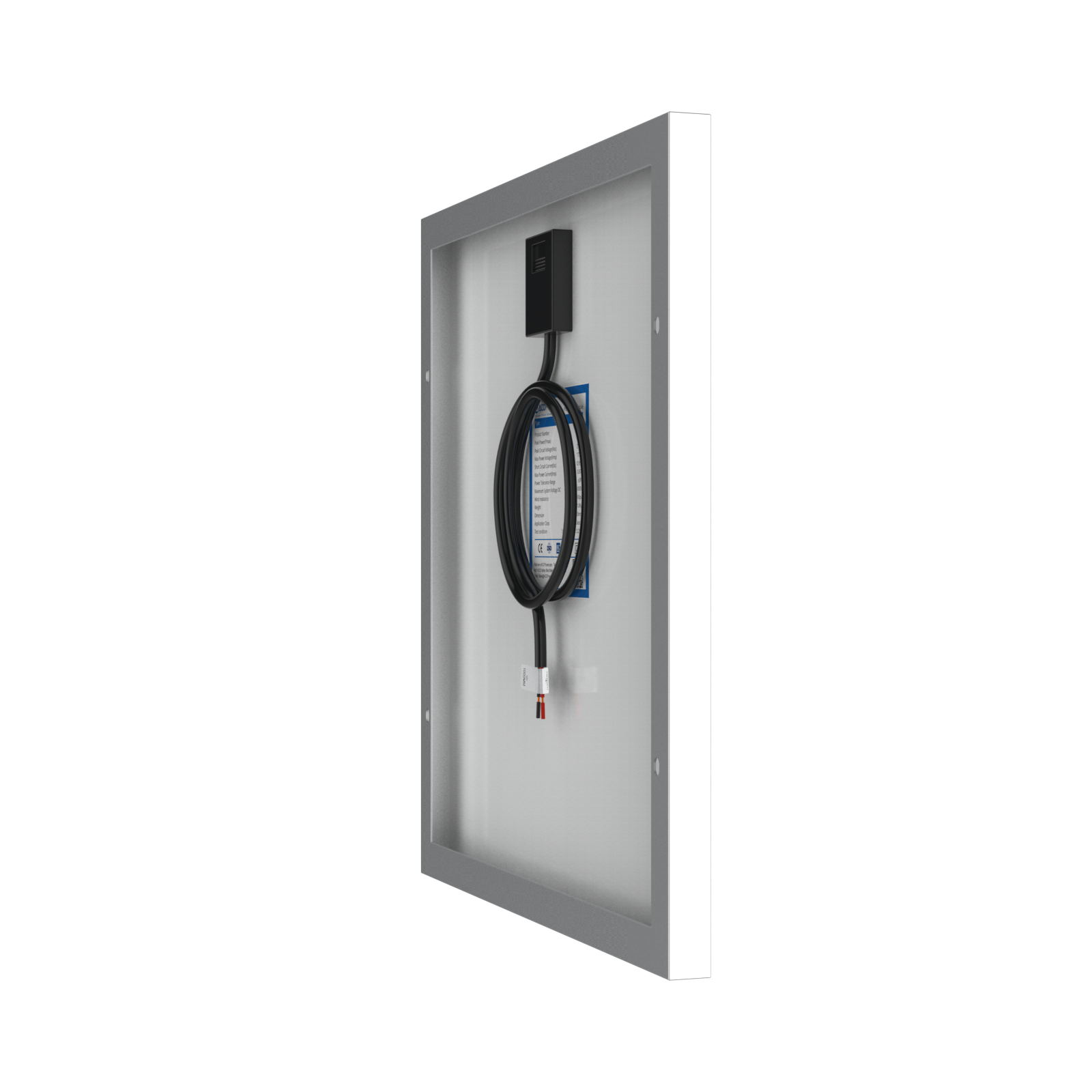

ACOPower 15W Polycrystalline Solar Panel for 12 Volt Battery Charging

Description

Key Features

• Boasting high module conversion efficiency the ACOPOWER 15w poly solar panel provides up to 15w of continuous solar power.

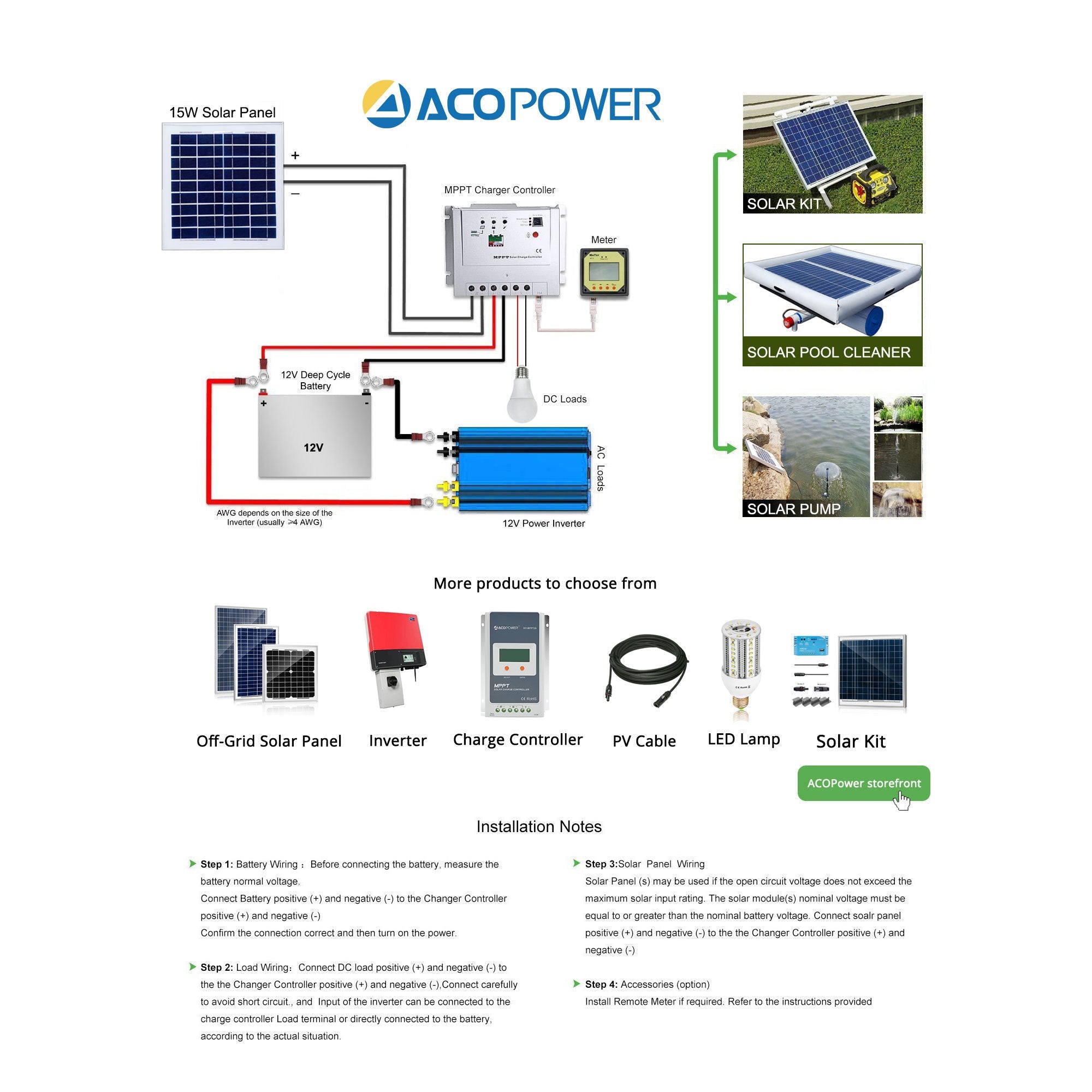

• A key component for off-grid solar panel charging systems using 12v/24v/36v/48v.
• Ideal for RV's, caravans, cars, boats, green house solar systems, outside fountains, outside lighting and, off-grid systems.
• Capable of withstanding high winds (2400pa) and snow loads (5400pa)

Electrical Characteristics

• Power Output                                       15W
• Open-Circuit Voltage (VOC)                22V
• Optimum Circuit Voltage (VMP)          17.7V
• Short-Circuit Current (LSC)                 0.91A
• Optimum Circuit Current (LMP)           0.85A
• Maximum Power at STC (Pmax)           15W
• Module Efficiency                                  10.42%
• Operating Temperature                         -40c to +85C
• Maximum System Voltage                      600V DC
• Power Tolerance                                       +/- 3%

Package Includes

• 1 x 15W Solar Panel
• 1 x User Manual
